Magnutom 5000
| c/n | : 06586146 (Fixed Table) |
| : 06586246 (Automatic X-table) | |
| : 06586346 (Automatic X- and Turntable) |

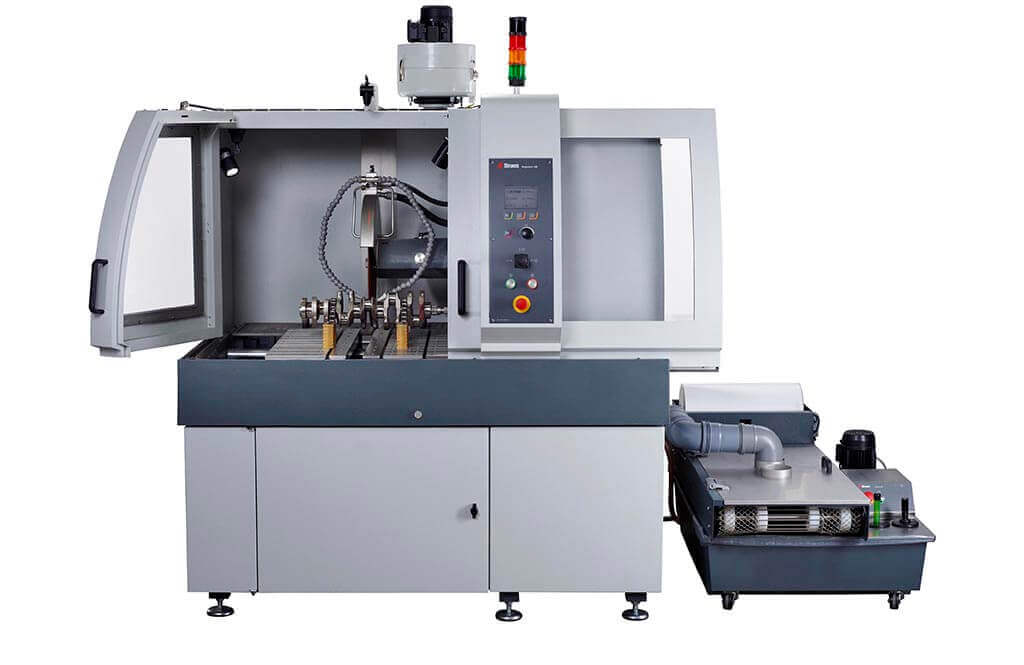

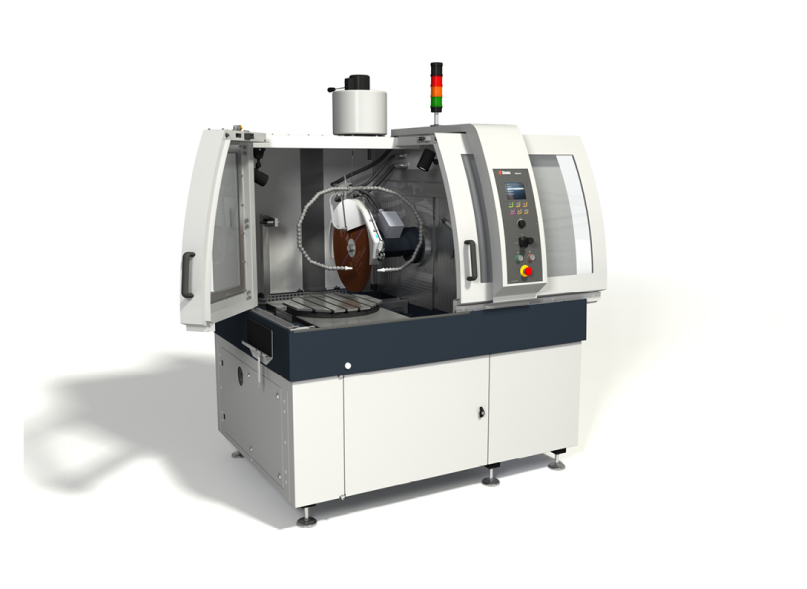

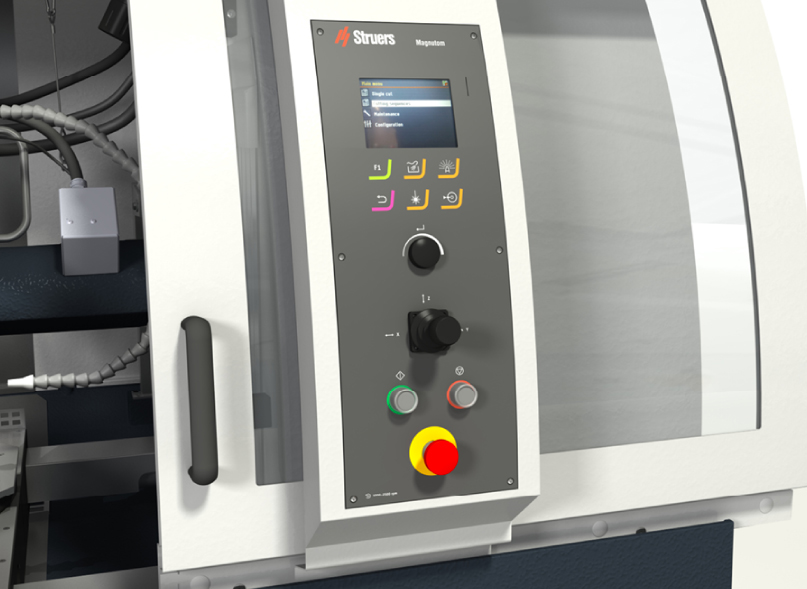

Automatic cut-off machine for Ø508 mm (20") cut-off wheel.
Cutting table with 12 mm T-slots.
Specifications
| Cut-off wheel size | Max. Dia x Thickness x Centre Hole | : 508 x 3.5 x 32 mm / 20 x 0.13 x 1.26" dia |
| Rotational speed | : 1000-2400 rpm | |
| Cutting capacity | : 190 mm dia / 7.4" dia | |
| : 190 x 254 mm or 7.4" x 10" | ||
| : 184 x 400 mm / 7.2" x 15.7" | ||
| : 114 x 618 mm / 4.5" x 24.3" | ||
| Cutting Motor | Cutting power (S1) | : 11 kW / 14.7 HP |
| Cutting power (S3) | : 16 kW / 21.5 HP | |
| Positioning & Feed | Positioning range (of cut-off wheel) | : Y = 395 mm / 15.5", Z = 214 mm / 8.43" |
| Cutting table | Fixed cutting table (YZ), Width x Depth | : 751 x 781 mm / 29.57 x 30.7" |
| X-table (XYZ), Width x Depth (Max.) | : 524 x 781 mm / 20.63 x 30.7" | |
| R-table (XYZR), Diameter | : 533 mm / 21.0" | |
| X-table stroke range | : 370 mm / 14.6" | |
| T-slots, bi-directional | : 12 mm / 0.48" | |
| Dimensions | Width | : 1758 mm / 5' 9" |
| Depth | : 1463 mm / 4' 9" | |
| Height | : 1882 mm / 6' 2" | |
| Weight | : 2400 kg / 5291 lbs | |
| Cutting Chamber | Width | : 1000 mm / 3' 3" |
| Depth | : 1206 mm / 3' 11" | |
| Height | : 918 mm / 3' 0" |
