Struers Metallography

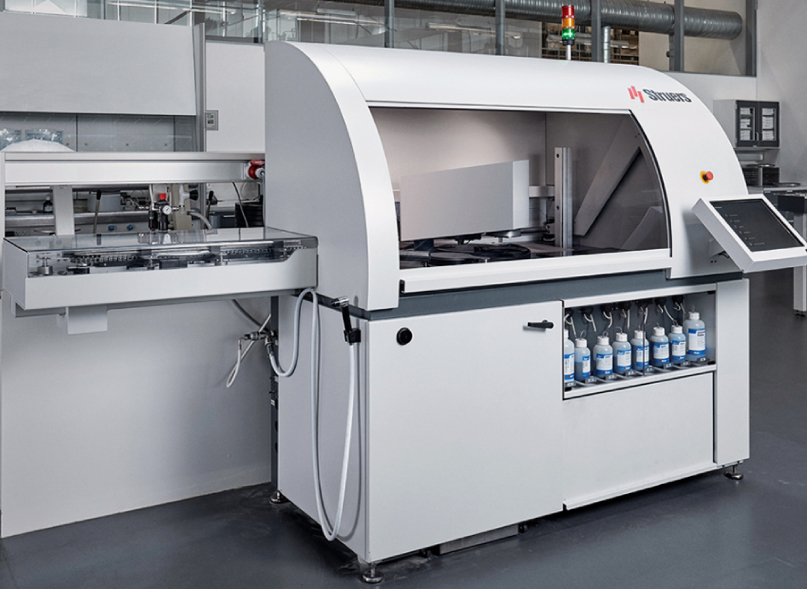

MAPS
With 1 plane grinding station and 1 fine grinding/polishing station (150/300 rpm). With recirculation cooling unit (06108046), 1 Bottle Unit, 1 Dosing System with 3 DP-pumps (06107600), Stock removal unit (06103000) and disc cooling. With built-in PC and touch-screen operation.

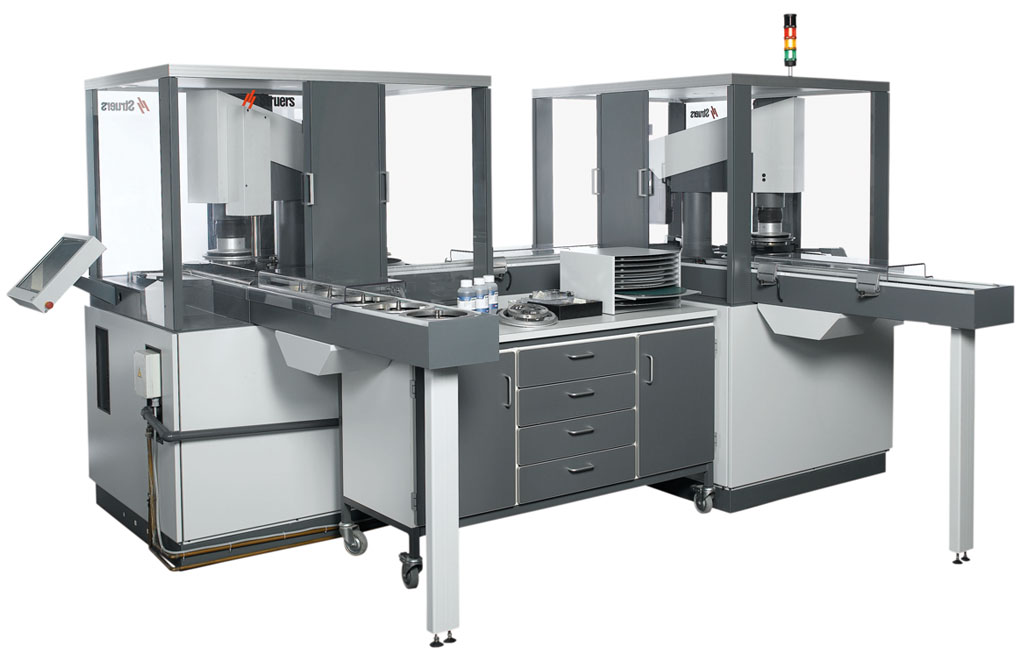

Hexamatic
Fully automatic preparation machine with one plane grinding station and one fine grinding/polishing station with eight interchangeable discs.
AbraPlan
Advanced plane grinding semi-automatic machine for grinding of specimens in specimen holders up to 200 mm/8” dia. An automatic diamond dresser with automatic surface detection, a removal rate sensor and a transparent safety cover included. Recirculation cooling tank, pump and filter, grinding stones and specimen holders are ordered separately

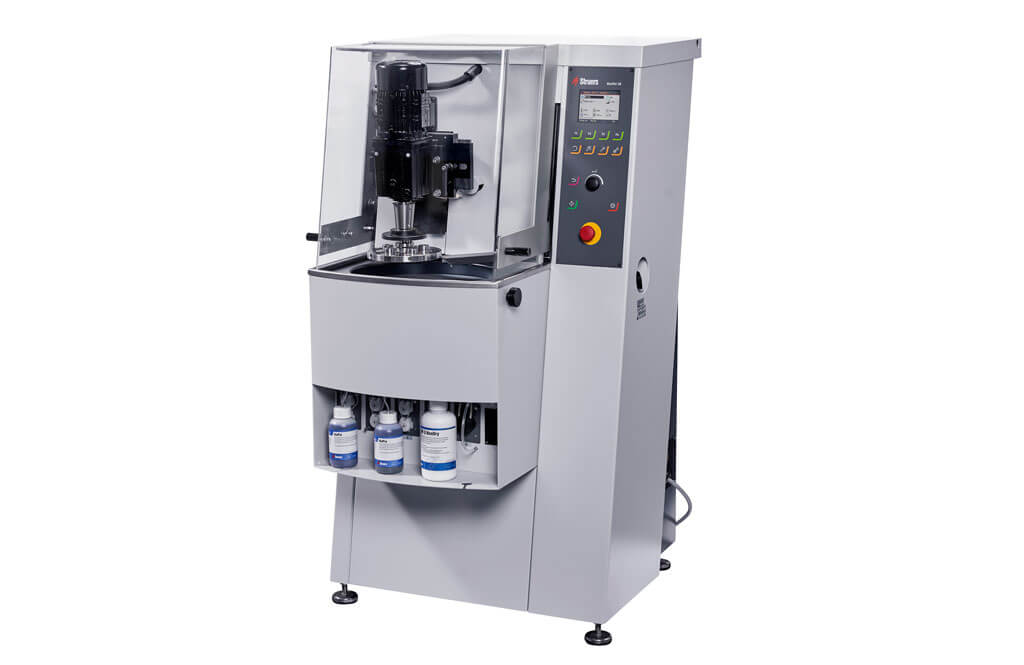

AbraPol
Advanced semi-automatic machine for grinding and polishing of specimens in specimen holders up to 200 mm/8” dia. Removal rate sensor and transparent safety cover included. Suspension/lubricant and oxide suspension pump units, recirculation cooling tank, pump and filter, grinding/polishing discs and specimen holders are available separately.
Tegramin
Automatic, microprocessor-controlled machine for grinding and polishing of specimens on 200 mm MD-Disc with cone. Dosing modules, MD-Disc with cone and specimen mover plates are ordered separately

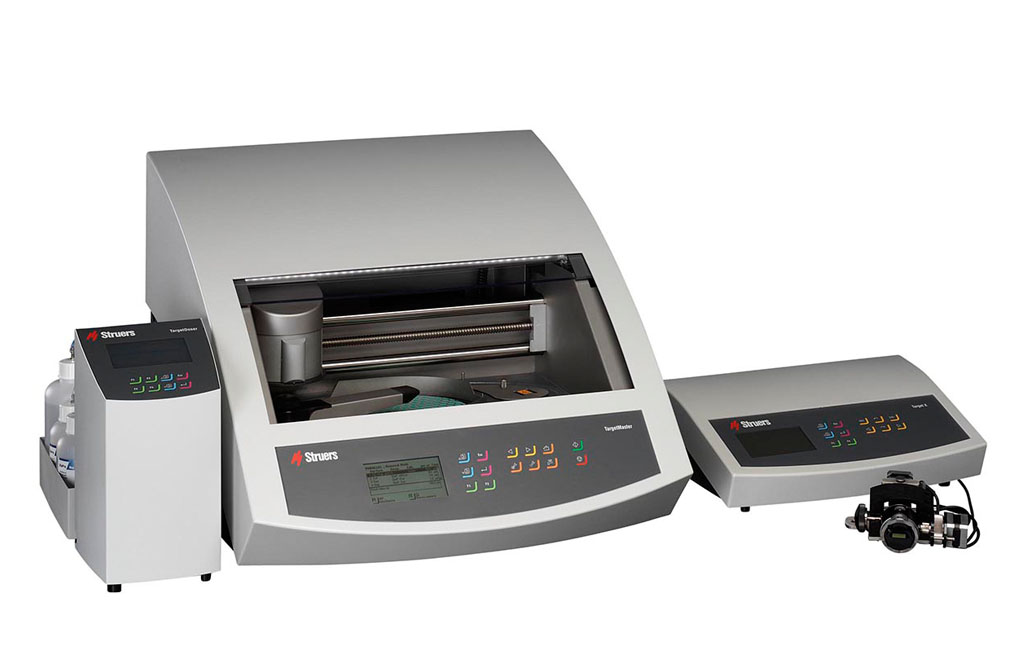

TargetSystem
200 mm (8") micropolisher for automatic target preparation. Specimen holder for 30 mm dia. specimens (05756916) and 200 mm (8") MD-Disc (02426920) included. Dosing system (05756904) is ordered separately

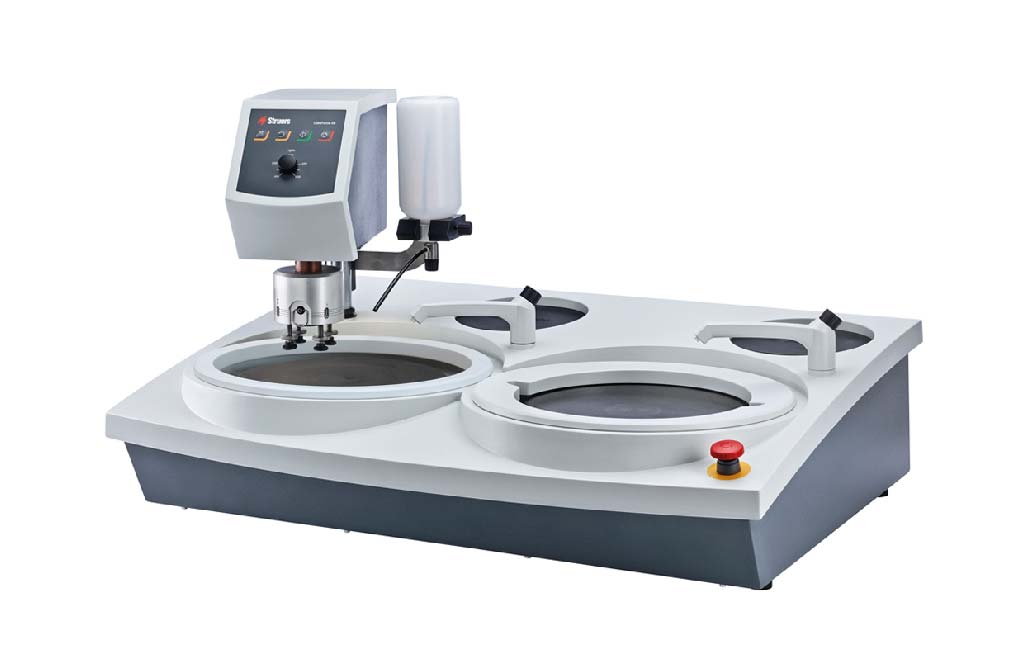

LaboSystem
Semi-automatic specimen mover for preparation of 1-4 specimens. For use with LaboPol-20/-30-/60. Specimen mover plates and dosing unit (LaboDoser-10, 06376901) are ordered separately

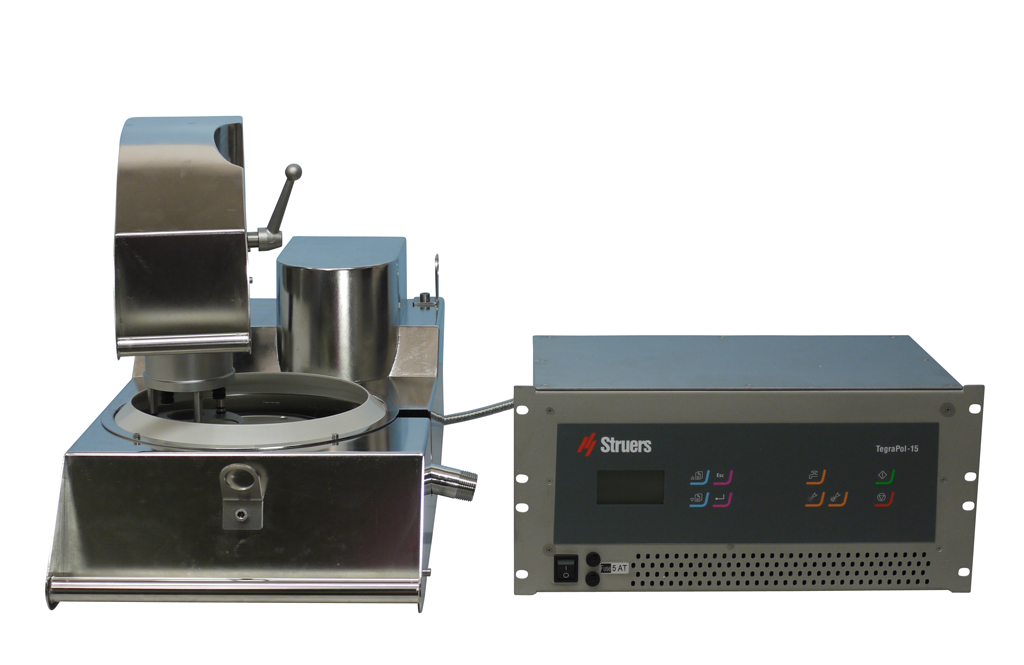

TegraPol Hot Cell
Grinding/polishing machine with variable speed (40-600 rpm in steps of 10 rpm). For disc 200 mm (8") dia. 370 W motor. Complete with control box with electric parts and controls for rack mounting outside the hot cell. Discs are ordered separately. Length of supply cable is 8 m; other lengths can be delivered on request
