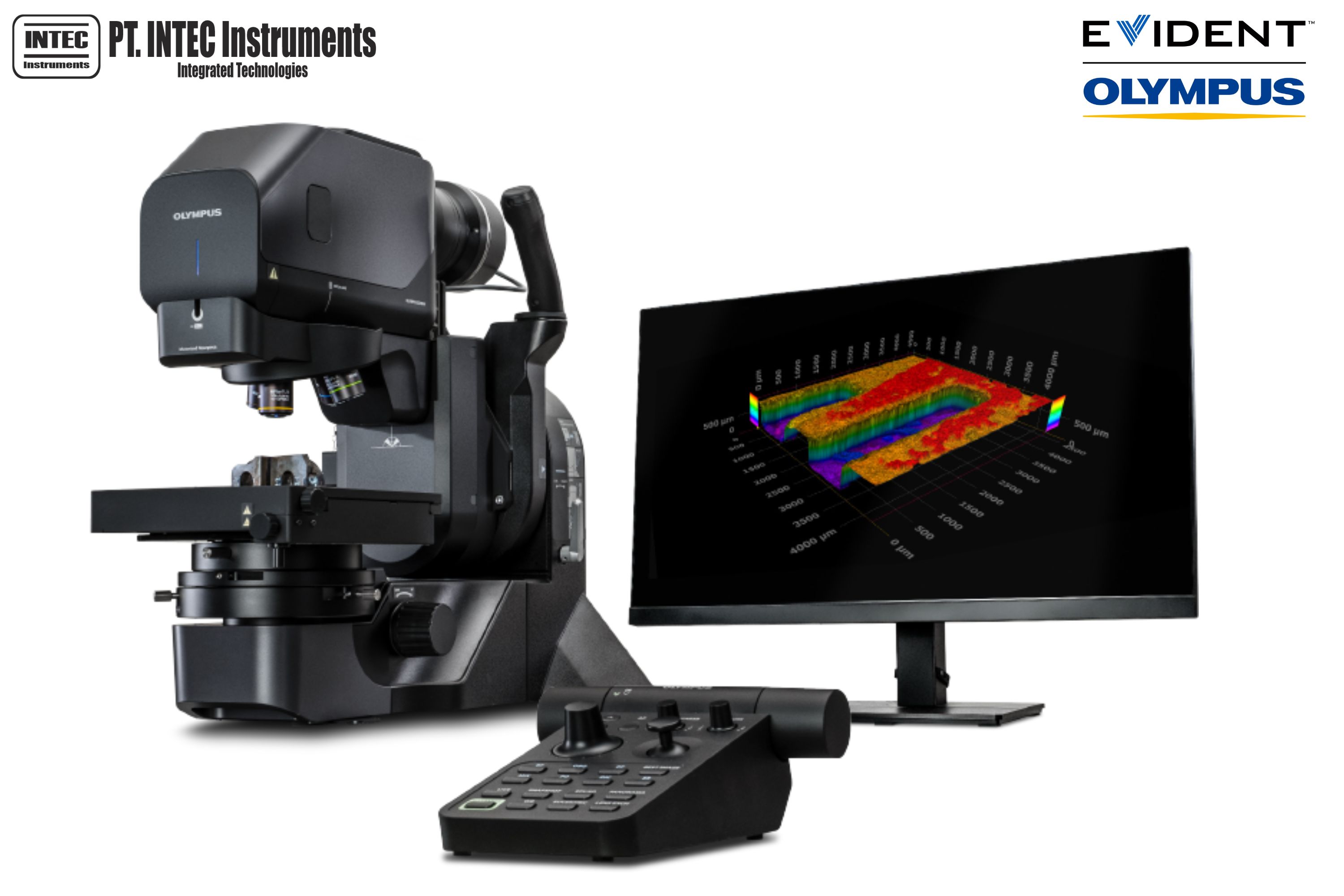

DSX2000
| DSX2000 Specification: | |||||
| Head | |||||
| Optical System | Optical system | : Telecentric optical system | |||
| Optical zoom ratio | : From 1X - 10X | ||||
| Optical zoom magnification method | : Motorized | ||||
| Calibration | : Automatic | ||||

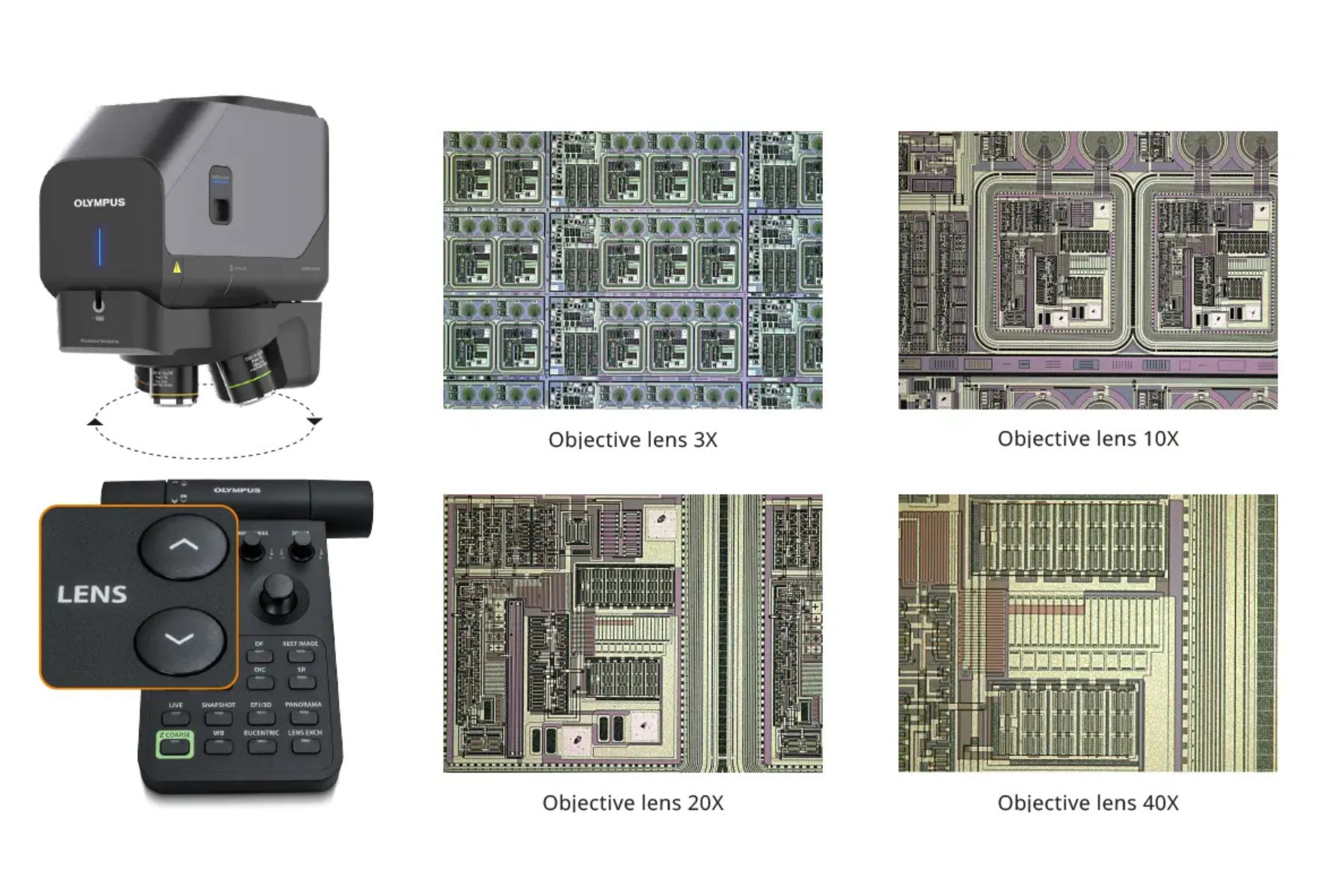

| Nosepiece | : Motorized revolving nosepiece | ||||
| Number of objectives that can be attached | : Up to 4 high resolution objectives | ||||
| Accuracy and repeatability (XY-plane) | Accuracy | : ±3% | |||
| Repeatability 3 σn-1 | : 2% | ||||
| Repeatability (Z-axis) | Repeatability σn-1 | : 1 µm | |||
| Camera | Image sensor | : 1.1-inch 12.37-megapixel color CMOS image sensor, global shutter | |||
| Cooling | : Peltier cooling | ||||
| Frame rate | : 60 fps (maximum) | ||||
| Ultra (Pixel shift mode) | : 6000 x 6000 (1:1), 8192 x 6000 (4:3) | ||||
| Super high (3CMOS mode) | : 3000 x 3000 (1:1), 4096 x 3000 (4:3) | ||||
| Super high | : 3000 x 3000 (1:1), 4096 x 3000 (4:3) | ||||
| 4K mode | : 3840 x 2160 (16:9) | ||||
| High | : 1500 x 1500 (1:1), 2048 x 1500 (4:3) | ||||
| High (Binning 2 x 2) | : 1500 x 1500 (1:1), 2048 x 1500 (4:3) | ||||
| Full HD mode | : 1920 x 1080 (16:9) | ||||
| Illumination | Color light source | : LED | |||
| Lifetime | : 60000 hours (design value) | ||||
| Observation | Brightfield (BF) | : Available | |||
| Oblique (OBQ) | : Available | ||||
| Darkfield (DF) | : Available, LED ring divided into 4 divisions | ||||
| MIX (Brightfieldd + Darkfield) | : Available, simultaneous observation of BF + DF | ||||
| Polarization (PO) | : Available | ||||
| Differential Interference Contrast (DIC) | : Available | ||||
| Shaded Relief (SR) | : Available | ||||
| Mechanical aperture for contrast settings | : Available | ||||
| Mechanical aperture for depth of focus | : Available | ||||
| Focus | Focusing | : Motorized | |||
| Stroke | : 75 mm (Motorized) | ||||
| Objective Lens | |||||
| Objective Lens | Type | DSX10-XLOB | UIS2 | ||
| Maximum sample height | : 71 mm | : 101 mm | |||
| Maximum sample height (Free angle observation) | : 50 mm | : 50 mm | |||
| Parfocal distance | : 75 mm | : 45 mm | |||
| Total magnification | : 43.8X - 5845X | : 26.1X - 7307X | |||
| Actual FOV | : 8700 x 6300 µm - 64.9 x 47.6 µm | : 14500 x 10700 µm - 51.9 x 38 µm | |||
| Stage | |||||
| Stage | Type | DSX20-TMTS | DSX20-RMTS | DSX20-LMTS | U-SIC4R |
| XY-stage: Motorized / Manual | : Motorized | : Motorized | : Motorized | : Manual | |
| XY-stroke | : 100 x 100 mm | : Stroke priority mode: 100 x 100 mm Rotation priority mode: 50 x 50 mm |
: 200 x 100 mm | : 100 x 105 mm | |
| Transmitted Lighting | : Integrated (PO, DF, BF, OBQ mode optional | : Not available | : Not available | : Not available | |
| Rotation angle | : Not available | : Stroke priority mode: ±20° Rotation priority mode: ±90° |
: Not available | : Not available | |
| Display rotation angle | : Not available | : GUI | : Not available | : Not available | |
| Maximum load capacity | : 5 kg (11 lbs) | : 5 kg (11 lbs) | : 5 kg (11 lbs) | : 1 kg (2.2 lbs) | |
| Frame | |||||
| Frame | Type | DSX20-UF | DSX20-TF | ||
| Z-axis stroke | : 50 mm (Manual) | : 50 mm (Manual) | |||

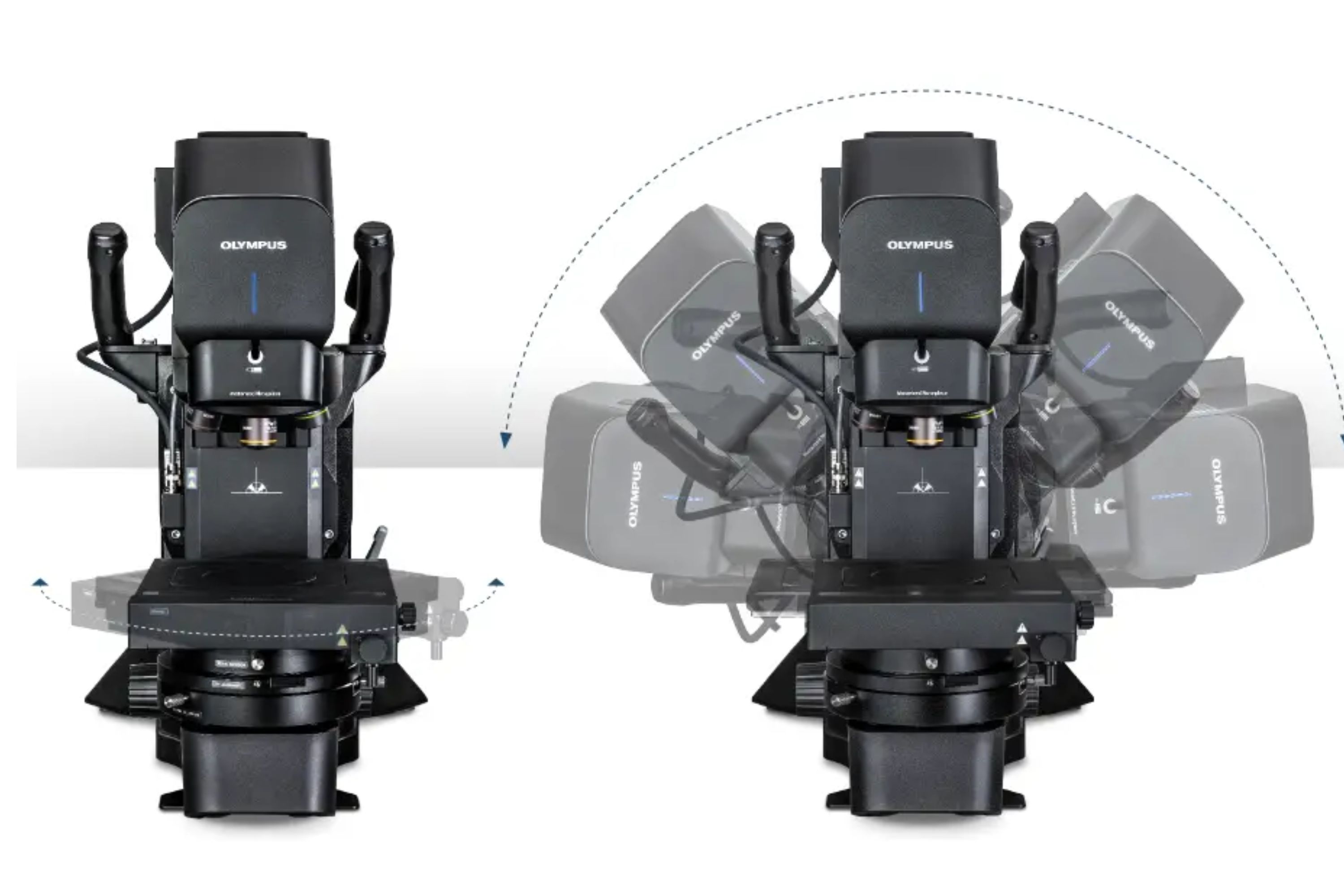

| Tilt observation | : Not available | : ±90° | |||
| Tilt angle display | : Not available | : GUI | |||
| Tilt angle method | : Not available | : Manual, Fix/release handle | |||
| Display | |||||
| Display | Screen size | : 27 inch / 32 inch | |||
| Resolution | : Full HD: 1920 x 1080 4K: 3840 x 2160 |
||||
| System Total | |||||
| System Total | Type | Upright frame system | Tile frame system | ||
| System Total | Weight (Frame, head, motorized stage, display, and console) | : 54.7 kg (120 lbs) | : 51.7 kg (113 lbs) | ||
| Power consumption | : 100 - 120 V / 220 - 240 V 1.1/0.54 A, 50/60 Hz |
: 100 - 120 V / 220 - 240 V 1.1/0.54 A, 50/60 Hz |
|||
| Software | |||||
| PreCiV DSX | : Included: device control, video recording, time-lapse imaging, large panorama acquisition, extended focus imaging, 3D image acquisition, Z-stack acquisition, position list navigation, best image function, extended 2D measurements, 3D measurements, reporting tools, neural network processing, macro recorder | ||||
| Operating system | : Windows 11-64 bit | ||||
| Network connectivity | : Compatible with most popular antiviruses, Windows security updates allowed, images can be saved directly to OneDrive. | ||||
| Reporting application | : Microsoft 365, Office 2021 | ||||
| Optional software | Count and Measure, Neural Network Training, Materials Solutions (Grain Size, Cast Iron, Phase Analysis, Porosity, Particle Size Distribution, Non-Metallic Inclusions, Layer Thickness, Coating Thickness) | ||||
| Customization | : Included: customizable user interface for predefined workflow creation Optional: wafer navigation, automated analysis on specific samples |
||||
