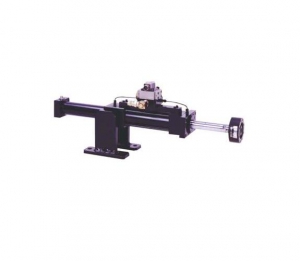

JF Series
Compact Hydraulic Actuator
Simulator Kekuatan Seri JF dikembangkan dengan penekanan pada bobot yang ringan, ukuran yang ringkas, dan kemudahan penggunaan sebagai jack kompak serba guna untuk sistem Servopulser. Sistem pengujian yang dipasang dengan Force Simulator dapat dengan mudah melakukan uji ketahanan, kelelahan, dan simulasi pada anggota struktural kecil dan berbagai anggota struktural lainnya, yang membantu meningkatkan desain logis dan keandalan produk.
Spesifikasi:
JF5KN : ±50 mm
| Weight |
17 kg |
|---|---|
| Overall length |
565 mm |
* The weight includes the load cell and servo valve.
* The overall length is the dimension at the central position, with the load cell attached.
JF5KN : ±100 mm
| Weight |
20 kg |
|---|---|
| Overall length |
815 mm |
JF5KN : ±150 mm
| Weight |
26 kg |
|---|---|
| Overall length |
1065 mm |
JF10kN JF20kN : ±50 mm
| Weight |
21 kg |
|---|---|
| Overall length |
570 mm |
JF10kN JF20kN : ±100 mm
| Weight |
25 kg |
|---|---|
| Overall length |
820 mm |
JF10kN JF20kN : ±150 mm
| Weight |
28 kg |
|---|---|
| Overall length |
1070 mm |
JF30kN : ±50 mm
| Weight |
74 kg |
|---|---|
| Overall length |
715 mm |
JF30kN : ±100 mm
| Weight |
84 kg |
|---|---|
| Overall length |
965 mm |
JF30kN : ±150 mm
| Weight |
94 kg |
|---|---|
| Overall length |
1215 mm |
EHF-JF5kNV-XX-A10
| P/N |
348-20708-XX |
|---|---|
| Actuator : Dynamic test force |
±5 kN |
| Actuator : Static test force |
Approx.±7 kN |
| Actuator : Effective stroke (±mm) |
Select 50, 100 or 150 |
| Servo valve : Rated pressure |
21 MPa |
| Servo valve : Flowrate |
19 L/min (when pressure drops by 7 MPa) |
| Load cell : Model |
SCL-5kN |
| Controller : Model |
4830 |
| Hydraulic power supply unit : Model |
AF-10B |
| Hydraulic power supply unit : Rated pressure |
21 MPa |
| Hydraulic power supply unit : Pumping rate |
9 L/min/50 Hz, 11 L/min/60 Hz |
| Hydraulic power supply unit : Other |
Motor: 5.5 kW, 4-pole (drip-proof) / Constant-rate gear pump tank capacity: 90 L/ACC1L installed / Cooling method: air cooled / With casters |
| Pipes : High-pressure rubber hose |
5 m, 1/2 inch with coupling at each end, including spiral-wire guard |
| Utilities : Power Supply |
200/220 V±10 %, 8 kVA, 3-phase and 100 V±10 %, 300 VA, single-phase |
* Other combinations of hydraulic power supply, controller, etc. also are available. Consult your Shimadzu representative for details.
EHF-JF10kNV-A10
| P/N |
348-20718-XX |
|---|---|
| Actuator : Dynamic test force |
±10 kN |
| Actuator : Static test force |
Approx.±13 kN |
| Actuator : Effective stroke (±mm) |
Select 50, 100 or 150 |
| Servo valve : Rated pressure |
21 MPa |
| Servo valve : Flowrate |
19 L/min (when pressure drops by 7 MPa) |
| Load cell : Model |
SCL10kN |
| Controller : Model |
4830 |
| Hydraulic power supply unit : Model |
AF-10B |
| Hydraulic power supply unit : Rated pressure |
21 MPa |
| Hydraulic power supply unit : Pumping rate |
9 L/min/50 Hz, 11 L/min/60 Hz |
| Hydraulic power supply unit : Other |
Motor: 5.5 kW, 4-pole (drip-proof) / Constant-rate gear pump tank capacity: 90 L/ACC1L installed / Cooling method: air cooled / With casters |
| Pipes : High-pressure rubber hose |
5 m, 1/2 inch with coupling at each end, including spiral-wire guard |
| Utilities : Power Supply |
200/220 V±10 %, 8 kVA, 3-phase and 100 V±10 %, 300 VA, single-phase |
EHF-JF20kNV-A10
| P/N |
348-20728-XX |
|---|---|
| Actuator : Dynamic test force |
±20 kN |
| Actuator : Static test force |
Approx.±27 kN |
| Actuator : Effective stroke (±mm) |
Select 50, 100 or 150 |
| Servo valve : Rated pressure |
21 MPa |
| Servo valve : Flowrate |
19 L/min (when pressure drops by 7 MPa) |
| Load cell : Model |
SCL-20kN |
| Controller : Model |
4830 |
| Hydraulic power supply unit : Model |
AF-10B |
| Hydraulic power supply unit : Rated pressure |
21 MPa |
| Hydraulic power supply unit : Pumping rate |
9 L/min/50 Hz, 11 L/min/60 Hz |
| Hydraulic power supply unit : Other |
Motor: 5.5 kW, 4-pole (drip-proof) / Constant-rate gear pump tank capacity: 90 L/ACC1L installed / Cooling method: air cooled / With casters |
| Pipes : High-pressure rubber hose |
5 m, 1/2 inch with coupling at each end, including spiral-wire guard |
| Utilities : Power Supply |
200/220 V±10 %, 8 kVA, 3-phase and 100 V±10 %, 300 VA, single-phase |
EHF-JF30kNV-A10
| P/N |
348-20738-XX |
|---|---|
| Actuator : Dynamic test force |
±30 kN |
| Actuator : Static test force |
Approx.±39 kN |
| Actuator : Effective stroke (±mm) |
Select 50, 100 or 150 |
| Servo valve : Rated pressure |
21 MPa |
| Servo valve : Flowrate |
19 L/min (when pressure drops by 7 MPa) |
| Load cell : Model |
SFL-30kN |
| Controller : Model |
4830 |
| Hydraulic power supply unit : Model |
AF-10B |
| Hydraulic power supply unit : Rated pressure |
21 MPa |
| Hydraulic power supply unit : Pumping rate |
9 L/min/50 Hz, 11 L/min/60 Hz |
| Hydraulic power supply unit : Other |
Motor: 5.5 kW, 4-pole (drip-proof) / Constant-rate gear pump tank capacity: 90 L/ACC1L installed / Cooling method: air cooled / With casters |
| Pipes : High-pressure rubber hose |
3/4 inch |
| Utilities : Power Supply |
200/220 V±10 %, 8 kVA, 3-phase and 100 V±10 %, 300 VA, single-phase |
