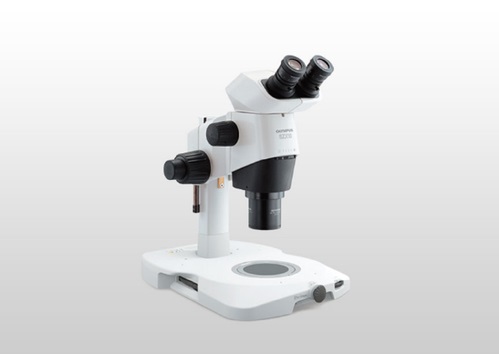

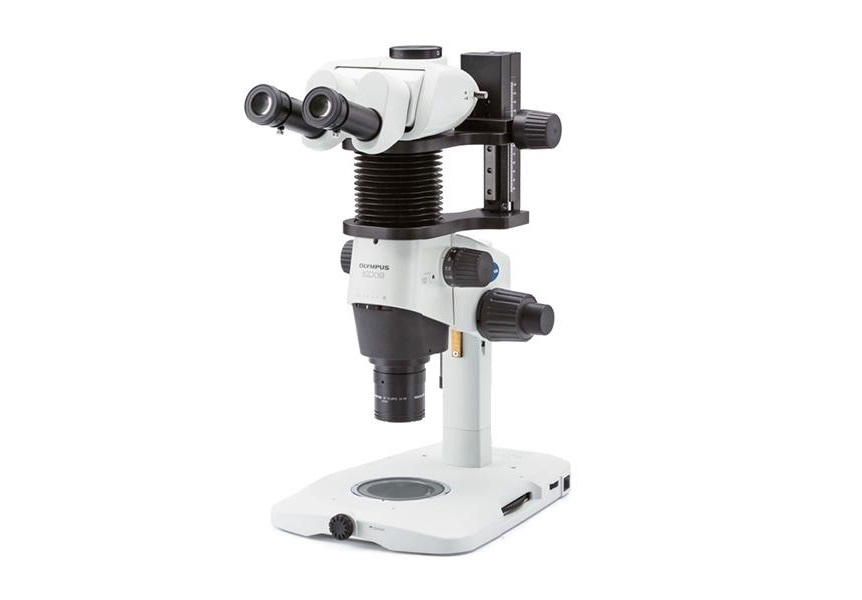

SZX10
Mikroskop SZX10 adalah pilihan logis jika jarak kerja yang besar dan ukuran bidang penting. Sistem lensa kami dirancang agar pengguna dapat mengamati dan mendokumentasikan sampel dalam warna asli dan asli tanpa distorsi. Dengan komponen ergonomis, seperti tabung mata yang lebih panjang, pengguna mempertahankan postur tubuh yang alami saat menggunakan mikroskop.
| Research Stereomicroscope System SZX10 Specifications | ||||||
| Optical System | Galilean Optical System | |||||
| Total Magnification | 3.15x-378x*1 | |||||
| Zoom Body | Zoom Ratio | 10 (0.63x-6.3x) | ||||
| AS | Built-in | |||||
| Observation Tube | Binocular/Trinocular/Tilting Trinocular Observation Tube | |||||
| Extendable Eyepoint Adjuster | SZX2-EEPA | |||||
| Focus | Focusing Unit/Coarse Fine Focusing Unit/Heavy-duty Coarse Fine Focusing Unit/Motorized Focusing Unit | |||||
| Objective Lens | Magnification | Type | N.A. | W.D. (mm) | Total Magnification *2 *3 | Field Diameter of View (mm)*2 *3 |
| 0.5x | Plan Achromat | 0.05 | 171 | 3.2x-31.5x | Ø69.8-Ø7 | |
| 0.75x | Plan Achromat | 0.075 | 116 | 4.7x-47.3x | Ø46.6-Ø4.7 | |
| 1x | Plan Apochromat | 0.1 | 81 | 6.3x-63x | Ø34.9-Ø3.5 | |
| Achromat | 0.1 | 90 | 6.3x-63x | Ø34.9-Ø3.5 | ||
| 1.25x | Plan Apochromat | 0.125 | 60 | 7.9x-78.9x | Ø27.9-Ø2.8 | |
| Achromat | 0.125 | 68 | 7.9x-78.9x | Ø27.9-Ø2.8 | ||
| 1.5x | Plan Achromat | 0.15 | 45.5 | 9.5x-94.5x | Ø23.3-Ø2.3 | |
| 2x | Plan Achromat | 0.2 | 33.5 | 12.6x-126x | Ø17.5-Ø1.7 | |
| Dimensions (W x D x H) | 285 mm x 335 mm x 400 mm | |||||
| Weight | 7 kg (in Standard Configularion) | |||||
| Remark | *1 total magnification range possible by combining an objective lens and eyepiece *2 in the case of using eyepiece 10x *3 SZX2-LTTR: intermediate magnification is 1.25X, SZX2-ILLC10: intermediate magnification is 1.5X |
|||||
