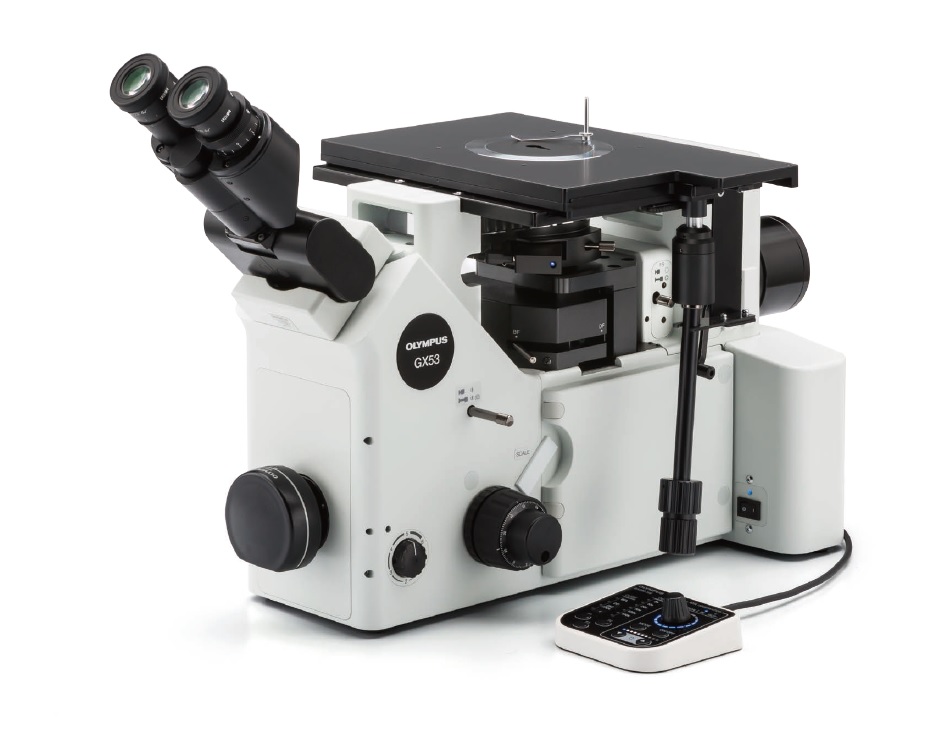

Olympus GX53

Menganalisis Bahan Sampel Besar dan Tebal dengan Cepat
Dirancang untuk digunakan dalam baja, otomotif, elektronik, dan industri manufaktur lainnya, mikroskop GX53 memberikan gambar tajam yang mungkin sulit ditangkap menggunakan metode pengamatan mikroskop konvensional. Jika digabungkan dengan perangkat lunak analisis gambar OLYMPUS Stream, mikroskop menyederhanakan proses inspeksi dari observasi hingga analisis dan pelaporan gambar.

Inspeksi Cepat, Fungsi Canggih
Amati, ukur, dan analisis struktur metalurgi dengan cepat.

Alat Analisis Lanjutan
1. Metode observasi gabungan menghasilkan gambar yang luar biasa
2. Membuat gambar panorama dengan mudah
3. Buat gambar all-in-focus
4. Menangkap area terang dan gelap

Dioptimalkan untuk Ilmu Material
1. Perangkat lunak yang dirancang untuk ilmu material
2. Analisis metalurgi yang sesuai dengan standar industri

Mudah digunakan
Bahkan operator pemula dapat dengan nyaman melakukan observasi, menganalisis hasil, dan membuat laporan.

1. Kembalikan pengaturan mikroskop dengan mudah
2. Panduan pengguna membantu menyederhanakan analisis lanjutan
3. Pembuatan laporan yang efisien

Teknologi Pencitraan Canggih
Teknologi optik dan pencitraan kami yang telah terbukti memberikan gambar yang jelas dan hasil yang andal.

1. Kinerja optik yang andal: kontrol aberasi muka gelombang
2. Gambar yang jelas: koreksi bayangan gambar
3. Temperatur warna yang konsisten: iluminasi LED putih intensitas tinggi
4. Pengukuran yang tepat: kalibrasi otomatis

Modular
Pilih komponen yang Anda butuhkan untuk aplikasi Anda.

1. Bangun sistem Anda sesuai keinginan Anda: sistem yang sepenuhnya dapat disesuaikan dengan berbagai komponen opsional

Specifications :

Optical systemOptical system UIS2 optical system (infinity-corrected)
Microscope frame Reflected light illumination Manual brightfield/darkfield selection by mirror unit
Manual field stop/aperture stop switch with centering
Light source: White LED (with Light Intensity Manager) /12 V, 100 W halogen lamp/100 W mercury lamp/light guide source
Observation mode: brightfield, darkfield, differential interface contrast (DIC)*1, simple polarizing*1, MIX observation (4 directional darkfield)*2
*1 Slider for exclusive use of this observation is required. *2 MIX observation configuration is required.
  Imprinting of scale All ports reversed positions (up/down) from observation positions seen through the eyepiece
  Output front port (optional) Camera and DP system (reversed image, special camera adapter for GX)
  Output side port (optional) Camera, DP system (upright image)
  Electrical system Reflected light illumination
Built-in LED power supply for reflected light illumination
  Continuously-variable light intensity dial
  Input rating 5 V DC, 2.5 A (AC adapter 100–240 V, AC 0.4 A, 50 Hz/60 Hz)
Transmitted light illumination (requires the optional BX3M-PSLED power supply)
  Continuously-variable light intensity dial by voltage
  Input rating 5 V DC, 2.5 A (AC adapter 100–240 V, AC 0.4 A, 50 Hz/60 Hz)
External interface (requires the optional BX3M-CBFM control box)
Coded nosepiece connector × 1
MIX Slider (U-MIXR) connector × 1
Handset (BX3M-HS) connector × 1
Handset (U-HSEXP) connector × 1
  RS-232C connector × 1, USB 2.0 connector × 1
  Focus Rack and pinion with roller guide
  Manual, coarse and fine coaxial handle; focus stroke 9 mm (2 mm above and 7 mm below the stage surface)
  Fine handle stroke per rotation: 100 μm (min. scale: 1 μm)
  Coarse handle stroke per rotation: 7 mm
  With torque adjustment ring for coarse focusing
  With upper limit stopper for coarse focusing
Tubes Widefield (FN 22) Inverted: binocular (U-BI90, U-BI90CT), trinocular (U-TR30H-2), tilting binocular (U-TBI90)
Nosepiece Brightfield Holes: 4 to 7 pcs, Type: Manual/Coded, Centering: Enabled/Disabled
Brighfield/darkfield Hole: 5 to 6 pcs, Type: Manual/Coded, Centering: Enabled/Disabled
Stage Right handle stage for GX (X/Y stroke: 50 × 50 mm, max. load 5 kg)
Flexible right handle stage, left short handle stage (each X/Y stroke: 50 × 50 mm, max. load 1 kg)
Gliding stage (max. load 1 kg)
A set of teardrop and long hole types
Weight Approx. 25 kg (microscope frame 20 kg)
Environment ・Indoor use
・Ambient temperature: 5 to 40 °C (45 to 100 °F)
・Maximum relative humidity: 80% for temperatures up to 31 °C (88 °F) (without condensation)
  In case of over 31 °C (88 °F), the relative humidity is decreased linearly through 70% at 34 °C (93 °F), 60% at 37 °C
  (99 °F), and to 50% at 40 °C (104 °F).
・Pollution degree: 2 (in accordance with IEC60664-1)
・Installation/Overvoltage category: II (in accordance with IEC60664-1)
・Supply voltage fluctuation: ±10 %
