M SERIES
Produk / Shimadzu Dynamic Balancing Machine / Horizontal Type / M SERIES

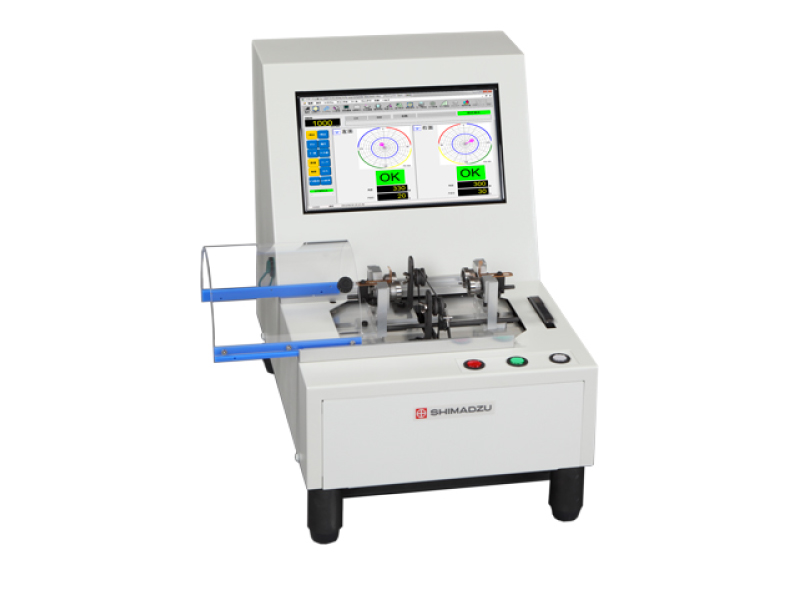

M-1NEII
Specifications
| Workpiece Weight (kg) | 0.01 to 0.6 |
| Max. Workpiece Diameter (mm) | 60 |
| Testing Speed (rpm) | 1000 to 3600 (Depending on outer diameter of workpiece) |
| Drive motor (w) | 5 phase pulse motor |
| Min. Achievable Residual Unbalance (µm) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.01 |
| Size (WxDxH mm) | 300x418x440 |
| Weight (kg) | 30 |
| Power Supply | Single-phase AC100V to 240V 10A 2KVA |
