Model Name

High Speed Tensile Testing Machine HITS-TX

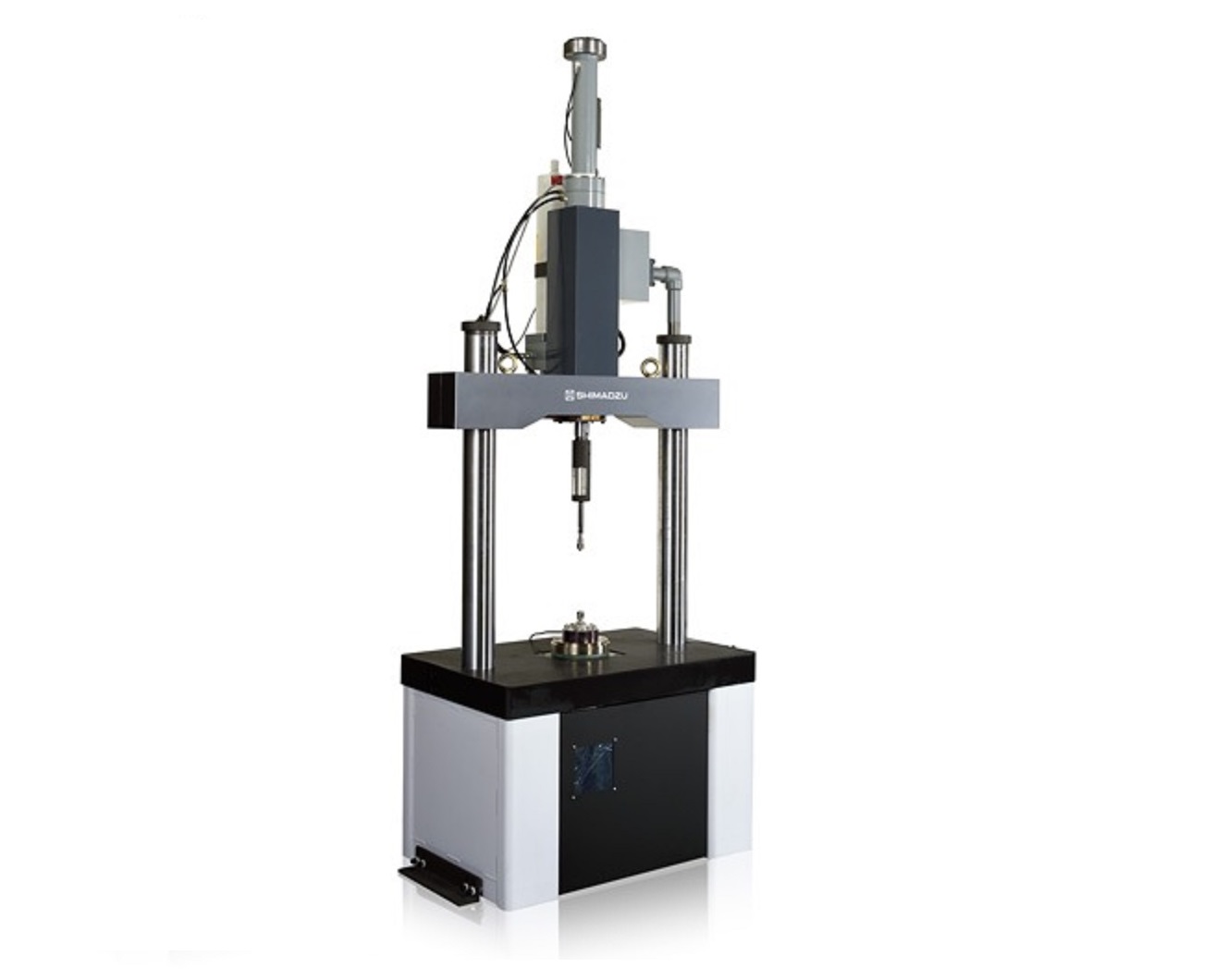

High Speed Puncture Impact Testing Machine HITS-PX

Impact Test Force

10 kN

Maximum Speed

20 m/s

Range Of Speed Settings

0.0001 m/s to 20 m/s*1

1  m/s to 20 m/s

Piston Stroke

300 mm

Force Amplifier

Range

20%, 50%, 100% of load detector rating

Accuracy

20%, 50%, 100% range :Within ±1.0% of range full scale

100% range:Within ±0.5% of range full scale

20%, 50% range :Within ±1.0% of range full scale

Response Frequency

DC-100kHz (-3db)

Displacement Amplifier

Range

10%, 20%, 50% or 100% of 150mm (displacement detector rating)

Accuracy

Within 1.0% of range full scale

Response Frequency

DC-10kHz (-3db)

AD Converter

Sampling rate: Max. 2 MHz with 14-bit resolution

Specimen Holder

-

Pneumatic clamping

Acceleration Jig

Tapered acceleration mechanism

-

Hydraulic Pressure Supply

Model AF-7H, 7 L/min, air cooled

Safety Devices

Door open/close interlock switch  Protection mat interlock switch  Two-switch start operation

Start timer, etc.

Controller

Model 4870 controller (specialized for high-speed impact testing)

Software

High-speed impact testing software

PC Environment Required for Operation*2

Compatible OS: Windows 10 (Japanese, English) / Memory capacity: 4 GB or more / HDD capacity: 120 GB or more / Display resolution and colors: 1024 × 768, 65,535 colors /

Other required peripheral equipment: CD-ROM Drive / Expansion bus: One full-size PCI bus empty slot /

Communications: RS-232C communication port (required for communication with 4875 controllers)

Power Supply Requirements (In JAPAN)

200 V 3-phase 6 kVA, 100 V single-phase 1.5 kVA Breaker capacity: 3-phase 30 A, single-phase 15 A

Air Supply Requirements

Not required

0.6 to 0.7 MPa

Dimensions (Main Testing Unit)

Approx. W1,100 × D700 × H2,850 mm

Approx. W1,100 × D900 × H2850 mm

Weight (Main Testing Unit)

Approx. 1,500 kg
