Detil Produk

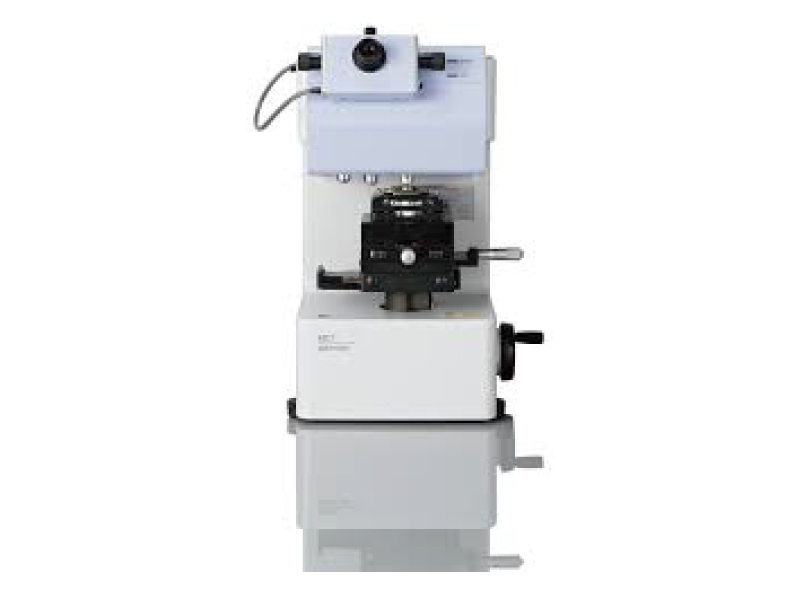

MCT 510

Specifications

Loading Unit	Loading method	:	Electromagnetic force
	Loading range (mN)	:	9.8 – 4903
	Load Accuracy	:	Within ± 1% of displayed test force or 0.1 mN (whichever is greater
	Resolution (μm)	:	5 (when testing at 49 mN or less)
Displacement measurement unit	Method	:	Differential transformer
	Measurement range (μm)	:	0 – 100
	Min. increment (μm)	:	0.001
	Linearity	:	Within ± 2% of full scale
Optical monitor	Total magnication	:	Approx. × 100, × 500 (× 200, × 400, × 1000 with option)
	Objective lens	:	× 10, × 50 (× 20, × 40, × 100 with option)
	Eyepiece	:	× 10
	Illumination method	:	Epiluminescent
	Illumination lamp	:	LED 3 W / 3 V
	Light path	:	Switching between observation and photography possible
Optical Head	Collimation method	:	Direct connection between encorder and
	Collimation method		control handle: synchronized movement of two indexes
	Detector	:	Optical encoder
	Effective measurement range	:	Approx. 200 μm (with × 50 objective lens)
	Min. increment	:	0.01 μm / pulse
Indenter	Upper pressure indenter	:	Type: Flat indenter (50 μm diameter)
			(500 μm at indenter as option)
			Material: Diamond
	Lower pressure plate	:	SKS at plate (Diamond pressure plate available as option)
Specimen stage	Vertical positioning range	:	Approx. 60 mm
	Area	:	Approx. W 125 mm × D 125 mm
	Horizontal positioning range	:	25 mm for both X and Y directions
	Horizontal positioning range		Min. increment: 0.01 mm (0.001 mm with option)
Available test parameters	Test mode	:	Compression test, load-unload test, cyclic test
	Shape of specimen	:	Particle, ¤ber or other shapes
	Data Processing Items	:	Calculation of compressive strength, display of test parameters and results
			Display of test force and displacement data
			Display of test force/displacement curve
			Display of test force/displacement identi¤cation value
			Display of strength/particle diameter curve
			Display of displacement/time curve
			Display of strength/parameter curve
	Power Supply	:	Single phase AC 100–115 V ± 10%, AC 230 V ± 10%
	Power Supply		(Ground resistance 100 ¥ max.)
Utilities	Power Consumption	:	Approx. 100 W (not including power consumption of PC)
	Grounding*1	:	The grounding pins of 3-pin connectors must be connected
	Grounding*1		to a resistance of 100 W or less.
	Temperature	:	Recommended temperature: 23 ± 1°C
			Allowable range: 10°C to 35°C
	Vibration	:	Horizontal vibration: 0.017 Gal max. (at 10 Hz or more) 0.01 μm max. (at less than 10 Hz) Vertical vibration: 0.010 Gal max. (at 10 Hz or more) 0.005 μm max. (at less than 10 Hz)
	Humidity	:	80% max. (no condensation)
Dimensions and Weight	External Dimensions	:	Tester: Approx. W 355 × D 405 × H 530 mm
	External Dimensions		Control unit: Approx. W 315 × D 375 × H 110 mm
	Weight	:	Tester: Approx. 60 kg
	Weight		Control unit: Approx. 5 kg

MCT 511

Specifications

Loading Unit	Loading method	:	Electromagnetic force
	Loading range (mN)	:	9.8 – 4903
	Load Accuracy	:	Within ± 1% of displayed test force or 0.1 mN (whichever is greater
	Resolution (μm)	:	5 (when testing at 49 mN or less)
Displacement measurement unit	Method	:	Differential transformer
	Measurement range (μm)	:	0 – 10
	Min. increment (μm)	:	0.0001
	Linearity	:	Within ± 2% of full scale
Optical monitor	Total magnication	:	Approx. × 100, × 500 (× 200, × 400, × 1000 with option)
	Objective lens	:	× 10, × 50 (× 20, × 40, × 100 with option)
	Eyepiece	:	× 10
	Illumination method	:	Epiluminescent
	Illumination lamp	:	LED 3 W / 3 V
	Light path	:	Switching between observation and photography possible
Optical Head	Collimation method	:	Direct connection between encorder and
	Collimation method		control handle: synchronized movement of two indexes
	Detector	:	Optical encoder
	Effective measurement range	:	Approx. 200 μm (with × 50 objective lens)
	Min. increment	:	0.01 μm / pulse
Indenter	Upper pressure indenter	:	Type: Flat indenter (50 μm diameter)
			(500 μm at indenter as option)
			Material: Diamond
	Lower pressure plate	:	SKS at plate (Diamond pressure plate available as option)
Specimen stage	Vertical positioning range	:	Approx. 60 mm
	Area	:	Approx. W 125 mm × D 125 mm
	Horizontal positioning range	:	25 mm for both X and Y directions
	Horizontal positioning range		Min. increment: 0.01 mm (0.001 mm with option)
Available test parameters	Test mode	:	Compression test, load-unload test, cyclic test
	Shape of specimen	:	Particle, ¤ber or other shapes
	Data Processing Items	:	Calculation of compressive strength, display of test parameters and results
			Display of test force and displacement data
			Display of test force/displacement curve
			Display of test force/displacement identi¤cation value
			Display of strength/particle diameter curve
			Display of displacement/time curve
			Display of strength/parameter curve
	Power Supply	:	Single phase AC 100–115 V ± 10%, AC 230 V ± 10%
	Power Supply		(Ground resistance 100 ¥ max.)
Utilities	Power Consumption	:	Approx. 100 W (not including power consumption of PC)
	Grounding*1	:	The grounding pins of 3-pin connectors must be connected
	Grounding*1		to a resistance of 100 W or less.
	Temperature	:	Recommended temperature: 23 ± 1°C
	Temperature		Allowable range: 10°C to 35°C
	Vibration	:	Horizontal vibration: 0.017 Gal max. (at 10 Hz or more) 0.01 μm max. (at less than 10 Hz) Vertical vibration: 0.010 Gal max. (at 10 Hz or more) 0.005 μm max. (at less than 10 Hz)
	Humidity	:	80% max. (no condensation)
Dimensions and Weight	External Dimensions	:	Tester: Approx. W 355 × D 405 × H 530 mm
	External Dimensions		Control unit: Approx. W 315 × D 375 × H 110 mm
	Weight	:	Tester: Approx. 60 kg
	Weight		Control unit: Approx. 5 kg

MCT 210

Specifications

Loading Unit	Loading method	:	Electromagnetic force
	Loading range (mN)	:	9.8 – 1961
	Load Accuracy	:	Within ± 1% of displayed test force or 0.1 mN (whichever is greater
	Resolution (μm)	:	2 (when testing at 19 mN or less)
Displacement measurement unit	Method	:	Differential transformer
	Measurement range (μm)	:	0 – 100
	Min. increment (μm)	:	0.001
	Linearity	:	Within ± 2% of full scale
Optical monitor	Total magnication	:	Approx. × 100, × 500 (× 200, × 400, × 1000 with option)
	Objective lens	:	× 10, × 50 (× 20, × 40, × 100 with option)
	Eyepiece	:	× 10
	Illumination method	:	Epiluminescent
	Illumination lamp	:	LED 3 W / 3 V
	Light path	:	Switching between observation and photography possible
Optical Head	Collimation method	:	Direct connection between encorder and
	Collimation method		control handle: synchronized movement of two indexes
	Detector	:	Optical encoder
	Effective measurement range	:	Approx. 200 μm (with × 50 objective lens)
	Min. increment	:	0.01 μm / pulse
Indenter	Upper pressure indenter	:	Type: Flat indenter (50 μm diameter)
			(500 μm at indenter as option)
			Material: Diamond
	Lower pressure plate	:	SKS at plate (Diamond pressure plate available as option)
Specimen stage	Vertical positioning range	:	Approx. 60 mm
	Area	:	Approx. W 125 mm × D 125 mm
	Horizontal positioning range	:	25 mm for both X and Y directions
	Horizontal positioning range		Min. increment: 0.01 mm (0.001 mm with option)
Available test parameters	Test mode	:	Compression test, load-unload test, cyclic test
	Shape of specimen	:	Particle, ¤ber or other shapes
	Data Processing Items	:	Calculation of compressive strength, display of test parameters and results
			Display of test force and displacement data
			Display of test force/displacement curve
			Display of test force/displacement identi¤cation value
			Display of strength/particle diameter curve
			Display of displacement/time curve
			Display of strength/parameter curve
	Power Supply	:	Single phase AC 100–115 V ± 10%, AC 230 V ± 10%
	Power Supply		(Ground resistance 100 ¥ max.)
Utilities	Power Consumption	:	Approx. 100 W (not including power consumption of PC)
	Grounding*1	:	The grounding pins of 3-pin connectors must be connected
	Grounding*1		to a resistance of 100 W or less.
	Temperature	:	Recommended temperature: 23 ± 1°C
	Temperature		Allowable range: 10°C to 35°C
	Vibration	:	Horizontal vibration: 0.017 Gal max. (at 10 Hz or more) 0.01 μm max. (at less than 10 Hz) Vertical vibration: 0.010 Gal max. (at 10 Hz or more) 0.005 μm max. (at less than 10 Hz)
	Humidity	:	80% max. (no condensation)
Dimensions and Weight	External Dimensions	:	Tester: Approx. W 355 × D 405 × H 530 mm
	External Dimensions		Control unit: Approx. W 315 × D 375 × H 110 mm
	Weight	:	Tester: Approx. 60 kg
	Weight		Control unit: Approx. 5 kg

MCT 211

Specifications

Loading Unit	Loading method	:	Electromagnetic force
	Loading range (mN)	:	9.8 – 1961
	Load Accuracy	:	Within ± 1% of displayed test force or 0.1 mN (whichever is greater
	Resolution (μm)	:	2 (when testing at 19 mN or less)
Displacement measurement unit	Method	:	Differential transformer
	Measurement range (μm)	:	0 – 10
	Min. increment (μm)	:	0.0001
	Linearity	:	Within ± 2% of full scale
Optical monitor	Total magnication	:	Approx. × 100, × 500 (× 200, × 400, × 1000 with option)
	Objective lens	:	× 10, × 50 (× 20, × 40, × 100 with option)
	Eyepiece	:	× 10
	Illumination method	:	Epiluminescent
	Illumination lamp	:	LED 3 W / 3 V
	Light path	:	Switching between observation and photography possible
Optical Head	Collimation method	:	Direct connection between encorder and
	Collimation method		control handle: synchronized movement of two indexes
	Detector	:	Optical encoder
	Effective measurement range	:	Approx. 200 μm (with × 50 objective lens)
	Min. increment	:	0.01 μm / pulse
Indenter	Upper pressure indenter	:	Type: Flat indenter (50 μm diameter)
			(500 μm at indenter as option)
			Material: Diamond
	Lower pressure plate	:	SKS at plate (Diamond pressure plate available as option)
Specimen stage	Vertical positioning range	:	Approx. 60 mm
	Area	:	Approx. W 125 mm × D 125 mm
	Horizontal positioning range	:	25 mm for both X and Y directions
	Horizontal positioning range		Min. increment: 0.01 mm (0.001 mm with option)
Available test parameters	Test mode	:	Compression test, load-unload test, cyclic test
	Shape of specimen	:	Particle, ¤ber or other shapes
	Data Processing Items	:	Calculation of compressive strength, display of test parameters and results
			Display of test force and displacement data
			Display of test force/displacement curve
			Display of test force/displacement identi¤cation value
			Display of strength/particle diameter curve
			Display of displacement/time curve
			Display of strength/parameter curve
	Power Supply	:	Single phase AC 100–115 V ± 10%, AC 230 V ± 10%
	Power Supply		(Ground resistance 100 ¥ max.)
Utilities	Power Consumption	:	Approx. 100 W (not including power consumption of PC)
	Grounding*1	:	The grounding pins of 3-pin connectors must be connected
	Grounding*1		to a resistance of 100 W or less.
	Temperature	:	Recommended temperature: 23 ± 1°C
	Temperature		Allowable range: 10°C to 35°C
	Vibration	:	Horizontal vibration: 0.017 Gal max. (at 10 Hz or more) 0.01 μm max. (at less than 10 Hz) Vertical vibration: 0.010 Gal max. (at 10 Hz or more) 0.005 μm max. (at less than 10 Hz)
	Humidity	:	80% max. (no condensation)
Dimensions and Weight	External Dimensions	:	Tester: Approx. W 355 × D 405 × H 530 mm
	External Dimensions		Control unit: Approx. W 315 × D 375 × H 110 mm
	Weight	:	Tester: Approx. 60 kg
	Weight		Control unit: Approx. 5 kg
