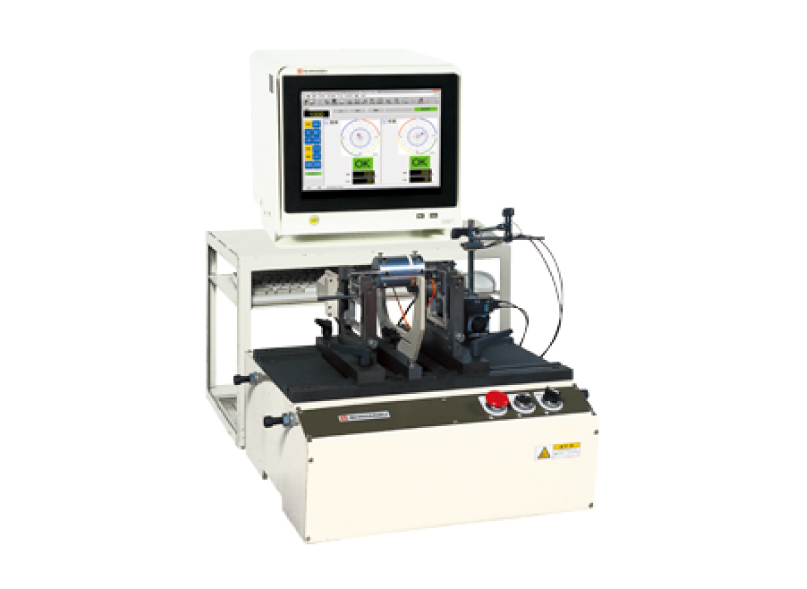

SGB-STB SERIES
Produk / Shimadzu Dynamic Balancing Machine / Horizontal Type / SGB-STB SERIES
SGB/STB-003NEII
Specifications
| Workpiece Weight (kg) | 0.001 to 0.03 |
| Max. Workpiece Diameter (mm) | 30 |
| Max. Diameter for Belt Drive (mm) | 30 |
| Span Across Bearings (mm) | 15 to 185 |
| Workpiece Shaft Diameter (mm) (1) | 1.5 to 6 |
| Drive motor (w) | 18 (stepping motor) |
| Bearing type (1) | V bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.0008 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Downward-tangential and winding drive |
| Size (WxDxH mm) | 240x330x220 |
| Weight (kg) | 50 |
| Power Supply | Single-phase 100V 10A 1KVA |
SGB/STB-03NEII
Specifications
| Workpiece Weight (kg) | 0.01 to 0.3 |
| Max. Workpiece Diameter (mm) | 60 |
| Max. Diameter for Belt Drive (mm) | 40 |
| Span Across Bearings (mm) | 15 to 185 |
| Workpiece Shaft Diameter (mm) (1) | 1.5 to 8 |
| Drive motor (w) | 18 (stepping motor) |
| Bearing type (1) | V bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.003 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Downward-tangential and winding drive |
| Size (WxDxH mm) | 240x330x220 |
| Weight (kg) | 50 |
| Power Supply | Single-phase 100V 10A 1KVA |
SGB/STB-1NEII
Specifications
| Workpiece Weight (kg) | 0.01 to 1 |
| Max. Workpiece Diameter (mm) | 200 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 50 to 370 |
| Workpiece Shaft Diameter (mm) (1) | 5 to 15 |
| Drive motor (w) | 90 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.01 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Downward-tangential and winding drive |
| Size (WxDxH mm) | 500x500x500 |
| Weight (kg) | 80 |
| Power Supply | Single-phase 100V 10A 1KVA |
SGB/STB-3NEII
Specifications
| Workpiece Weight (kg) | 0.03 to 3 |
| Max. Workpiece Diameter (mm) | 200 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 50 to 370 |
| Workpiece Shaft Diameter (mm) (1) | 5 to 25 |
| Drive motor (w) | 90 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.03 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Downward-tangential and winding drive |
| Size (WxDxH mm) | 500x500x500 |
| Weight (kg) | 80 |
| Power Supply | Single-phase 100V 10A 1KVA |
SGB/STB-10NEII
Specifications
| Workpiece Weight (kg) | 0.1 to 10 |
| Max. Workpiece Diameter (mm) | 300 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 60 to 520 |
| Workpiece Shaft Diameter (mm) (1) | 5 to 25 |
| Drive motor (w) | 200 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.1 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Downward-tangential and winding drive |
| Size (WxDxH mm) | 650x590x520 |
| Weight (kg) | 200 |
| Power Supply | Single-phase 200V 10A 2KVA |
SGB/STB-30NEII
Specifications
| Workpiece Weight (kg) | 0.3 to 30 |
| Max. Workpiece Diameter (mm) | 300 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 60 to 520 |
| Workpiece Shaft Diameter (mm) (1) | 10 to 40 |
| Drive motor (w) | 200 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.1 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.3 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Downward-tangential and winding drive |
| Size (WxDxH mm) | 650x590x520 |
| Weight (kg) | 200 |
| Power Supply | Single-phase 200V 10A 2KVA |
