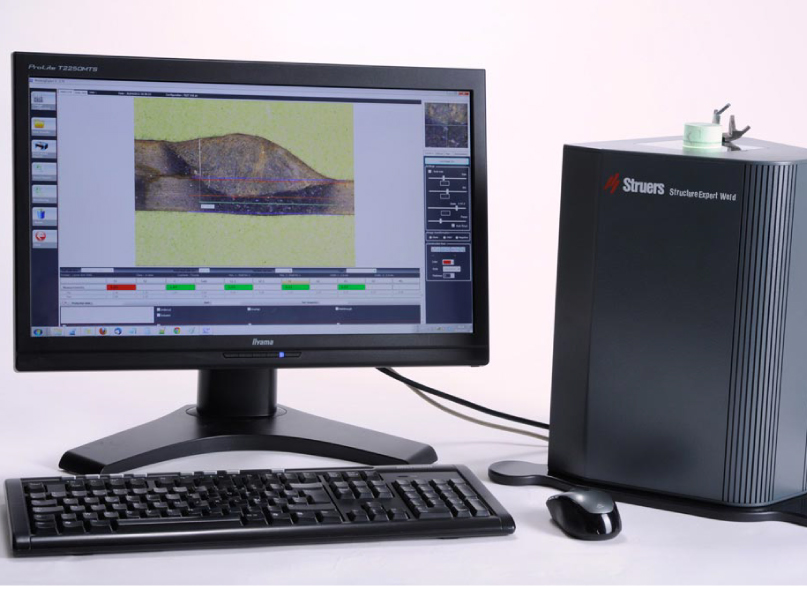

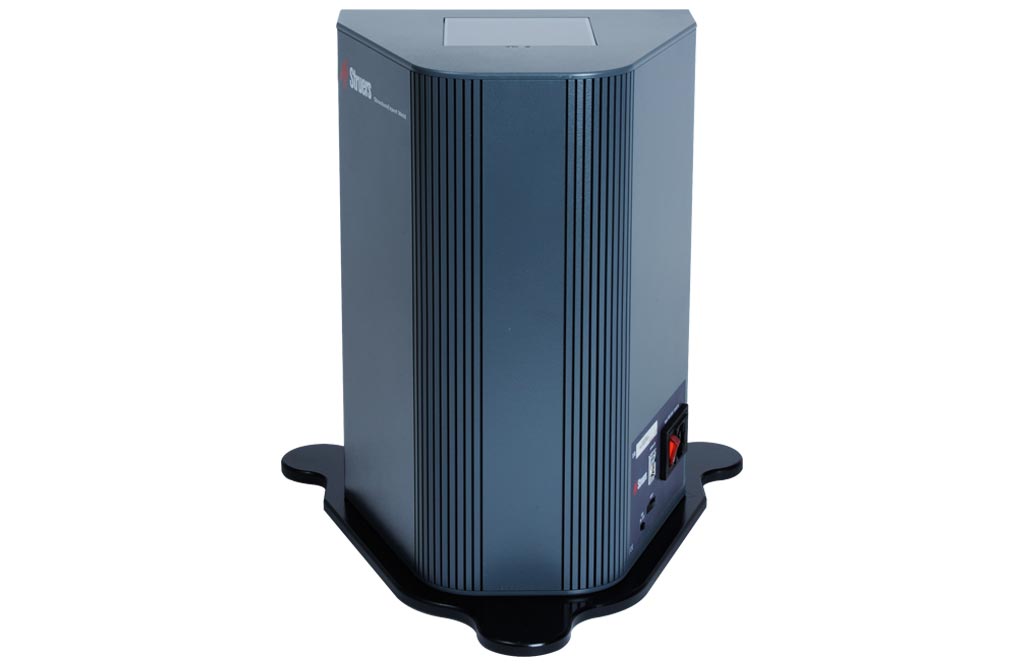

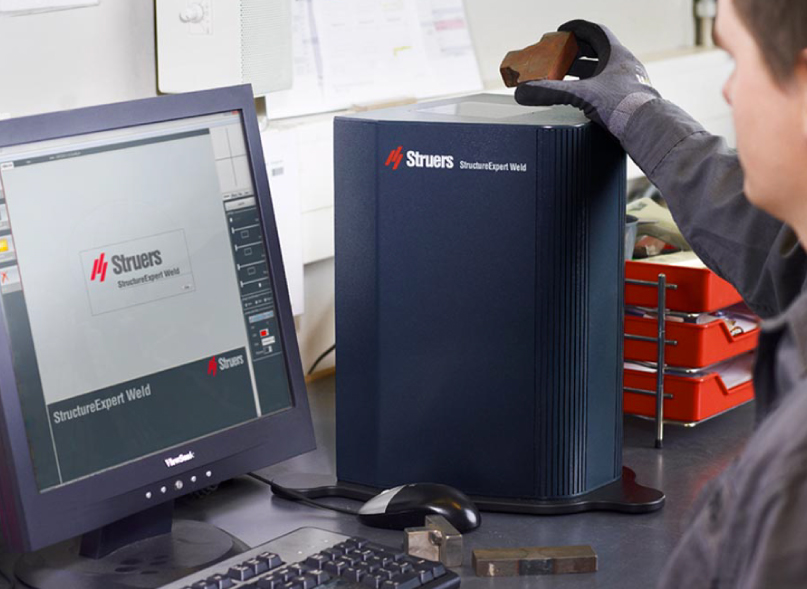

StructureExpert Weld
Produk / Struers Metallography / Others / StructureExpert Weld
StrucureExpert Weld-5
The simple way to precise weld bead inspection, measurement and control
Specifications
| Field of View (FOV) | : 80 to 4.5 mm | |
| Optical magnification | : Comparable to 25x-50x | |
| Camera Model | : Inverted | |
| XY Stage | : Fixed | |
| Optical Zoom | : Auto-Focus & Auto-Callibration | |
| Illumination | : Auto-Illumination | |
| Module | : Process Tracking Module | |
| Data View Module | ||
| Min & Max Action Limit Module | ||
| Report Generator Module | ||
| Approximate dimensions | : H x W x D: 35 x 24.5 x 22 cm (13.8 x 9.6 x 8.7") 4 Kg / 9 lbs | |
| Certification | : UKAS Certificate |
StrucureExpert Weld-11
The simple way to precise weld bead inspection, measurement and control
Specifications
| Field of View (FOV) | : 8.27 to 0.68 mm | |
| Optical magnification | : Comparable to 20x-240x | |
| Camera Model | : Inverted | |
| XY Stage | : Fixed | |
| Optical Zoom | : Auto-Focus & Auto-Callibration | |
| Illumination | : Auto-Illumination | |
| Module | : Process Tracking Module | |
| Data View Module | ||
| Min & Max Action Limit Module | ||
| Report Generator Module | ||
| Approximate dimensions | : H x W x D: 42.5 x 24.8 x 22 cm (16.7 x 9.8 x 8.7") 6 Kg / 13 lbs | |
| Certification | : UKAS Certificate |
