Consumable Grinding or Polishing
Produk / Struers Metallography / Consumable / Consumable Grinding or Polishing
Consumables Plane Grinding
| Descriptions | Part No. | |||||
| Grinding Stones | ||||||
| Grinding Stone PAMST | Aluminium oxide grinding stone, for plane grinding of metals on Prepamatic and Prepamatic-2. Grit 150. 200 mm (8") dia. | 40800005 | ||||
| Grinding Stone 6A36 #150 | Aluminium oxide grinding stone, for fast plane grinding of very hard steels/steels containing many carbides on AbraPlan and MAPS. Grit 150, 356 mm dia. | 40800177 | ||||
| Grinding Stone 4A36 #150 | Aluminium oxide grinding stone, for fast plane grinding of metals >HV 250 on AbraPlan and MAPS. Grit 150. 356 mm (14") dia. | 40800010 | ||||
| Grinding Stone 3A36 #150 | Aluminium oxide grinding stone, for fast plane grinding of nickel -based alloys (turbine blades) and stainless steels on AbraPlan and MAPS. Grit 150, 356 mm dia. | 40800178 | ||||
| Grinding Stone 2S36 #150 | Silicon carbide grinding stone, for fast plane grinding of non-ferrous metals on AbraPlan and MAPS. Grit 150. 356 mm (14") dia. | 40800074 | ||||
| Grinding Stone 6A27 #150 | Aluminium oxide grinding stone, for fast plane grinding of very hard steels/steels containing many carbides on Hexamatic. Grit 150, 270 mm dia. | 40800181 | ||||
| Grinding Stone 4A27 #150 | Aluminium oxide grinding stone, for fast plane grinding of metals >HV 250 on Hexamatic. Grit 150, 270 mm dia. | 40800179 | ||||
| Grinding Stone 3A27 #150 | Aluminium oxide grinding stone, for fast plane grinding of nickel based alloys (turbine blades) and stainless steels on Hexamatic. Grit 150, 270 mm dia. | 40800182 | ||||
| Grinding Stone 2S27 #150 | Silicon carbide grinding stone, for fast plane grinding of non-ferrous metals on Hexamatic. Grit 150, 270 mm dia. | 40800180 | ||||
| Diamond Grinding Disc | ||||||
| Diamond Grinding Disc 8D27 #120 | Resin bonded diamond grinding disc, for fast plane grinding of ceramics and sintered carbides on Hexamatic. Grit 120, 270 mm dia. | 40800183 | ||||
| Diamond Grinding Disc 8D36 #120 | Resin bonded diamond disc, grooved in a square pattern. For plane grinding of ceramics and sintered carbides on AbraPlan and MAPS. Grit 120. 356 mm (14") dia. | 40800202 | ||||
| Diamond Cup Wheels, Discoplan | ||||||
| Diamond Cup Wheels M0P15 | For grinding of hard, brittle materials on Discoplan-TS. Metal bonded. 70 µm. 150 mm (6") dia. x 31.75 mm dia. | 40800013 | ||||
| Diamond Cup Wheels B0P15 | For grinding of hard, ductile materials on Discoplan-TS. Resin bonded. 35 µm. 150 mm (6") dia. x 31.75 mm dia. | 40800014 | ||||
| Diamond Cup Wheels for Accutom | ||||||
| Diamond Cup Wheels B0P10 | For grinding of hard and ductile materials on Accutom-100 and Accutom-50. Resin bond. Special flange set for cup wheel (06176902 for Accutom-100 or 05016901 for Accutom-50) is required. 40 µm. 100 mm (4") dia. x 12.7 mm dia. | 40800083 | ||||
| Diamond Cup Wheels M0P10 | For grinding of hard and brittle materials on Accutom-100 and Accutom-50. Metal bond. Special flange set for cup wheel (06176902 for Accutom-100 or 05016901 for Accutom-50) is required. 91 µm. 100 mm (4") dia. x 12.7 mm dia. | 40800082 | ||||
| For grinding of hard and brittle materials on Accutom-100 and Accutom-50. Metal bond. Special flange set for cup wheel (06176902 for Accutom-100 or 05016901 for Accutom-50) is required. 40 µm. 100 mm (4") dia. x 12.7 mm dia. | 40800185 | |||||
| For grinding of hard and brittle materials on Accutom-100 and Accutom-50. Metal bond. Special flange set for cup wheel (06176902 for Accutom-100 or 05016901 for Accutom-50) is required. 25 µm. 100 mm (4") dia. x 12.7 mm dia. | 40800184 | |||||
| Sic Cup Wheels 10P13 | SiC Cup Wheel, for grinding of ductile materials on Accutom-100 and Accutom-50. Resin bond. 125 µm. 130 mm (5") dia. x 12.7 mm dia. | 40800120 | ||||
| Diamond Cup Wheels M0P15 | For grinding of hard and brittle materials on Accutom-100. Metal bond. Special flange set for cup wheel (06176902) is required. 91 µm. 150 mm (6") dia. x 12.7 mm dia. | 40800199 | ||||
| For grinding of hard and brittle materials on Accutom-100. Metal bond. Special flange set for cup wheel (06176902) is required. 40 µm. 150 mm (6") dia. x 12.7 mm dia. | 40800200 | |||||
| Petrodisc-M | ||||||
| Petrodisc-M | Disc for one-step fine grinding of materials >HV 150, using diamonds. 230 mm (9") dia. | 02426913 | ||||
| Others | ||||||
| Diamond Point | Diamond point for dressing tool. For Hexamatic, MAPS, AbraPlan-10/-20/-30, Prepamatic and Miniplan. 1 pcs. 5 mm dia. |
40800045 | ||||
| Diamond point for dressing tool. Use 40800045 on AbraPlan-10/-20/-30 for best planeness. 1 pcs. 8 mm dia. |
02606962 | |||||
| Diamond point for dressing tool, For Abraplan. 1 pcs. 8 mm dia. | 02606901 | |||||
| Dressing Stick | Aluminium oxide stick for truing and opening of diamond and CBN cut-off wheels, diamond grinding discs and the grinding discs in the MD-System (not for use with MD-Piano 2000/4000). 1pcs | 40800044 | ||||
| Dressing Stick MD-Piano 2000/4000 | Aluminium oxide stick for truing and opening of MD-Piano 2000 and 4000 diamond fine grinding discs. Dressing stick MD-Piano 2000/4000. 1pcs | 40800186 | ||||

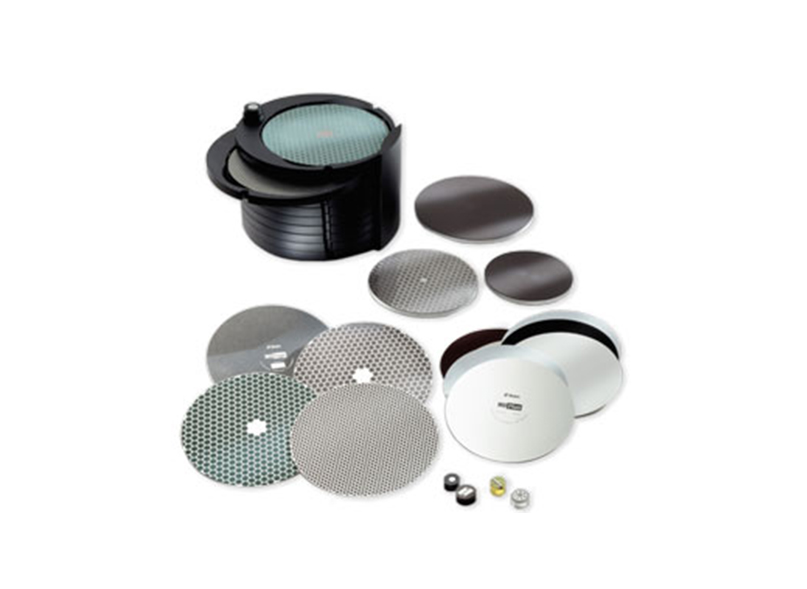

Consumables MD Grinding
Descriptions |
Recommended Use |
Indicative lifetime* |
200mm dia |
250mm dia |
300mm dia |
350mm dia |
| MD-Piano | ||||||
| MD-Piano 80: Resin bonded diamond disc that provides a surface finish comparable to 80 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 100 | 40800121 | 40800122 | 40800123 | 40800124 |
| MD-Piano 120: Resin bonded diamond disc that provides a surface finish comparable to 120 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 100 | 40800125 | 40800126 | 40800127 | 40800128 |
| MD-Piano 220: Resin bonded diamond disc that provides a surface finish comparable to 220 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 100 | 40800129 | 40800130 | 40800131 | 40800132 |
| MD-Piano 500: Resin bonded diamond disc that provides a surface finish comparable to 500 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 100 | 40800133 | 40800134 | 40800135 | 40800136 |
| MD-Piano 1200: Resin bonded diamond disc that provides a surface finish comparable to 1200 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 100 | 40800137 | 40800138 | 40800139 | 40800140 |
| MD-Piano 2000: Resin bonded diamond disc that provides a surface finish comparable to 1200 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 300 | 40800141 | 40800142 | 40800143 | 40800144 |
| MD-Piano 4000: Resin bonded diamond disc that provides a surface finish comparable to 1200 grit SiC paper. | Plane grinding of hard materials > 150 HV range such as ferrous metals, concrete, ceramics. | 300 | 40800145 | 40800146 | 40800147 | 40800148 |
| MD-Primo | ||||||
| MD-Primo 120: A metal disc with a SiC abrasive embedded in a resin bond. It provides a surface finish comparable to 120 grit SiC paper. | Plane grinding of soft materials in the 40 - 250 HV range like non-ferrous metals (aluminum, copper, etc.) and soft materials. | 50 | 40800085 | 40800086 | 40800087 | 40800188 |
| MD-Primo 220: A metal disc with a SiC abrasive embedded in a resin bond. It provides a surface finish comparable to 120 grit SiC paper. | Plane grinding of soft materials in the 40 - 250 HV range like non-ferrous metals (aluminum, copper, etc.) and soft materials. | 50 | 40800088 | 40800089 | 40800090 | |
| MD-Molto | ||||||
| MD-Molto 220: Resin bonded diamond disc that provides a surface finish comparable to 220 grit SiC paper. | Plane grinding of aluminum alloys in the 40 - 2000 HV range. | 100 | 40800187 | 40800188 | 40800189 | 40800190 |
| MD-Mezzo | ||||||
| MD-Mezzo 220: Resin bonded diamond disc that provides a surface finish comparable to 220 grit SiC paper. | Plane grinding of titanium alloys in the 150 - 450 HV range. | 100 | 40800191 | 40800192 | 40800193 | 40800194 |
| All MD-System Grinding Discs use water for cooling just like SiC paper. They all provide high and consistent material removal rate, and produce exceptionally flat specimens. | ||||||
| Descriptions | Contents | 200mm dia | 250mm dia | 300mm dia | 350mm dia | |
| MD-Allegro | ||||||
| Maintenance-free composite disc for one-step fine grinding of materials >HV 150, using diamonds. For magnetic fixation on MD-Disc | 1 | 40500134 | 40500135 | 40500136 | - | |
| 5 | 40500065 | 40500066 | 40500067 | 40500140 | ||
| MD-Largo | ||||||
| Maintenance-free composite disc for one-step fine grinding of materials >HV 40, using diamonds. For ductile materials like non-ferrous metals and stainless steel, but also for brittle materials like ceramics and hard minerals. For magnetic fixation on MD-Disc | 1 | 40500137 | 40500138 | 40500139 | - | |
| 5 | 40500097 | 40500098 | 40500099 | 40500141 | ||
| Diamond Pads | ||||||
| Metal bonded diamond grinding pad, for grinding of hard materials (>HV 600). Self-adhesive | 250µm | 40800025 | 40800033 | 40800037 | - | |
| 125µm | 40800026 | 40800034 | 40800038 | - | ||
| 40µm | 40800027 | 40800035 | 40800039 | - | ||
| 20µm | 40800028 | 40800036 | 40800040 | - | ||
