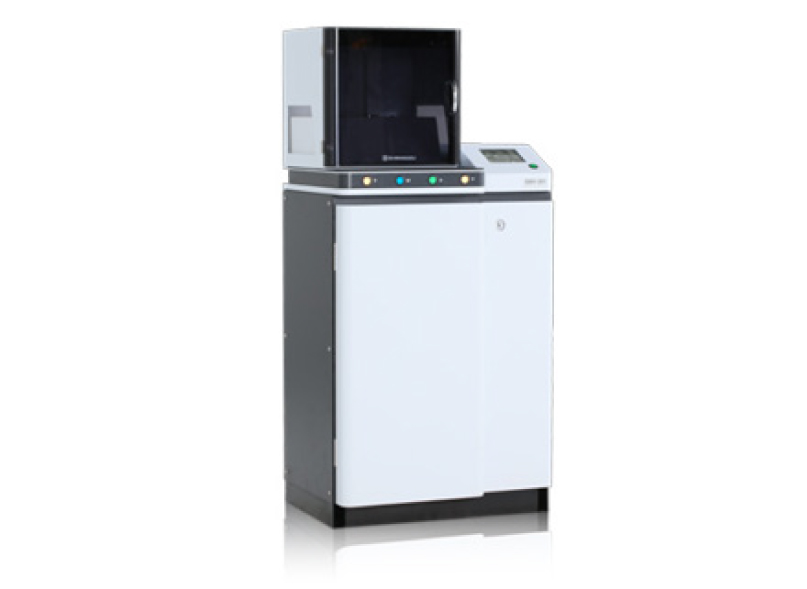

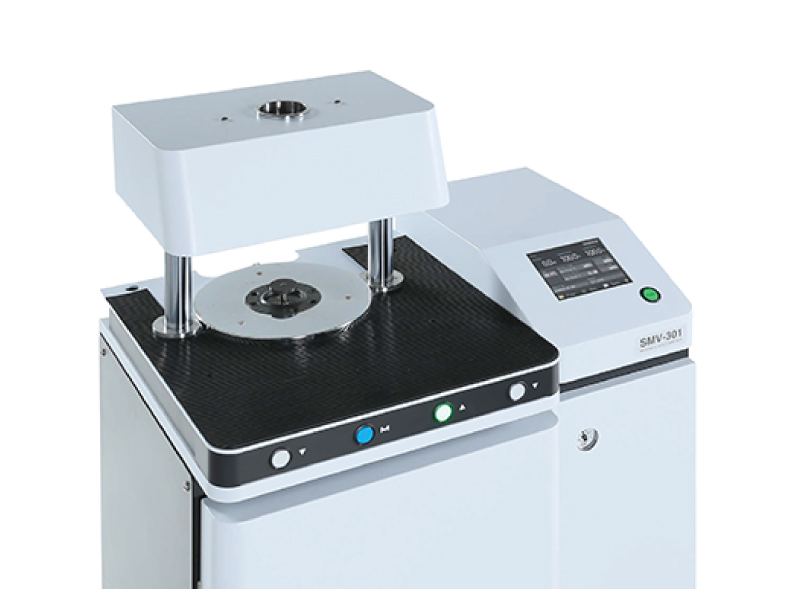

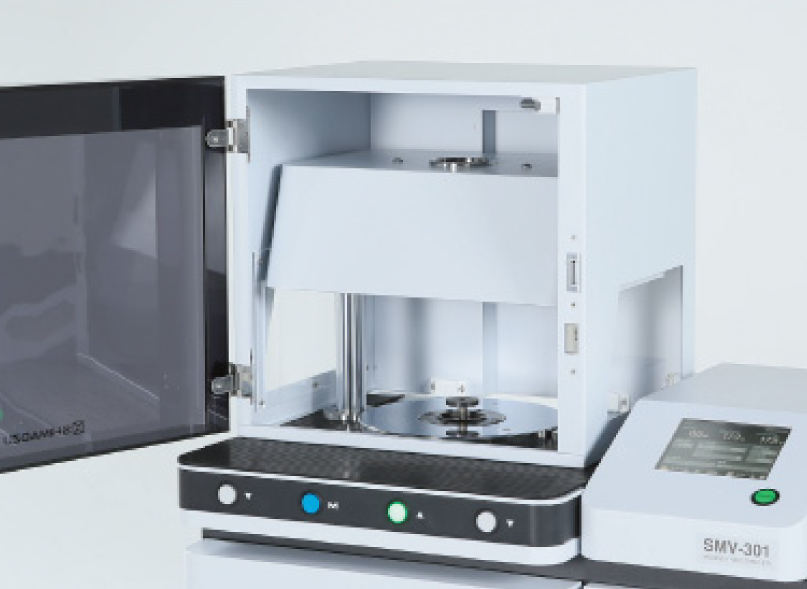

SMV-301
Produk / Shimadzu Material Testing Machine / Mooney Viscometer / SMV-301
SMV-301
Specifications
| Applicable Standards | : | JIS K 6300-1 ISO 289-1,2,3,4 ASTM D 1646 | |
| Mooney Viscosity Measurement Range | : | 200 M max. (400 M optionally supported) | |
| Mooney Viscosity Detection Method | : | Load cell | |
| Die | Type | : | V-groove die (rectangular section groove die available as an option) |
| Pressure | : | 11500 ±500 N in normal use | |
| Pressurizing Method | : | Actuation by air cylinder | |
| Test Temperature | Control Range | : | (20 ℃above room temp.) to 200 °C, in 0.1 ℃ steps |
| Indication Precision | : | ±1 % | |
| Temperature Detector | : | Platinum resistance temperature sensor Pt100, Class A | |
| Rotor | Type | : | Large (Small rotor available as an option) |
| Rotor Disengagement | : | Automatic | |
| Rotation Speed | : | 0.209 rad/s (2 rpm) | |
| Rotation Speed Precision | : | ±1 % | |
| Drive Motor | : | Synchronous motor | |
| Mooney Viscosity Sampling Interval | : | 100 msec min. | |
| Control PC* | Compatible Operating Systems | : | Windows 7 (32bit / 64bit) |
| Communication Interface | : | One USB 2.0 port | |
| Display | : | Min. 1280 × 1024 pixel resolution recommended | |
| Main Unit Dimensions and Weight | Dimensions | : | W700 mm x D510 mm x H1440 mm |
| Weight | : | Approx. 220 kg | |
| Utilities | Power Requirements | : | 100 V AC, 50 / 60 Hz, 1500 VA |
| Compressed Air Supply | : | Approx. 0.5 to 0.7 MPa Provide a supply line that can be connected with the coupler (R1/4 socket with female threads) included |
|
| Temperature | : | 10 to 35 ℃ | |
| Humidity | : | 60 % max. (no condensation) | |
SMV-301RT
Specifications
| Applicable Standards | : | JIS K 6300-1 ISO 289-1,2,3,4 ASTM D 1646 | |
| Mooney Viscosity Measurement Range | : | 200 M max. (400 M optionally supported) | |
| Mooney Viscosity Detection Method | : | Load cell | |
| Die | Type | : | V-groove die (rectangular section groove die available as an option) |
| Pressure | : | 11500 ±500 N in normal use | |
| Pressurizing Method | : | Actuation by air cylinder | |
| Test Temperature | Control Range | : | (20 ℃above room temp.) to 200 °C, in 0.1 ℃ steps |
| Indication Precision | : | ±1 % | |
| Temperature Detector | : | Platinum resistance temperature sensor Pt100, Class A | |
| Rotor | Type | : | Large (Small rotor available as an option) |
| Rotor Disengagement | : | Automatic | |
| Rotation Speed | : | 0.0104 to 2.092 rad/s (0.1 to 20 rpm) | |
| Rotation Speed Precision | : | ±1 % | |
| Drive Motor | : | Servo motor | |
| Mooney Viscosity Sampling Interval | : | 100 msec min. | |
| Control PC* | Compatible Operating Systems | : | Windows 7 (32bit / 64bit) |
| Communication Interface | : | One USB 2.0 port | |
| Display | : | Min. 1280 × 1024 pixel resolution recommended | |
| Main Unit Dimensions and Weight | Dimensions | : | W700 mm x D510 mm x H1440 mm |
| Weight | : | Approx. 230 kg | |
| Utilities | Power Requirements | : | 100 V AC, 50 / 60 Hz, 1500 VA |
| Compressed Air Supply | : | Approx. 0.5 to 0.7 MPa Provide a supply line that can be connected with the coupler (R1/4 socket with female threads) included |
|
| Temperature | : | 10 to 35 ℃ | |
| Humidity | : | 60 % max. (no condensation) | |
