Special Application
Produk / Struers Metallography / Consumable / Special Application
Controled Material Removal
| Controled Material Removal | ||||||
| Descriptions | Contents | Part No. | ||||
| TargetSystem Consumables | ||||||

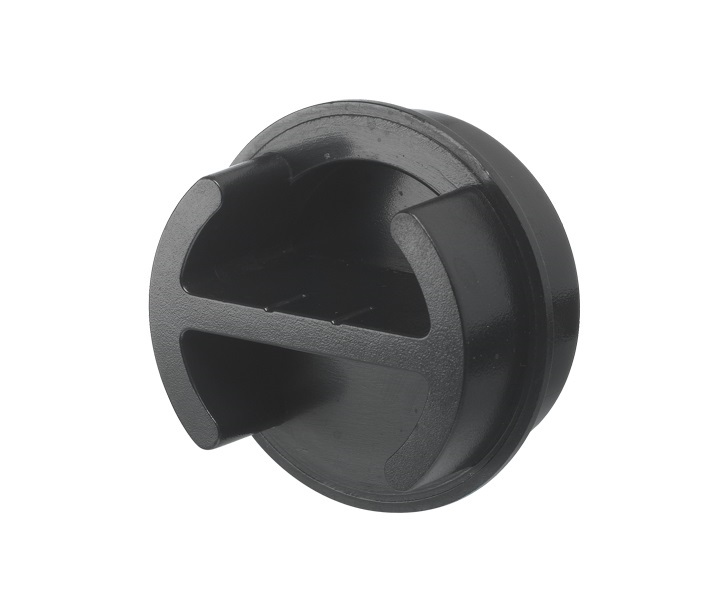

| Sample Chair | 30 mm dia. adapter for cross-sectioning on TargetMaster. To be inserted into TargetGrip (05756916). Max. specimen size 23 x 20.5 mm. Disposable | 50 pcs | 05756914 | |||
| 40 mm dia. adapter for cross-sectioning on TargetMaster. To be inserted into TargetGrip (05756901). Max. specimen size 29 x 20.5 mm. Disposable | 50 pcs | 05756908 | ||||
| Elevated Sample Chair | 40 mm Adapter for cross-sectioning (disposable), 50 pcs. External sample platform for use with TargetX. Max sample size ca 5x15mm. Use of this sample chair requires modification of TargetMaster. |
1 | 05756917 | |||
| Mould Insert | Mould insert for use with 40 mm dia. mount cups. Max specimen size 35 x 20 mm. |
50 pcs | 05756912 | |||

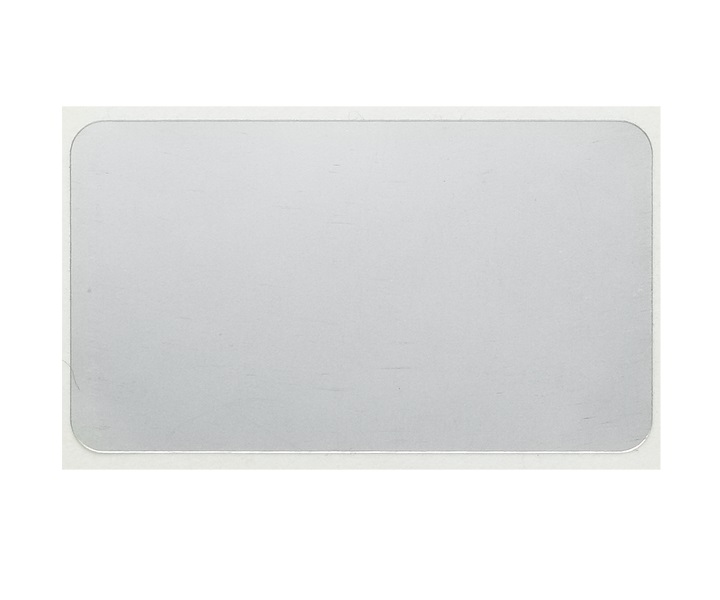

| Resin Barrier | Metal labels to be used together with Sample chair (05756908 and 05756914). | 50 pcs | 05756907 | |||
| ViaKit/-Basic Consumables | ||||||

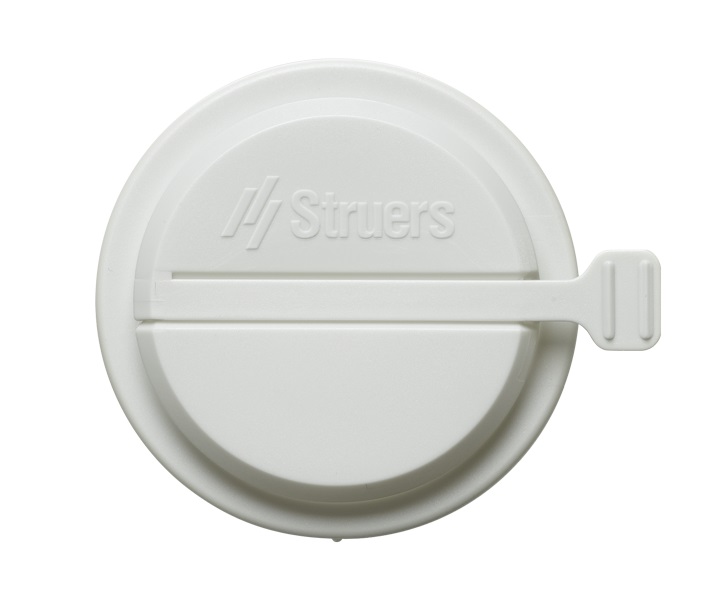

| ViaKit End Caps | End caps for use with ViaKit Mounting Rings (40300055) | 250 pcs | 40300056 | |||
| ViaKit Positioning Pins | Positioning pins, 1.98 mm dia., length 43 mm. Suitable for use with ViaKit and AccuStop-40/Flangeform | 500 pcs | 40300057 | |||
Non-destructive Testing
| Non-destructive Testing | ||||||
| Grinding | ||||||

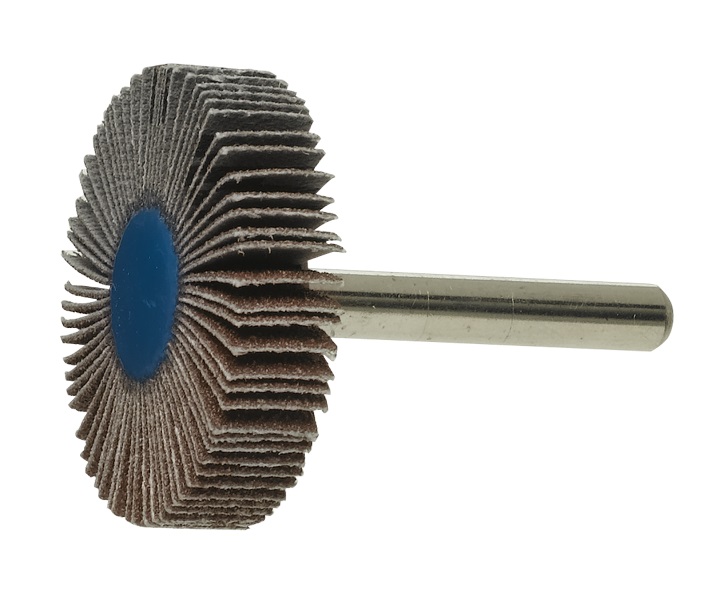

| Flapper Wheel | For coarse grinding with TransPol Grit 80. 40 mm (1½") dia. x 10 mm, shaft 6 mm dia. 5 pcs. |
5 pcs | 40800053 | |||

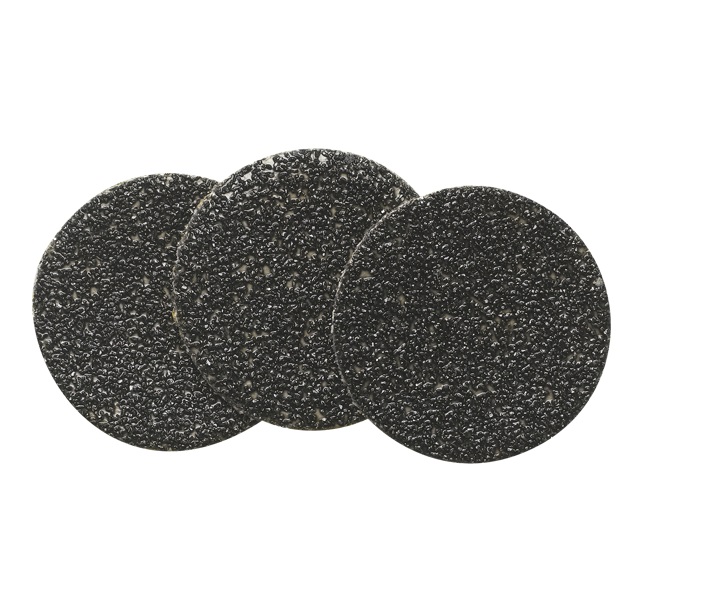

| Silicon Carbide Paper | Silicon carbide grinding paper, for grinding on Transpol-2 and Transpol. Self-adhesive Grit 60. 32 mm (1¼") dia. |
100 pcs | 40400049 | |||
| Silicon carbide grinding paper, for grinding on Transpol-2 and Transpol. Self-adhesive Grit 120. 32 mm (1¼") dia. |
100 pcs | 40400129 | ||||
| Silicon carbide grinding paper, for grinding on Transpol-2 and Transpol. Self-adhesive Grit 240. 32 mm (1¼") dia. |
100 pcs | 40400130 | ||||
| Silicon carbide grinding paper, for grinding on Transpol-2 and Transpol. Self-adhesive Grit 500. 32 mm (1¼") dia. |
100 pcs | 40400131 | ||||
| Polishing Cloth | ||||||

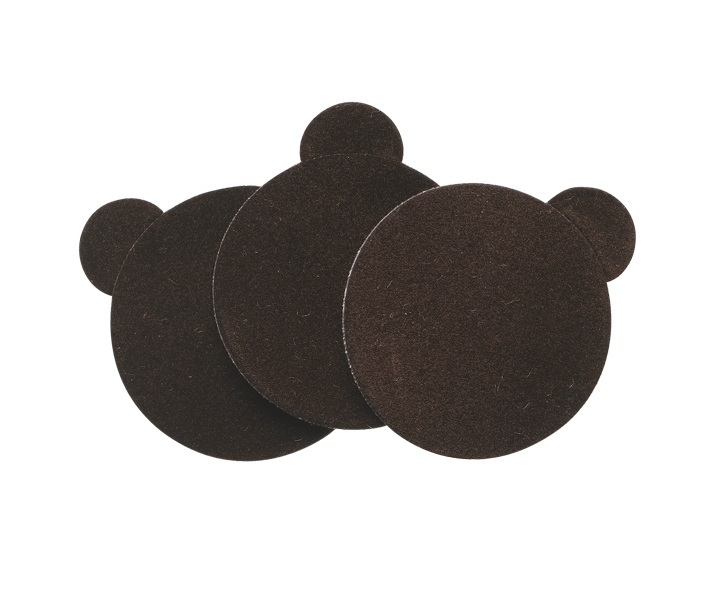

| DP-Dur | Cloth for diamond polishing. For use with Transpol. Satin woven silk. Self-adhesive 32 mm (1¼") dia. |
25 pcs | 40500040 | |||
| DP-Mol | Cloth for diamond polishing. For use with Transpol. Woven wool. Self-adhesive 32 mm (1¼") dia. |
25 pcs | 40500041 | |||
| DP-Nap | Cloth for diamond polishing. For use with Transpol. Short synthetic nap. Self-adhesive 32 mm (1¼") dia. |
25 pcs | 40500042 | |||
| OP-Felt | Cloth for oxide polishing. For use with Transpol. Thick felt. Self-adhesive 32 mm (1¼") dia. |
25 pcs | 40500043 | |||
| DP-Dac | Cloth for diamond polishing. For Transpol-2 and Transpol. Satin woven acetate. Self-adhesive 32 mm (1¼") dia. |
25 pcs | 40500145 | |||
| Polishing Chamber | Flexible type. For MoviPol-3 and -5 | 50 pcs | 03926904 | |||
| Transcopy | ||||||

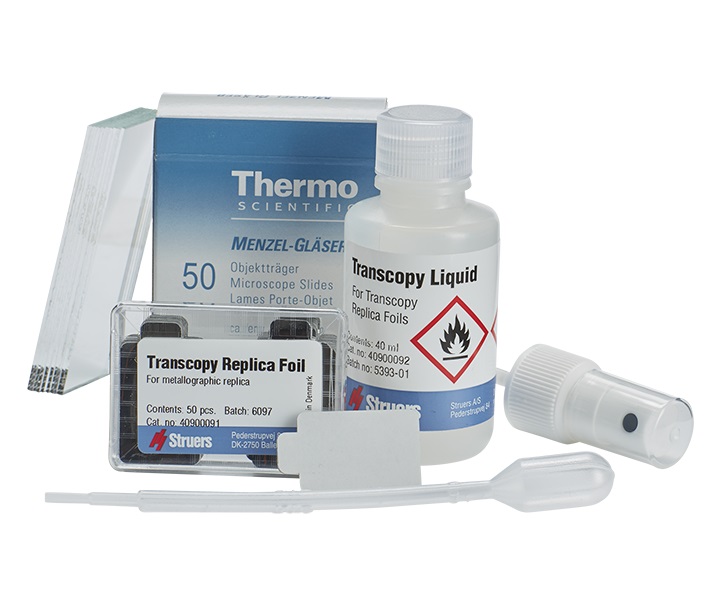

| Transcopy Kit | For making replica of polished and etched surfaces. Self-adhesive reflective Transcopy Replica Foil creates a permanent replication of microstructures, cracks and defects for future analysis in the laboratory 50 pcs. 20 x 30 mm replica foils, 40 ml liquid, spray nozzle, pipette and microscope slides |
Set | 40900090*** | |||
| Transcopy Liquid | For Transcopy Replica Foils (40900091) | 40ml | 40900092*** | |||
| Transcopy Replica Foils | Reflective metallographic replica foils. Self-adhesive. Foil thickness app. 280-300 µm. Transcopy Liquid (40900092) is ordered separately. 20 x 30 mm. | 50 pcs | 40900091 | |||
| Repliset | ||||||
| Repliset-F1 | Replication system. Particularly useful for replicating horizontal or sloping surfaces in low temperature conditions or where rapid results are required. Fluid rapid curing compound with working life of 0.5 - 1 min. and curing time of 4 min. at 25° C. Dispensing gun (40900066) and static-mixing nozzles (40900088) are ordered separately | 1 Catridges | 40900069 | |||
| 5 Catridges | 40900047 | |||||

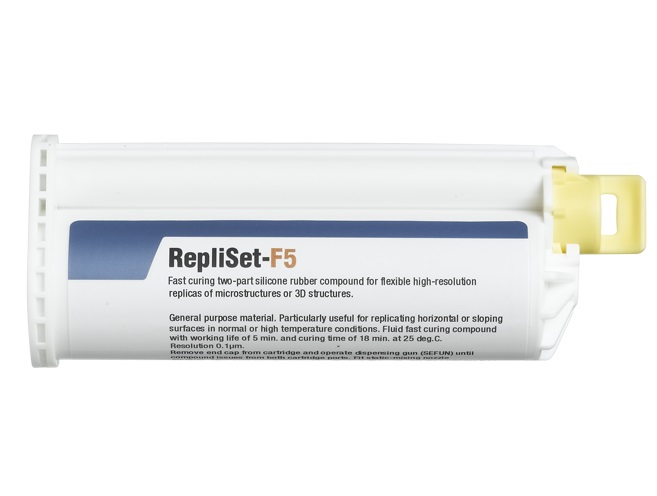

| Repliset-F5 | Replication system. General-purpose material. Particularly useful for replicating horizontal or sloping surfaces in normal or high temperature conditions. Fluid fast curing compound with working life of 5 min. and curing time of 18 min. at 25° C. Dispensing gun (40900066) and static-mixing nozzles (40900088) are ordered separately | 1 Catridges | 40900068 | |||
| 5 Catridges | 40900046 | |||||
| Repliset-T1 | Replication system. Particularly useful for replicating vertical or overhead surfaces in low temperature conditions or where rapid results are required. Thixotropic rapid curing compound with working life of 0.5 - 1 min. and curing time of 4 min. at 25° C. Dispensing gun (40900066) and static-mixing nozzles (40900088) are ordered separately | 1 Catridges | 40900071 | |||
| 5 Catridges | 40900049 | |||||
| Repliset-T3 | Replication system. General-purpose material. Particularly useful for replicating vertical or overhead surfaces in normal or high temperature conditions. Thixotropic fast curing compound with working life of 3 min. and curing time of 10 min. at 25° C. Dispensing gun (40900066) and static-mixing nozzles (40900088) are ordered separately | 1 Catridges | 40900070 | |||
| 5 Catridges | 40900048 | |||||
| Repliset-GF1 | Replication system especially for comparator macroscopy and metrology. Particularly useful for replicating horizontal or sloping surfaces and filling holes. Fluid rapid curing compound with working life of 0.5 - 1 min. and curing time of 4 min. at 25° C. Dispensing gun (40900066) and static-mixing nozzles (40900088) are ordered separately | 1 Catridges | 40900078 | |||
| 5 Catridges | 40900076 | |||||
| Repliset-GT1 | Replication system especially for comparator macroscopy and metrology. Particularly useful for replicating vertical or overhead surfaces. Thixotropic rapid curing compound with working life of 0.5 - 1 min. and curing time of 4 min. at 25° C. Dispensing gun (40900066) and static-mixing nozzles (40900088) are ordered separately | 1 Catridges | 40900079 | |||
| 5 Catridges | 40900077 | |||||
| RepliFix | ||||||
| RepliFix-2 | Specially formulated hand mixed fast curing two-part silicone rubber. Bonds to RepliSet. Particularly useful in combination with RepliSet for producing a rigid backing. It can be used directly for moulding of surface shape for profile measurement. For low temperature conditions or where rapid results are required. Working life of 2-3 min. and curing time of 10 min. at 25° C 250 g RepliFix-2, Yellow, 250 g RepliFix-2, Blue, protective gloves |
Set | 40900084 | |||

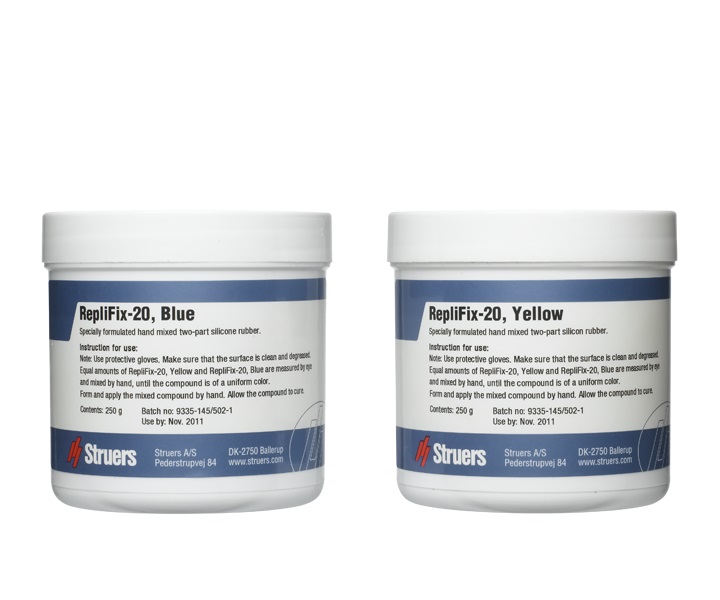

| RepliFix-20 | Specially formulated hand mixed two-part silicone rubber. Bonds to RepliSet. Particularly useful in combination with RepliSet for producing a rigid backing. It can be used directly for moulding of surface shape for profile measurement. For high temperature conditions or for taking replicas of complicated geometry or large areas. Working life of 20 min. and curing time of 60 min. at 25° C 250 g RepliFix-20, Yellow, 250 g RepliFix-20, Blue, protective gloves |
Set | 40900086 | |||
| Static-mixing Nozzles, Backing Material, Nozzle Tips | ||||||
| Static-mixing Nozzles | For RepliSet replication compound in 50 ml cartridges | 35 pcs | 40900088 | |||
| Backing Slides | For RepliSet replication system. A flexible plastic slide, which bonds to the replica and ensures a flat back to the replica. For levelling of replicas to assist microscopic examination, as dimensional support for metrology and for well-ordered labelling, transport and storage of RepliSet replicas 26 x 76 x 1 mm |
50 pcs | 40900087 | |||
| For RepliSet replication system. A flexible plastic slide, which bonds to the replica and ensures a flat back to the replica. For levelling of replicas to assist microscopic examination, as dimensional support for metrology and for well-ordered labelling, transport and storage of RepliSet replicas 58 x 40 x 1 mm |
50 pcs | 40900064 | ||||
| Backing Paper | For RepliSet replication system. Bonds to the replica and facilitates labelling, handling and the levelling of replicas to assist microscopic examination 60 x 70 mm. 100 pcs. |
100 pcs | 40900062 | |||
| For RepliSet replication system. Bonds to the replica and facilitates labelling, handling and the levelling of replicas to assist microscopic examination. For cutting up to the required size A4 (210 x 297 mm). 10 pcs. |
10 pcs | 40900063 | ||||
| Nozzle Tips | For replicating flat surfaces using RepliSet (particularly with RepliSet-T types). Fishtail spreaders, 10 mm width. To be mounted on 50 ml static-mixing nozzle (40900088) | 30 pcs | 40900089 | |||
| For replicating small holes using RepliSet. Luer needle, app. 1 mm dia., 30-38 mm long. Reusable several times. To be mounted on 50 ml static-mixing nozzle (40900088) | 10 pcs | 40900060 | ||||
| For replicating larger holes using RepliSet. Flexible hose, 6 mm dia., 100 mm long. Reusable several times. To be mounted on 50 ml static-mixing nozzle (40900088) | 10 pcs | 40900061 | ||||
Mineralogy
| Mineralogy | ||||||
| Silicon Carbide Powder | ||||||
| Grit 120 | For lapping mineralogical or ceramic specimens. To be used on cast iron lapping disc | 500g | 40701005 | |||
| Grit 220 | 500g | 40701006 | ||||
| Grit 320 | 500g | 40701007 | ||||
| Grit 400 | 500g | 40701008 | ||||
| Grit 600 | 500g | 40701009 | ||||
| Grit 800 | 500g | 40701010 | ||||
| Grit 1000 | 300g | 40701021 | ||||
| Grit 1200 | 300g | 40701022 | ||||
| Glass Slides | ||||||
| Standar Slides | Standard Slides for thin sections, with ground edges. 1.2 - 1.5 mm thick 27 x 46 mm. |
100 pcs | 40100001 | |||
| Standard Slides for thin sections, with ground edges. 1.2 - 1.5 mm thick 28 x 48 mm. |
100 pcs | 40701018 | ||||
| Microcover Glass | To be used for covering thin sections 24 x 32 mm. |
100 pcs | 40701020 | |||
| Adhesives | ||||||
| TriPod Wax | Removable resin for mounting of specimens on TriPod Sample Mounts | 1 stick | 40100005 | |||
| Eukitt | Removable resin for fixation of cover glass on thin sections | 500ml | 40100004*** | |||
| Others | ||||||
| Adhesive Tape | To be used with specimen holder MAXAD (02606950), MAXSO (02606926), MAXSA (02606928), MAXON (02606927) or MAXAN (02606929). Double-sided adhesive tape in roll 38 mm wide. 25 m |
Set | 49900044 | |||
| Protecting Lacquer | For protecting the specimen surface 400 ml. In spray can |
Set | 49900012*** | |||
| Cleaner | For heavy duty cleaning. Solopol (Krestopol) 4 tubes of 250 ml |
Set | 49900027 | |||
| Concentrated Soap Solution | To be used in Hexamatic, Prepamatic, TargetMaster, MAPS and for ultrasonic cleaning | 1 L | 49900000 | |||
| Engraver Tip | Tungsten carbide tipped point for Engraver | 1 pc | 49900043 | |||
| Tape Kit - TenuPol | For electrolytic blanking of 3 mm / 2.3 mm specimens to be electrolytically thinned for TenuPol 1 roll of tape and 1 hole punch |
Set | 49900041 | |||
| Protection caps | ||||||
| 25 mm dia. | Plastic caps for cylindrical specimens or mounts | 100 pcs | 49900033 | |||
| 30 mm dia. | 100 pcs | 49900034 | ||||
| 40 mm dia. | 100 pcs | 49900035 | ||||
| 50 mm dia. | 100 pcs | 49900036 | ||||
| 1¼ mm dia. | 100 pcs | 49900063 | ||||
