LaboPol-60

LaboPol-30

LaboPol-20

LaboForce-50

LaboForce-100

LaboForce-Mi

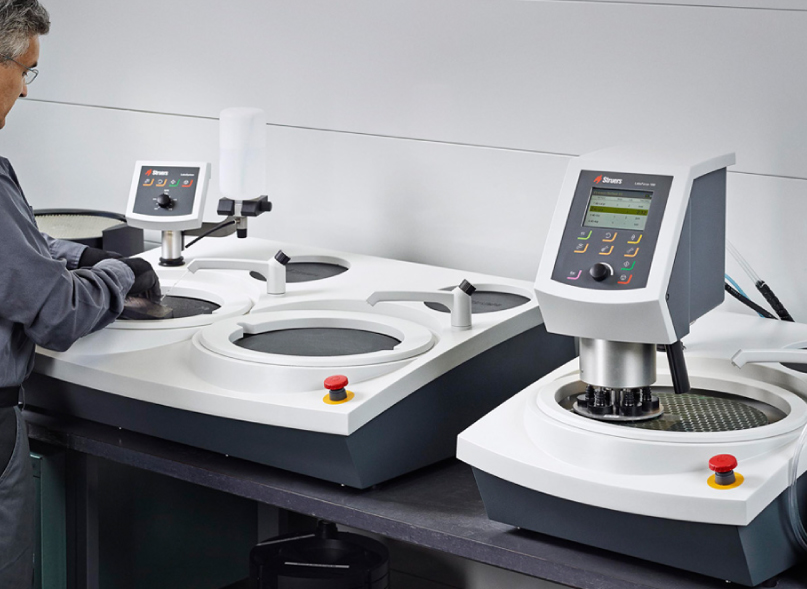

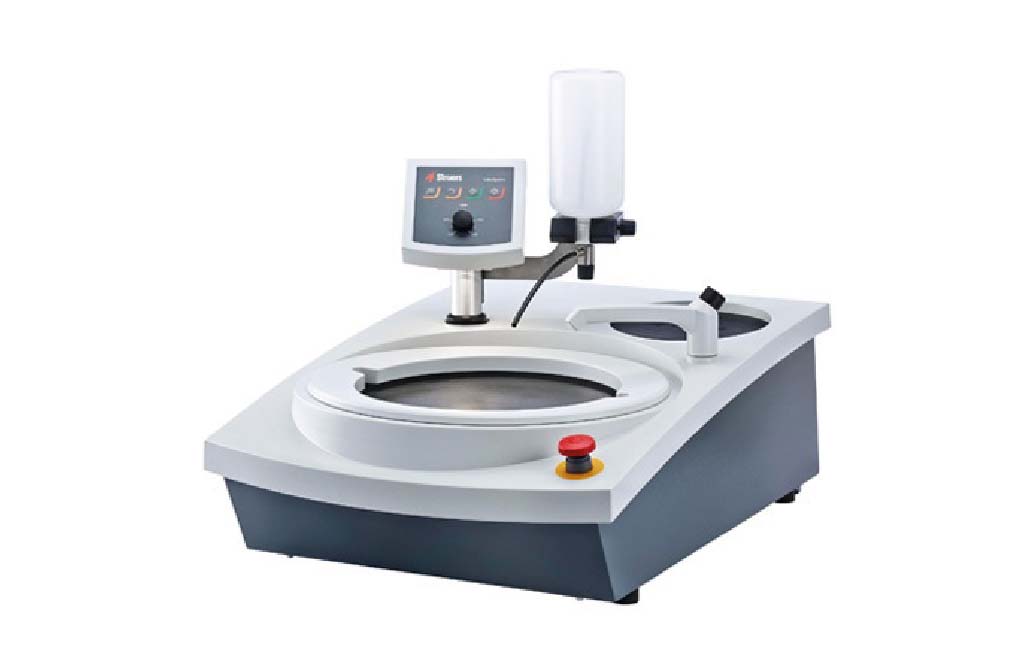

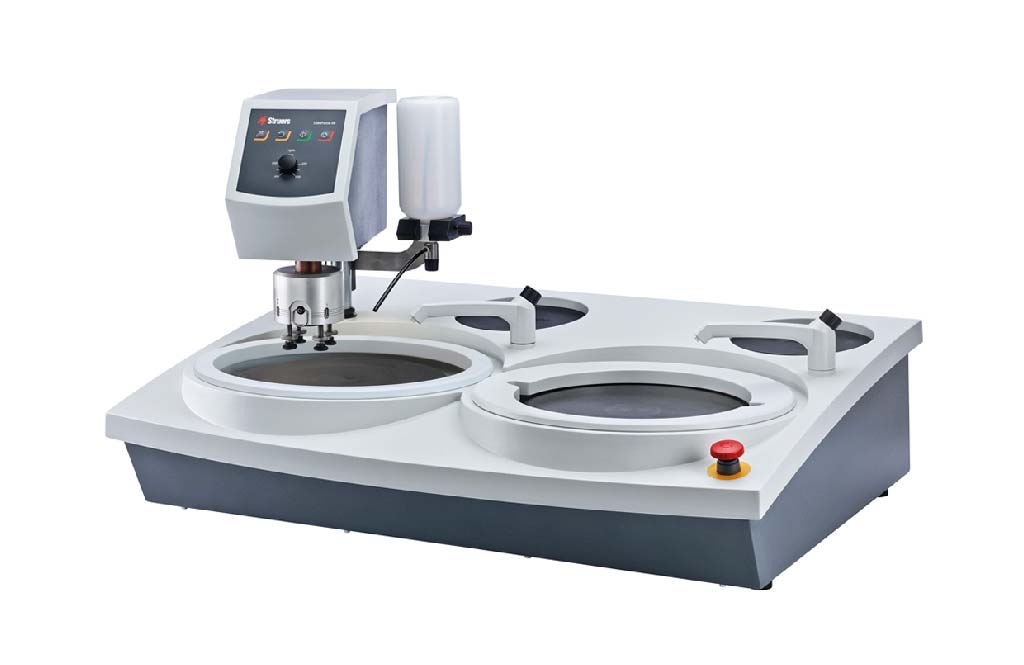

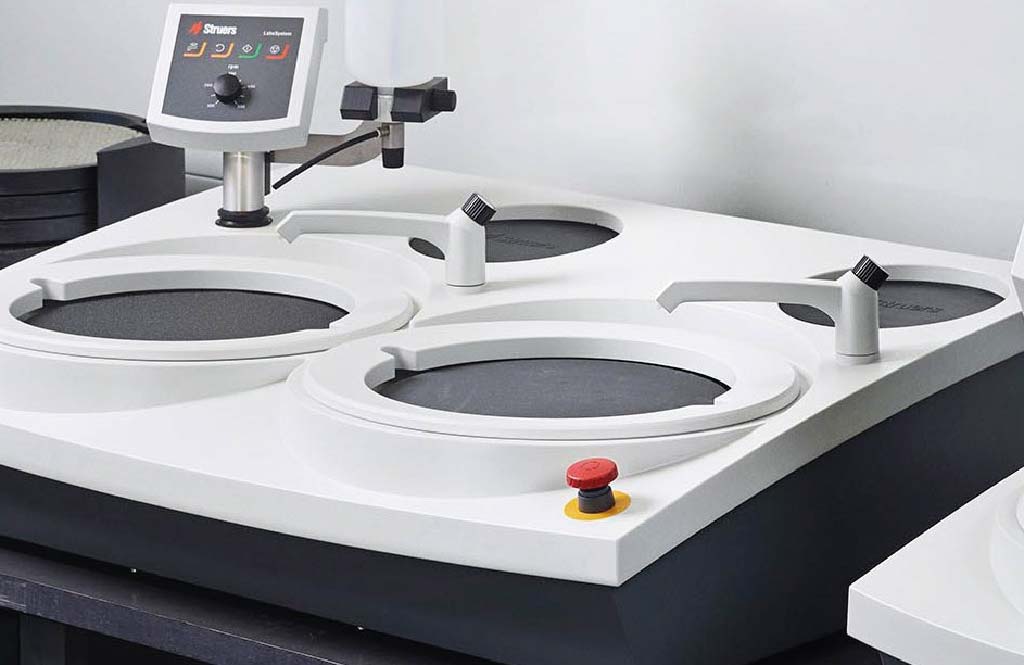

LaboPol-60

c/n

: 06346127

Grinding/polishing machine with variable speed (50-500 rpm) for 2 discs, 250 or 300 mm dia. Each disc with automatic water valve, splash guard and bowl liner. LaboUI control panel (06206901) and discs are ordered separately. One specimen mover LaboForce-50/-100 can be mounted



Technical data

Disc Diameter  : 250 mm / 10" or 300 mm / 12"
Speed  : 50 - 500 rpm
Rotational direction  :Counter-clockwise
Motor power, continuous (S1)  : 750 W / 1 HP
Torque, @300 rpm  : >24 Nm
Safety    : Please refer to the Declaration of Conformity
Emergency stop  Designed to comply with : EN60204-1, Stop Category 0. EN ISO 13849-1, Performance Level c
Noise level At idle running, at a distance of 1.0 m / 39.4" from the machine : 52 dBA
Surrounding temperature   :  5 - 40 °C / 41 - 104 °F
Humidity    : Non condensing 0 - 95 % RH
Supply Voltage / frequency :  200 - 240 V / 50 - 60 Hz
Power inlet :  1-phase (N+L1+PE) or 2-phase (L1+L2+PE)
Power, nominal load :  1300 W
Power, idle :  16 W
Current, nom. :  5.7 A
Current, max. :  11.2 A
Pressure for tap water :  1-10 bar / 14.5 - 145 psi
Water inlet :  ½" or ¾"
Water outlet :  ø 30 mm / 1¼" ø 40 mm / 1½"
Recirculation Cooling System (option) : Cooling System 3 (50 l)
Air inlet (LaboForce-100) :  ø 6 mm / ¼"
Air pressure (LaboForce-100) :  6 - 10 bar / 87-145 psi
Dimensions and weight Width :  95 cm / 37.4"
Depth :  77.5 cm / 30.5"
Height (with LaboForce) :  32 cm / 12.6" (64.5 cm / 25.4")
Weight (with LaboForce) :  50 kg / 110 lbs (70.5 kg / 156 lbs)
Recommended dosing unit    : LaboDoser-100
Dosing (option)  Pumps / Bottles  : 4 suspensions / lubricants
Dimensions and weight Width : 15 cm / 5.9"
Depth : 30.6 cm / 12"
Height : 11.5 cm / 4.5"
Weight :  1.9 kg / 4.2 lbs

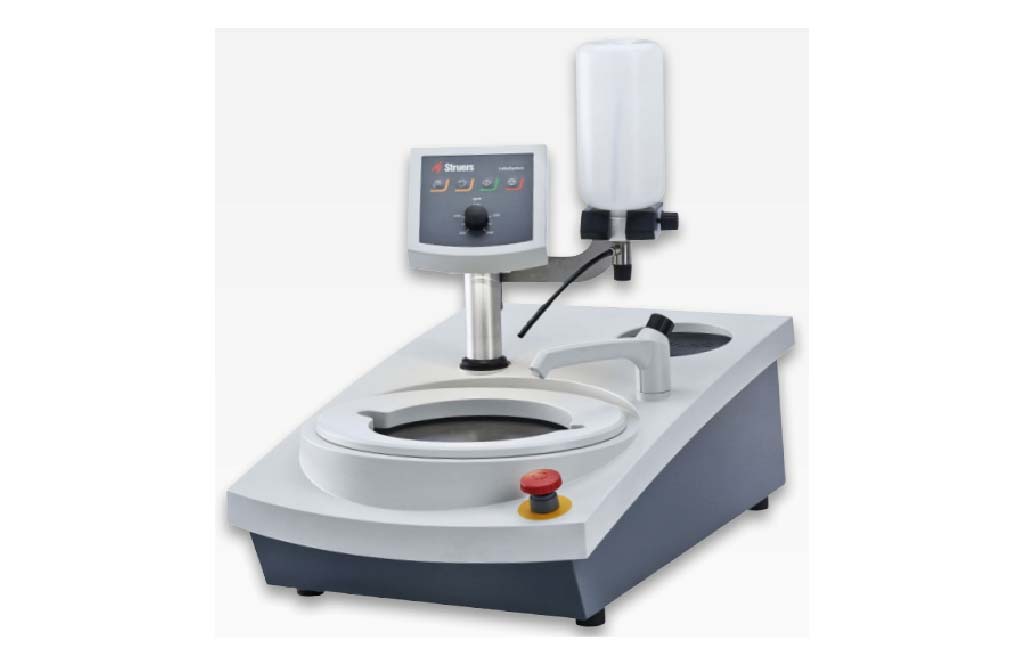

LaboPol-30

c/n : 06336127

Grinding/polishing machine with variable speed (50-500 rpm) for 230, 250 or 300 mm dia. disc. With automatic water valve. Supplied with splash guard and bowl liner. LaboUI control panel (06206901) and discs are ordered separately. Specimen mover LaboForce-50/-100/-Mi can be mounted



Technical data

Disc Diameter  : 250 mm / 10" or 300 mm / 12"
Speed  : 50 - 500 rpm
Rotational direction  :Counter-clockwise
Motor power, continuous (S1)  : 750 W / 1 HP
Torque, @300 rpm  : >24 Nm
Safety    : Please refer to the Declaration of Conformity
Emergency stop  Designed to comply with : EN60204-1, Stop Category 0. EN ISO 13849-1, Performance Level c
Noise level At idle running, at a distance of 1.0 m / 39.4" from the machine : 52 dBA
Surrounding temperature   :  5 - 40 °C / 41 - 104 °F
Humidity    : Non condensing 0 - 95 % RH
Supply Voltage / frequency :  200 - 240 V / 50 - 60 Hz
Power inlet :  1-phase (N+L1+PE) or 2-phase (L1+L2+PE)
Power, nominal load :  1300 W
Power, idle :  16 W
Current, nom. :  5.7 A
Current, max. :  11.2 A
Pressure for tap water :  1-10 bar / 14.5 - 145 psi
Water inlet :  ½" or ¾"
Water outlet :  ø 30 mm / 1¼" ø 40 mm / 1½"
Recirculation Cooling System (option) : Cooling System 3 (50 l)
Air inlet (LaboForce-100) :  ø 6 mm / ¼"
Air pressure (LaboForce-100) :  6 - 10 bar / 87-145 psi
Dimensions and weight Width :  51 cm / 20"
Depth :  76.5 cm / 30.1"
Height (with LaboForce) :  32 cm / 12.6" (64.5 cm / 25.4")
Weight (with LaboForce) :  33 kg / 73 lbs (53.5 kg / 118 lbs)
Recommended dosing unit    : LaboDoser-100
Dosing (option)  Pumps / Bottles  : 4 suspensions / lubricants
Dimensions and weight Width : 15 cm / 5.9"
Depth : 30.6 cm / 12"
Height : 11.5 cm / 4.5"
Weight :  1.9 kg / 4.2 lbs

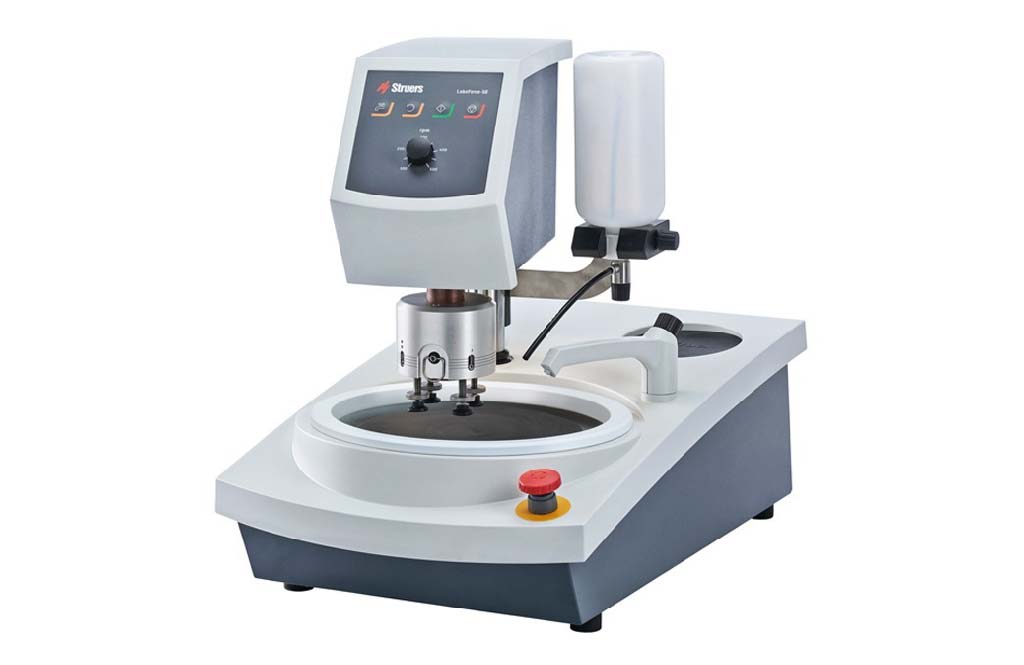

LaboPol-20

c/n : 06326127

Grinding/polishing machine with variable speed (50-500 rpm) for 200 mm dia. disc. With automatic water valve. Supplied with splash guard and bowl liner. LaboUI control panel (06206901) and discs are ordered separately. Specimen mover LaboForce-50 can be mounted



Technical data

Disc Diameter  : 200 mm / 8"
Speed  : 50 - 500 rpm
Rotational direction  :Counter-clockwise
Motor power, continuous (S1)  : 370 W / 0.5 HP 750 W / 1 HP
Torque, @300 rpm  : >12 Nm
Safety    : Please refer to the Declaration of Conformity
Emergency stop  Designed to comply with : EN60204-1, Stop Category 0. EN ISO 13849-1, Performance Level c
Noise level At idle running, at a distance of 1.0 m / 39.4" from the machine : 51 dBA
Surrounding temperature   :  5 - 40 °C / 41 - 104 °F
Humidity    : Non condensing 0 - 95 % RH
Supply Voltage / frequency :  200 - 240 V / 50 - 60 Hz
Power inlet :  1-phase (N+L1+PE) or 2-phase (L1+L2+PE)
Power, nominal load :  600 W
Power, idle :  11 W
Current, nom. :  2.7 A
Current, max. :  6.3 A
Pressure for tap water :  1-10 bar / 14.5 - 145 psi
Water inlet :  ½" or ¾"
Water outlet :  ø 30 mm / 1¼" ø 40 mm / 1½"
Recirculation Cooling System : -
Air inlet (LaboForce-100) :  ø 6 mm / ¼"
Air pressure (LaboForce-100) :  6 - 10 bar / 87-145 psi
Dimensions and weight Width :  40 cm / 15.7"
Depth :  67.3 cm / 26.5"
Height (with LaboForce) :  28 cm / 11.0" (58 cm / 22.8")
Weight (with LaboForce) :  22 kg / 49 lbs (36.5 kg / 80.5 lbs)
Recommended dosing unit    : LaboDoser-10
Dosing (option)  Pumps / Bottles  : 1 suspension / lubricant
Dimensions and weight Width : -
Depth : -
Height : -
Weight :  0.4 kg / 0.8 lbs



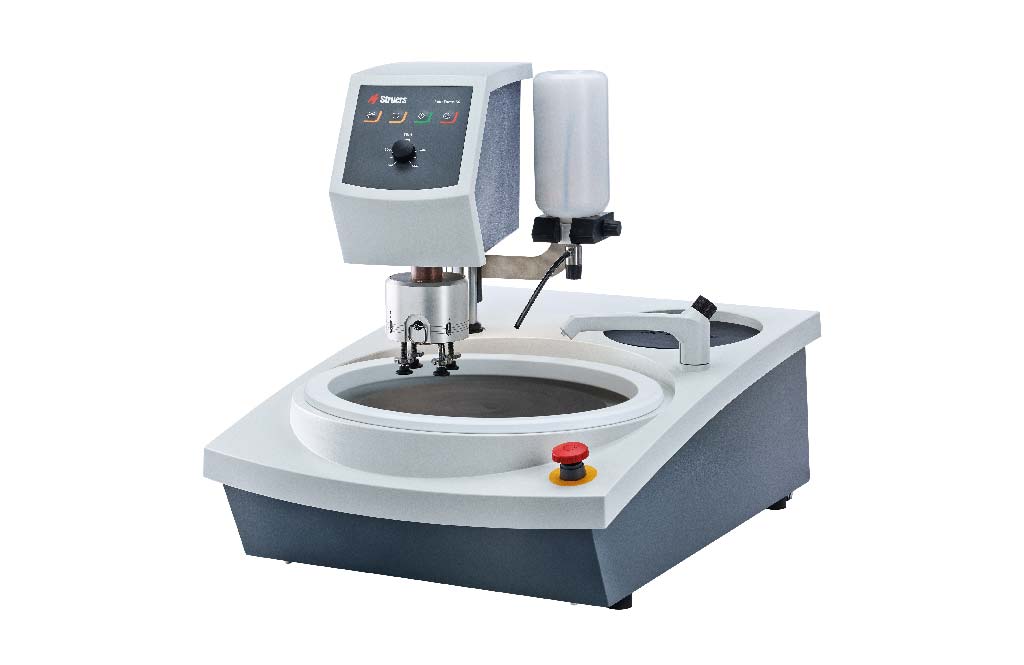

LaboForce-50

c/n : 06356127

Semi-automatic specimen mover for preparation of 1-4 specimens. For use with LaboPol-20/-30-/60. Specimen mover plates and dosing unit (LaboDoser-10, 06376901) are ordered separately



Technical data

LaboForce-50 Motor output : 40 W
Torque, @ 300 rpm : >2.6 Nm
Rotational speed  : 150 rpm at 50 / 60 Hz 50
Rotational direction  : Counter-clockwise
Force, Individual specimens :  5 - 30 N
Force, Specimen holder : -
Methods : 1
Specimen mover plates Specimens (max) : 4 x 40 mm dia.
Max sample height, individual : -
Max. diameter :  110 mm
Sample holders Max sample height : -
Max. diameter : -
Safety Standards   :  Please refer to the Declaration of Conformity
Noise level Running at idle, at a distance of 0.25 m / 10" from the machine : 48 dB (A)
Power supply Power connection LaboForce-50 is connected directly to LaboPol-20/-30 or 60
Controls : -
Memory : -
LC display  : -
Operating environment Surrounding temperature :  5 - 40 ºC / 41 - 104 ºF 5
Humidity (Non condensing) :  0 - 95% RH RH non condensing
Supply Air inlet : -
Air pressure : -
Air quality Recommended quality : ISO 8573-1, class 5.6.4
Dimensions and weight Width : 18.3 cm / 7.2"
Depth : 43.5 cm / 17.1"
Height above MD-Disc : 51.6 cm / 20.3"
Weight : 14.5 kg / 32 lbs

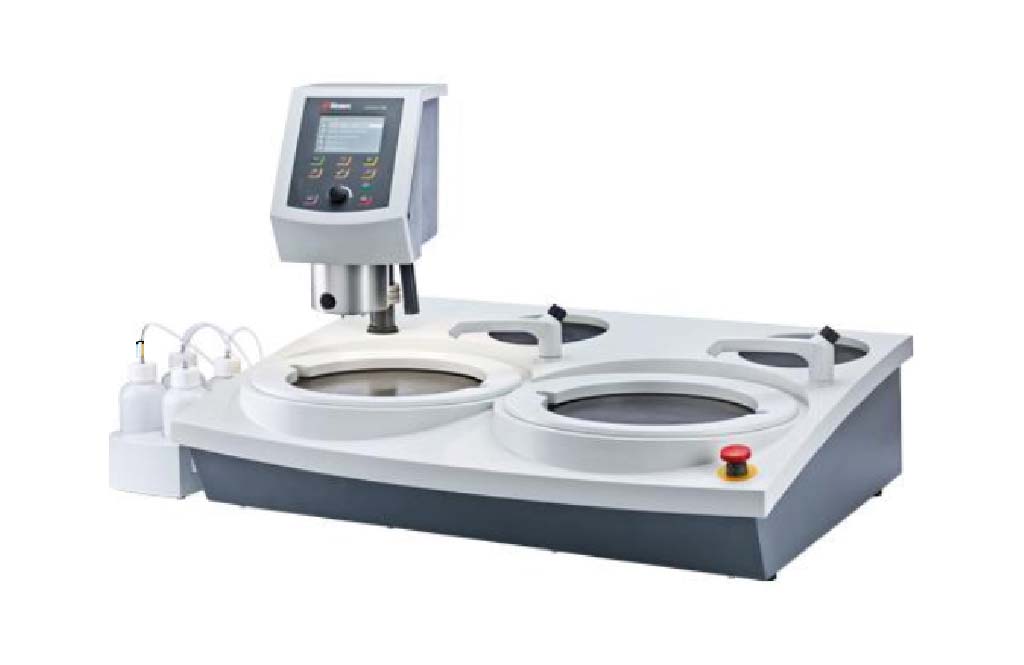

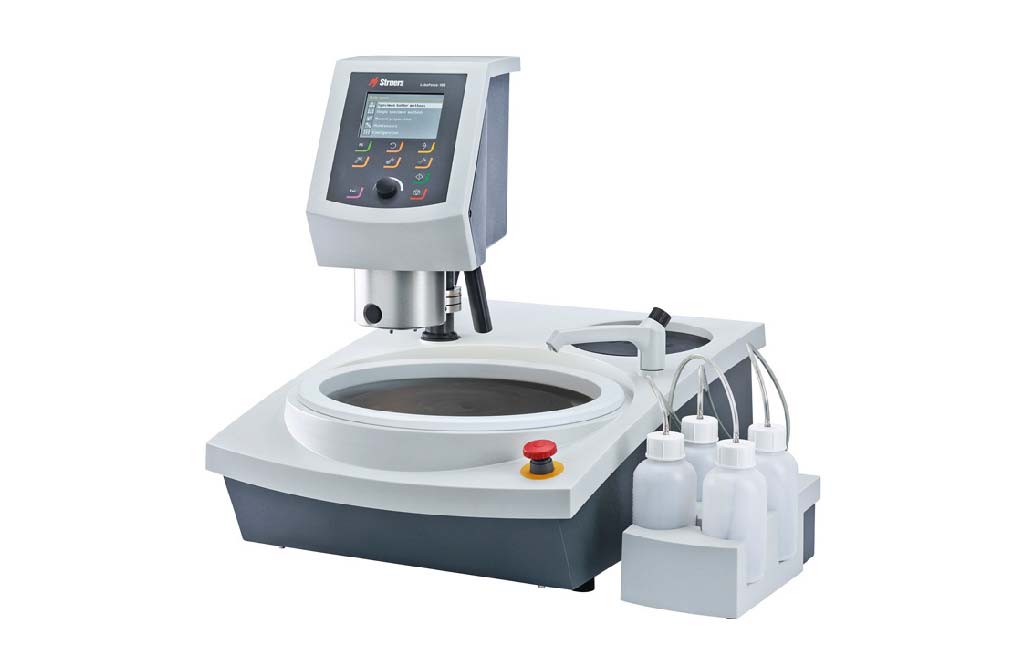

LaboForce-100

c/n : 06366127

Semi-automatic specimen mover for preparation of 1-6 specimens. For use with LaboPol-30/-60. Specimen mover plates/holders and dosing unit (LaboDoser-10/-100) are ordered separately.



Technical data

LaboForce-100 Motor output : 180 W
Torque, @ 300 rpm : -
Rotational speed  : 50 - 150 rpm at 50 / 60 Hz
Rotational direction  : Clockwise / Counter-clockwise
Force, Individual specimens : 10 - 50 N
Force, Specimen holder : 30 - 300 N
Methods : 3
Specimen mover plates Specimens (max) : 6 x 40 mm dia.
Max sample height, individual : 10 - 35 mm
Max. diameter :  140 mm
Sample holders Max sample height : 40 mm
Max. diameter : 140 mm (250 mm disc)
160 mm (300 mm disc)
Safety Standards   :  Please refer to the Declaration of Conformity
Noise level Running at idle, at a distance of 0.25 m / 10" from the machine : 57 dB (A)
Power supply Power connection : LaboForce-100 is connected directly to LaboPol-30 or LaboPol-60
Controls : Touch pad and push/turn knob
Memory : FLASH-ROM / RAM / NV-RAM
LC display  : TFT-colour 320 x 240 dots with LED back light
Operating environment Surrounding temperature :  5 - 40 ºC / 41 - 104 ºF 5
Humidity (Non condensing) :  0 - 95% RH RH non condensing
Supply Air inlet : ø 6 mm / ¼"
Air pressure : 6 - 9.9 bar / 87-143 psi
Air quality Recommended quality : ISO 8573-1, class 5.6.4
Dimensions and weight Width : 20.3 cm / 8"
Depth : 43.3 cm / 17"
Height above MD-Disc : 57.4 cm / 22.6"
Weight : 20.5 kg / 45.2 lbs

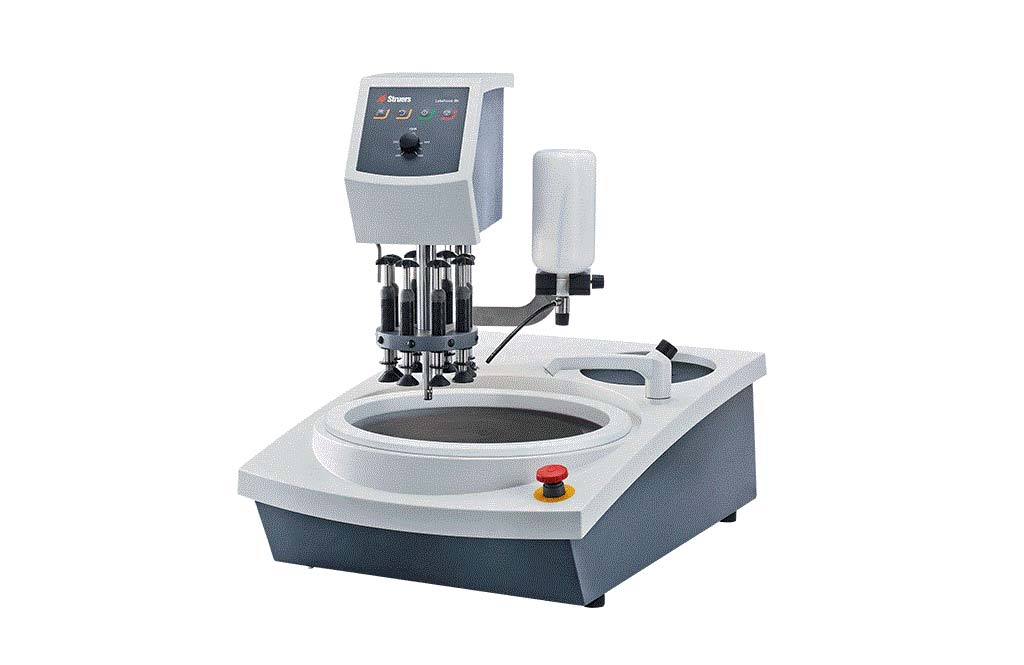

LaboForce-Mi

c/n : 06386130

Semi-automatic specimen mover for the preparation of mineralogical specimens. For use with LaboPol-30/-60. Specimen mover plates and dosing unit (LaboDoser-10, 06376901) are ordered separately



Technical data

LaboForce-Mi Motor output : 15 W
Torque, @ 300 rpm : >49 Nm
Rotational speed  : 3 rpm at 50 / 60 Hz
Rotational direction  : Clockwise
Force, Individual specimens :  2.5 - 20 N
Force, Specimen holder : -
Methods : -
Specimen mover plates Specimens (max) : 8 x 30 mm dia.
Max sample height, individual : -
Max. diameter :  160 mm
Sample holders Max sample height : -
Max. diameter : -
Safety Standards   :  Please refer to the Declaration of Conformity
Noise level Running at idle, at a distance of 0.25 m / 10" from the machine : 48 dB (A)
Power supply Power connection LaboForce-50 is connected directly to LaboPol-30
Controls : -
Memory : -
LC display  : -
Operating environment Surrounding temperature :  5 - 40 ºC / 41 - 104 ºF 5
Humidity (Non condensing) :  0 - 95% RH RH non condensing
Supply Air inlet : -
Air pressure : -
Air quality Recommended quality : ISO 8573-1, class 5.6.4
Dimensions and weight Width : 18.3 cm / 7.2"
Depth : 43.5 cm / 17.1"
Height above MD-Disc : 44.8 cm / 16.6"
Weight : 13 kg / 29 lbs
