EHF-L
Produk / Shimadzu Material Testing Machine / Fatigue Testing / EHF-L

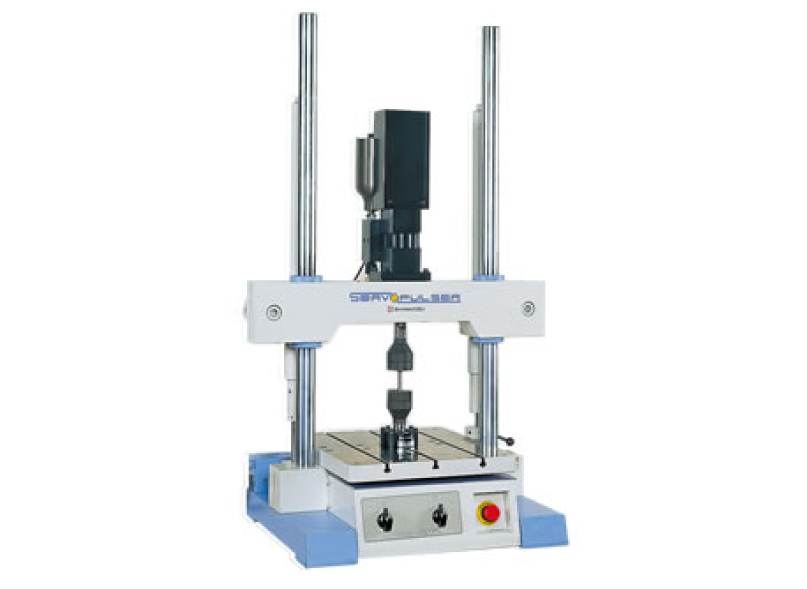

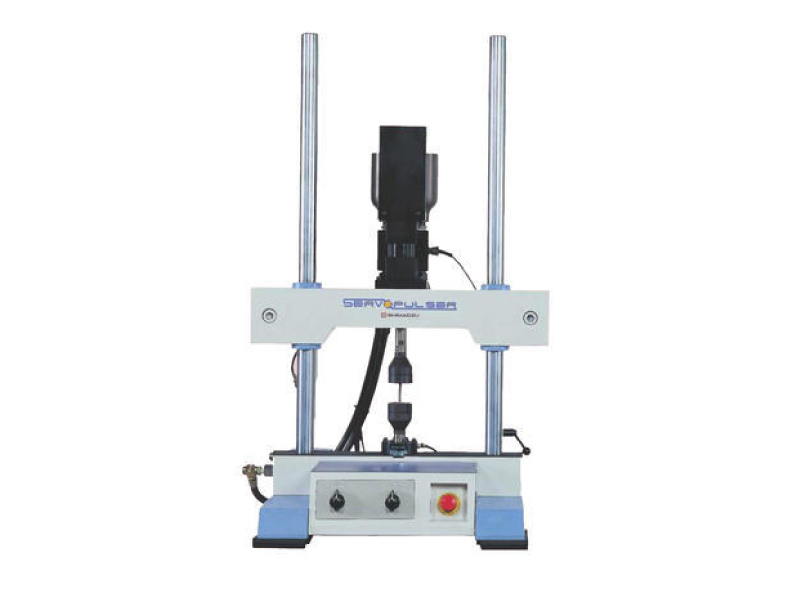

EHF-L5 kN
Specifications
| Capacity | : | 5 kN | |
| Series | : | L-type series | |
| Actuator Stroke | : | ±25 mm | |
| ±50 mm | |||
| Max. Test force Dynamic/Static | ±25 mm | : | ±5/±6 kN |
| ±50 mm | : | ±5/±6 kN | |
| Frame rigidity | ±25 mm | : | 0.0033 mm/kN |
| ±50 mm | : | 0.0033 mm/kN | |
| Crosshead drive mechanism | ±25 mm | : | Hydraulic drive (with hydraulic clap) |
| ±50 mm | : | Hydraulic drive (with hydraulic clap) | |
| Testing Space | ±25 mm | : | 135~835 mm |
| ±50 mm | : | 135~835 mm | |
| Main unit dimension | : | W 800 x D 600 x H Approx. 1780 | |
| Weight | : | 300 Kg | |
| Controller | : | Controller 4830 or Controller 4890 | |
| Test force | Static indiction accuracy | : | Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger |
| Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger | |||
| Stroke | Static indiction accuracy | : | Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger |
| Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger |
EHF-L 10 kN
Specifications
| Capacity | : | 10 kN | |
| Series | : | L-type series | |
| Actuator Stroke | : | ±25 mm | |
| ±50 mm | |||
| Max. Test force Dynamic/Static | ±25 mm | : | ±10/±12 kN |
| ±50 mm | : | ±10/±12 kN | |
| Frame rigidity | ±25 mm | : | 0.0033 mm/kN |
| ±50 mm | : | 0.0033 mm/kN | |
| Crosshead drive mechanism | ±25 mm | : | Hydraulic drive (with hydraulic clap) |
| ±50 mm | : | Hydraulic drive (with hydraulic clap) | |
| Testing Space | ±25 mm | : | 135~835 mm |
| ±50 mm | : | 135~835 mm | |
| Main unit dimension | : | W 800 x D 600 x H Approx. 1780 | |
| Weight | : | 300 Kg | |
| Controller | : | Controller 4830 or Controller 4890 | |
| Test force | Static indiction accuracy | : | Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger |
| Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger | |||
| Stroke | Static indiction accuracy | : | Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger |
| Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger |
EHF-L 20 kN
Specifications
| Capacity | : | 20 kN | |
| Series | : | L-type series | |
| Actuator Stroke | : | ±25 mm | |
| ±50 mm | |||
| Max. Test force Dynamic/Static | ±25 mm | : | ±20/±26 kN |
| ±50 mm | : | ±20/±26 kN | |
| Frame rigidity | ±25 mm | : | 0.0033 mm/kN |
| ±50 mm | : | 0.0033 mm/kN | |
| Crosshead drive mechanism | ±25 mm | : | Hydraulic drive (with hydraulic clap) |
| ±50 mm | : | Hydraulic drive (with hydraulic clap) | |
| Testing Space | ±25 mm | : | 135~835 mm |
| ±50 mm | : | 135~835 mm | |
| Main unit dimension | : | W 800 x D 600 x H Approx. 1780 | |
| Weight | : | 300 Kg | |
| Controller | : | Controller 4830 or Controller 4890 | |
| Test force | Static indiction accuracy | : | Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger |
| Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger | |||
| Stroke | Static indiction accuracy | : | Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger |
| Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger |
