SGF-STF SERIES
Produk / Shimadzu Dynamic Balancing Machine / Horizontal Type / SGF-STF SERIES

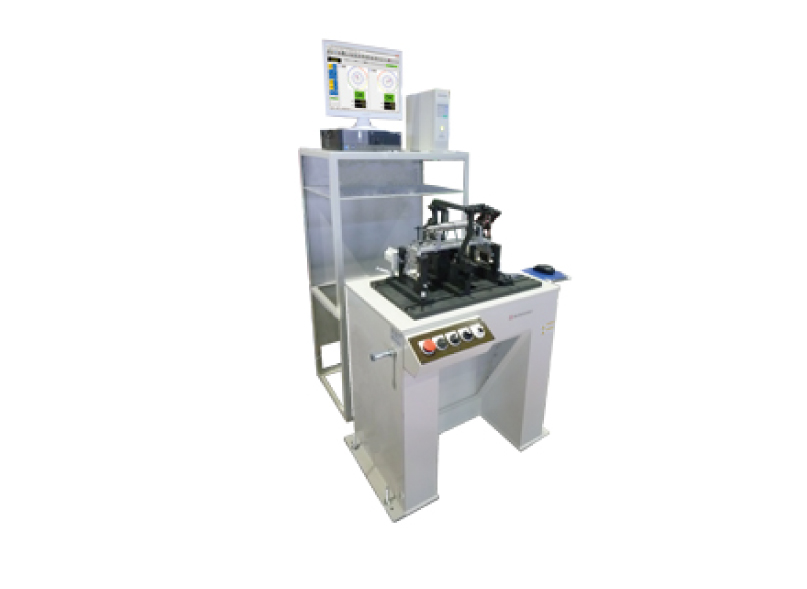

SGF-STF-03NEII
Specifications
| Workpiece Weight (kg) | 0.01 to 0.3 |
| Max. Workpiece Diameter (mm) | 60 |
| Max. Diameter for Belt Drive (mm) | 40 |
| Span Across Bearings (mm) | 50 to 450 |
| Workpiece Shaft Diameter (mm) (1) | 1.5 to 8 |
| Drive motor (w) | 200 (variable speed) |
| Bearing type (1) | V bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.05 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.002 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Upward-tangential drive |
| Size (WxDxH mm) | 830x900x1500 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 15A 3KVA |
SGF-STF-1NEII
Specifications
| Workpiece Weight (kg) | 0.01 to 1 |
| Max. Workpiece Diameter (mm) | 200 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 50 to 450 |
| Workpiece Shaft Diameter (mm) (1) | 5 to 15 |
| Drive motor (w) | 200 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.05 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.005 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Upward-tangential drive |
| Size (WxDxH mm) | 830x900x1500 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 15A 3KVA |
SGF-STF-3NEII
Specifications
| Workpiece Weight (kg) | 0.03 to 3 |
| Max. Workpiece Diameter (mm) | 200 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 50 to 450 |
| Workpiece Shaft Diameter (mm) (1) | 5 to 25 |
| Drive motor (w) | 200 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.05 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.02 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Upward-tangential drive |
| Size (WxDxH mm) | 830x900x1500 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 15A 3KVA |
SGF-STF-10NEII
Specifications
| Workpiece Weight (kg) | 0.1 to 10 |
| Max. Workpiece Diameter (mm) | 300 |
| Max. Diameter for Belt Drive (mm) | 150 |
| Span Across Bearings (mm) | 50 to 450 |
| Workpiece Shaft Diameter (mm) (1) | 5 to 25 |
| Drive motor (w) | 200 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.05 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.05 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Upward-tangential drive |
| Size (WxDxH mm) | 830x900x1500 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 15A 3KVA |

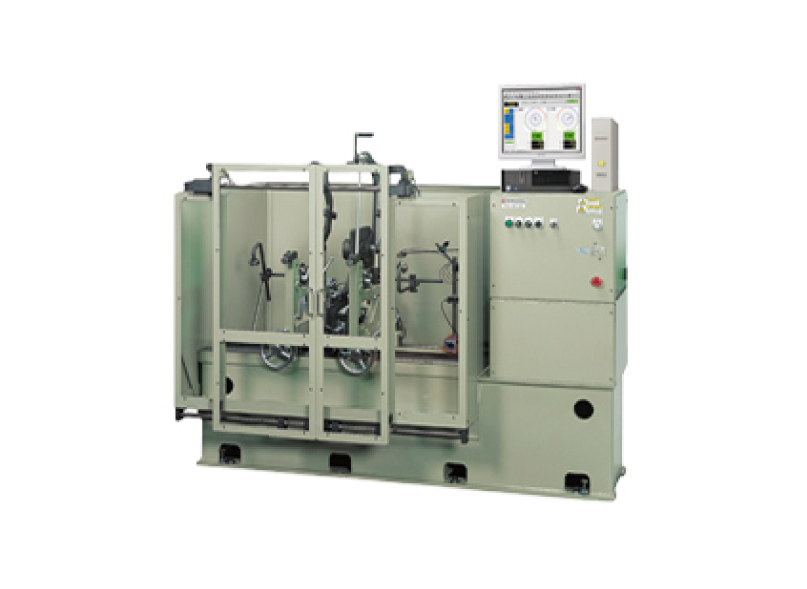

SGF-STF-30NEII
Specifications
| Workpiece Weight (kg) | 0.3 to 30 |
| Max. Workpiece Diameter (mm) | 700 |
| Max. Diameter for Belt Drive (mm) | 200 |
| Span Across Bearings (mm) | 100 to 820 |
| Workpiece Shaft Diameter (mm) (1) | 10 to 50 |
| Drive motor (w) | 750 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.05 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.3 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Upward-tangential drive |
| Size (WxDxH mm) | 1000x700x1100 |
| Weight (kg) | 800 |
| Power Supply | 3-phase 200V 30A 10KVA |
SGF-STF-100NEII
Specifications
| Workpiece Weight (kg) | 1 to 100 |
| Max. Workpiece Diameter (mm) | 700 |
| Max. Diameter for Belt Drive (mm) | 200 |
| Span Across Bearings (mm) | 100 to 820 |
| Workpiece Shaft Diameter (mm) (1) | 10 to 80 |
| Drive motor (w) | 750 (variable speed) |
| Bearing type (1) | Roller bearing, one set |
| Min. Achievable Eccentric Distance (µm) (2) | 0.05 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) | 0.3 |
| Testing Speed (rpm) (3) | 700 to 3600 (depending on outer diameter of workpiece) |
| Belt Drive System (4) | Upward-tangential drive |
| Size (WxDxH mm) | 1000x700x1100 |
| Weight (kg) | 800 |
| Power Supply | 3-phase 200V 30A 10KVA |
