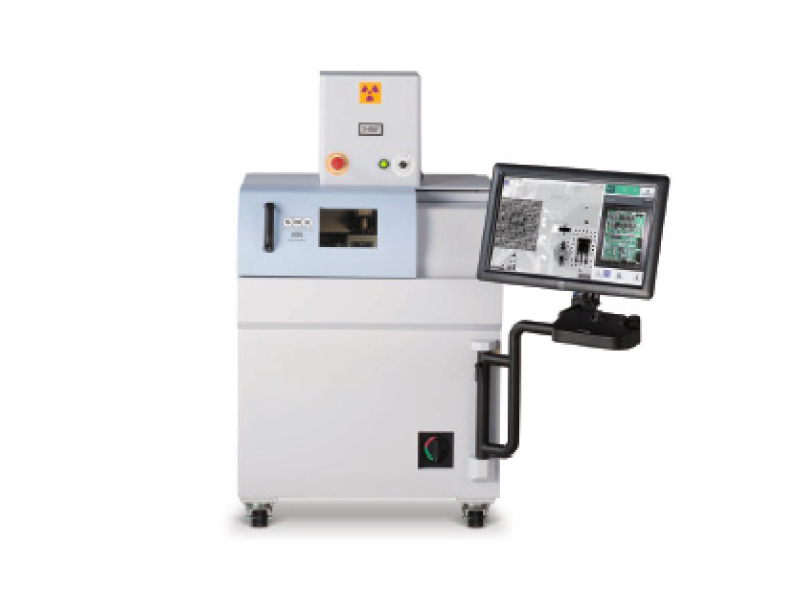

SMX-800
Produk / Shimadzu Non Destructive Testing / Fluoroscopic System / SMX-800
Xslicer SMX-810
Specifications
| Spatial resolution | : | 50 LP/mm (10 μm), JIMA standard sample | |
| Maximum sample size | : | 300 mm × 350 mm × 100 mm, max. 2.0 kg | |
| Travel | : | X: 300 mm; Y: 350 mm; Z: 400 mm | |
| X-ray output | : | Max. tube voltage 80 kV; rated output 10 W | |
| Detector | : | Image intensifier | |
| Inspection field of view | : | 3 mm to 48 mm | |
| Power supply | : | 220 V AC, 1 kVA (ground resistance < 100 Ω) | |
| External dimensions | : | W 795 × D 1,115 × H 1,325 mm | |
| Weight | : | Approx. 550 kg |
