SMX-3100M-Fi3100M
Produk / Shimadzu Non Destructive Testing / Fluoroscopic System / SMX-3100M-Fi3100M

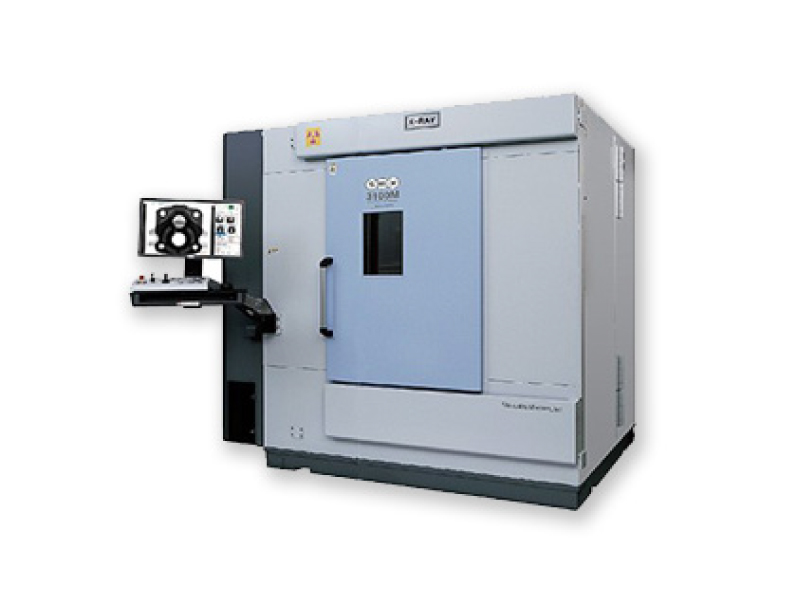

SMX-3100M
Specifications
| X-Ray Generator | : | Microfocus X-Ray Unit | |
| Maximum Tue Voltage | : | 130 kV (standard) | |
| 150 kV (optional) | |||
| Maximum Power | : | 75 W (optional) | |
| Focal Size (Nominal) | : | Min. 7 μm (optional) | |
| Detector | : | Image intensifier (standard) | |
| Flat panel (optional) | |||
| Max. Sample size | : | 400 mm dia. (standard) x 650 mm tall; 620 mm dia. (optional) x 650 mm tall; 70 kg | |
| 3-Axis Table Movements | : | Left-right, forward-backward, rotation | |
| X-Ray Unit and Detector Support Mechanism | : | Vertical, and tilt | |
| X-Ray Shield Box | : | X-Ray leakage: Max. 1 μSv/h; | |
| [X-RAY] indication lamp; shield box interior lighting | |||
| Power Supply | : | Three-phase, 200 V AC, 50/60 Hz, 2 kVA | |
| Dimensions | : | W 2,200x D 1,800, H 2,000 mm | |
| Weight | : | About 3,700 kg | |
FI-3100M
Specifications
| X-Ray Generator | : | Minifocus X-Ray Unit | |
| Maximum Tue Voltage | : | 150 kV | |
| Maximum Power | : | 355 W (standard) | |
| 75 W (optional) | |||
| Focal Size (Nominal) | : | 0.3/0.6 mm (standard) | |
| 0.1 mm (optional) | |||
| Detector | : | Flat panel (standard) | |
| Image intensifier (optional) | |||
| Max. Sample size | : | 400 mm dia. (standard) x 650 mm tall; 620 mm dia. (optional) x 650 mm tall; 70 kg | |
| 3-Axis Table Movements | : | Left-right, forward-backward, rotation | |
| X-Ray Unit and Detector Support Mechanism | : | Vertical, and tilt | |
| X-Ray Shield Box | : | X-Ray leakage: Max. 1 μSv/h; | |
| [X-RAY] indication lamp; shield box interior lighting | |||
| Power Supply | : | Three-phase, 200 V AC, 50/60 Hz, 2 kVA | |
| Dimensions | : | W 2,200x D 1,800, H 2,000 mm | |
| Weight | : | About 3,700 kg | |
