Axitom
Produk / Struers Metallography / Cutting Machine / Axitom

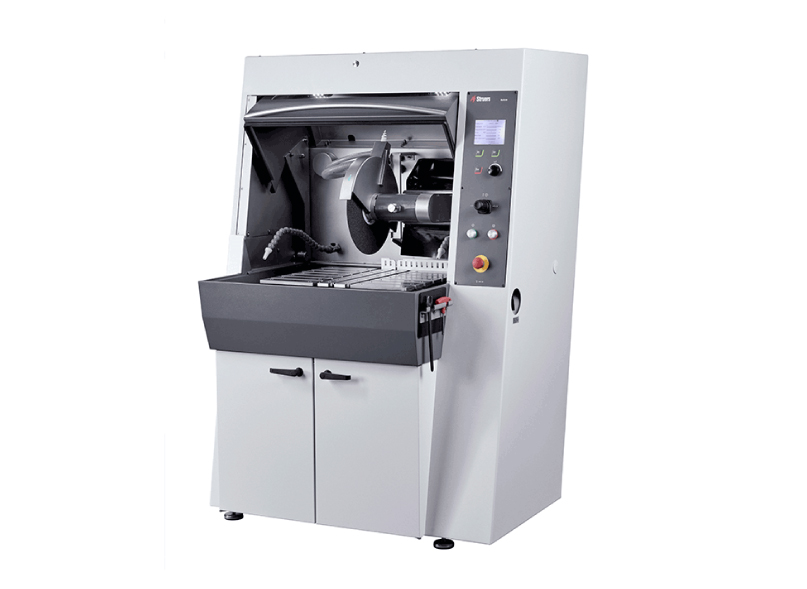

Axitom-5
| c/n | : 05488446 (Fixed Table) |
| : 05488346 (With X-table) | |
| : 05488146 (With XY-table) |

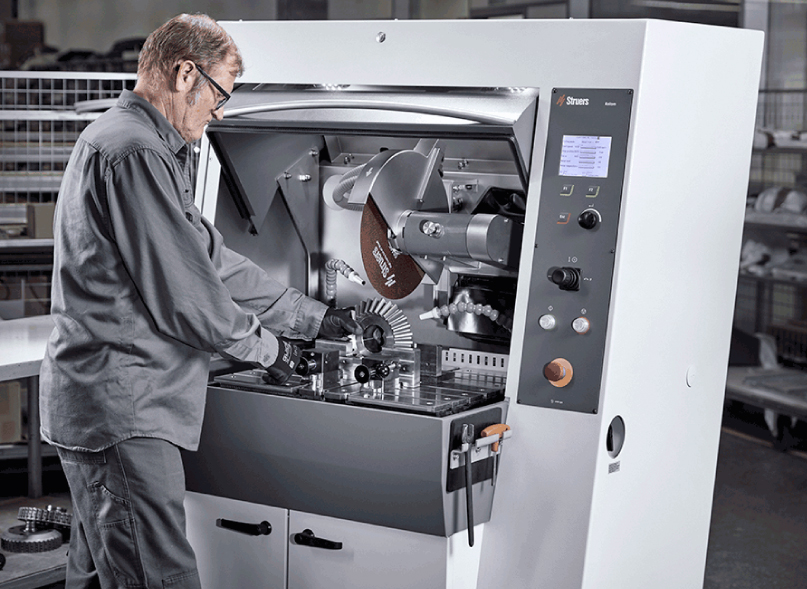

Automatic cut-off machine for Ø350 mm (14") cut-off wheel.

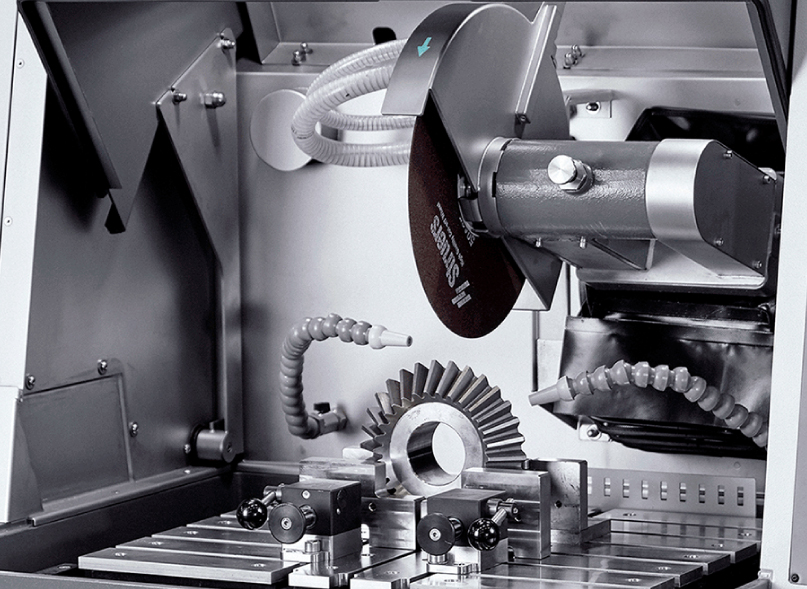

Cutting table with 12 mm T-slots.
Specifications
| Cutting Specs | Feed Speed | : 0.05-5 mm/s / 0.002-0.2 "/s |
| Width | : 591 mm / 23.3" | |
| Length | : 492 mm / 19.4" | |
| Cutting Table | : 12 mm T-slots with exchangeable T-slot plates | |
| Cut-off wheel size | : 350 mm / 14" | |
| Arbor Size | : 32 mm / 1.26" | |
| Rotational speed | : 1950 rpm | |
| Sectioning Capacity | : Dia. 125 mm / 4.9", 110 x 245 mm / 4.3" x 9.6" | |
| Positioning & Feed | : 0-200 mm / 7.9" | |
| Features | Table | : Fixed, X-table, XY-table |
| Cutting Mode | : ExciCut | |
| OptiFeed | : Yes | |
| Motor Power | S1 | : 5.5 - 6.5 kW |
| S3 | : 7.7 - 9.2 kW | |
| Max | : 11-13 kW | |
| Controls | : Rotary Knob | |
| Recirculation Cooling Tank | : Coolimat-2000 or Cooli System 4 | |
| Noise Level | : LpA = 75.2 dB(A) | |
| Surrounding Temperature | : 5 - 40 °C / 41 - 104 °F | |
| Humidity | : 35 - 85 % RH | |
| Dimensions and Weight | Height | : 1745 mm / 68.7" |
| Width | : 1155 mm / 45.5" | |
| Depth | : 1305 mm / 51.4" | |
| Weight | : 758 kg / 1670 lbs | |
| Supply | Voltage | : 3 x 380-415 V |
| Frequency | : 50 Hz | |
| Power S1 | : 5.5 kW | |
| Power S3 | : 7.7 kW | |
| Current, max | : 28.6 A |

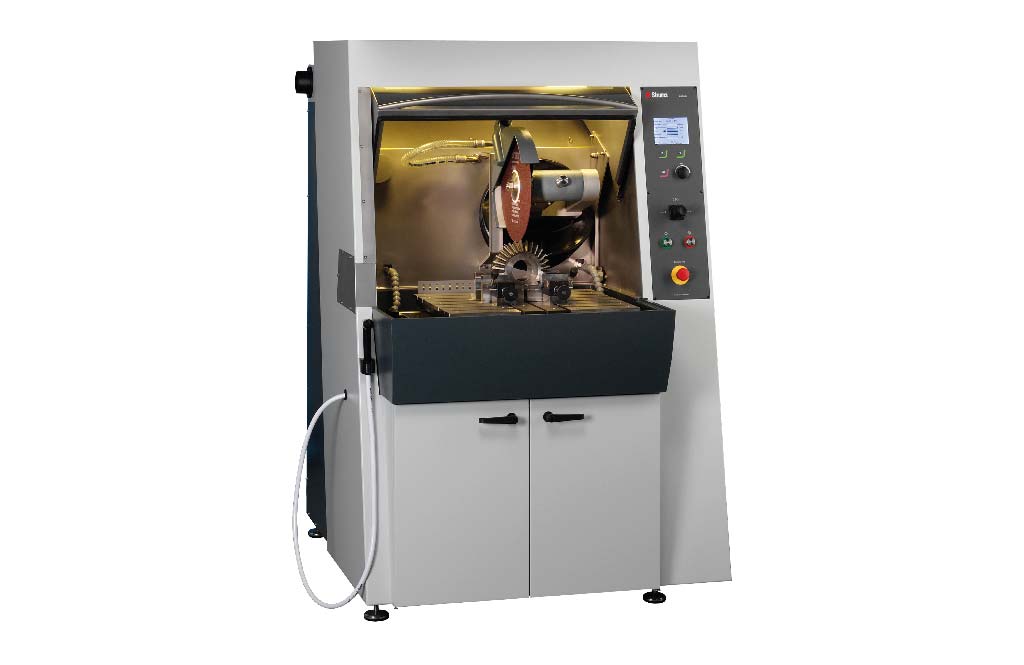

Axitom-5/-400
| c/n | : 05488146 (With Laser) |
| : 06866147 (No Laser) |
Specifications
| Cutting specs | Feed speed | : | 0.05-5 mm/s / 0.002 -0.2 “/s |
| Width | : | 591 mm / 23.3” | |
| Length | : | 492 mm / 19.4” | |
| Cutting table | : | 12 mmT-slot with exchangeable T-slot plates | |
| Cut-off wheel | Size | : | 400 mm / 16” |
| Abor size | : | 32 mm / 1.26” | |
| Rotational speed | : | 1950 rpm | |
| Sectioning capacity | : | Dia. 150 mm / 6”, 125 x 290 mm / 4.9" x 11.4" | |
| Positioning range | : | 0-175 mm / 6.9” | |
| Features | : | XY-table | |
| Cutting mode | : | ExciCut | |
| OptiFeed | : | Yes | |
| Laser | : | Optional | |
| Motor power | : | 7.5-9 kW S1 10.5-12.6 kW S3 12.8-15 kW Max |
|
| Controls | : | Rotary Knob | |
| Recirculation cooling tank | : | Accessory Coolimat-2000 or Cooli System 4 |
|
| Noise level | : | LpA = 75.2 dB(A) | |
| Surrounding temperature | : | 5-40 ºC / 41-104 ºF | |
| Humidity | : | 35-85% RH | |
| Dimensions and weight | Height | : | 1745 mm/ 68.7" |
| Width | : | 1155 mm / 45.5” | |
| Depth | : | 1305 mm / 51.4” | |
| Weight | : | 758 kg / 1670 lbs | |
| Supply | Voltage / frequency / Power S1, S3 / Current, max. |
: | Choose between: 3 x 380-415 V / 50 Hz / 7.5 kW / 32 A 3 x 380-415 V / 60 Hz / 7.5 kW / 32 A 3 x 460-480 V / 60 Hz / 9.0 kW/ 32 A 3 x 200 V / 50 Hz /7.5 kW / 64 A 3 x 200-210 V / 50 Hz / 7.5 kW / 66 A |
