DSX1000
Produk / Evident Olympus / Digital Microscopes / DSX1000

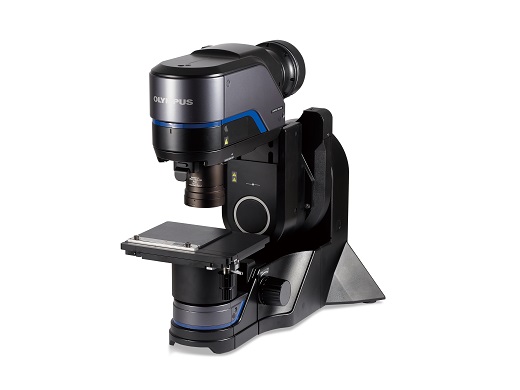

DSX1000 Entry Model
Mudah Digunakan dengan Fungsi Dasar
Inspeksi Awal dan Analisis Level Mikron dengan Satu Sistem
- Kurangi trial and error selama observasi untuk inspeksi yang lebih cepat
- Lakukan analisis makro awal dan analisis mikro terperinci menggunakan satu instrumen
Pilih Lensa Terbaik untuk Analisis Anda
- Jajaran 17 lensa objektif kami memberikan fleksibilitas untuk mendapatkan berbagai gambar
- Minimalkan kemungkinan menabrak sampel Anda dengan jarak kerja yang jauh
- Resolusi tinggi dan jarak kerja yang jauh dalam satu tujuan
Jadilah percaya diri dalam Pengukuran Anda
- Sistem optik telecentric memungkinkan Anda memperoleh pengukuran presisi tinggi dengan keakuratan dan presisi yang terjamin *
* Untuk menjamin keakuratan XY, pekerjaan kalibrasi harus dilakukan oleh teknisi servis INTEC Instruments.
DSX1000 Entry Model Specifications |
|
|
DSX10-SZH | DSX10-UZH | ||
| Optical System | Optical system | Telecentric optical system | ||
| Zoom ratio | 10X (motorized) | |||
| Zoom magnification method | Motorized | |||
| Calibration | Automatic | |||
| Lens attachment | Quick-switch, coded lens attachments automatically update magnification and visual field information | |||
| Maximum total magnification (on monitor) |
7000X | |||
| Working distance (W.D.) | 66.1 mm – 0.35 mm | |||
| Accuracy and repeatability (X-Y plane) | Accuracy*1 | ± 3% | ||
| Repeatability 3σn-1 | 2% | |||
| Repeatability (Z axis)*2 | Repeatabilty σn-1 | 1 μm | ||
| Camera | Image sensor | 1 / 1.2 inch, 2.35 million pixel color CMOS | ||
| Cooling | Peltier cooling | |||
| Frame rate | 60 fps (maximum) | |||
| Standard | 1200 × 1200 (1: 1) / 1600 × 1200 (4: 3) | |||
| 3 CMOS mode | Not available | 1200 × 1200 (1: 1) / 1600 × 1200 (4: 3) | ||
| 3 CMOS mode × pixel shift | Not available | 3600 × 3600 (1: 1) / 4800 × 3600 (4: 3) | ||
| Illumination | Color light source | LED | ||
| Lifetime | 60,000 h (design value) | |||
| Observation | BF (brightfield) | Standard | ||
| OBQ (oblique) | Standard | |||
| DF (darkfield) | Standard LED ring divided into four divisions |
|||
| MIX (brightfield+darkfield) | Standard Simultaneous observation of BF + DF |
|||
| PO (polarization) | Standard | |||
| DIC (differential interference) | Not available | Standard | ||
| Contrast up | Standard | |||
| Depth of focus up function | Not available | Standard | ||
| Transmitted lighting | Standard*3 | |||
| Focus | Focusing | Motorized | ||
| Stroke | 101 mm (motorized) | |||
*1 Calibration by Olympus or dealer service technician necessary. To guarantee the accuracy of XY, calibration with DSX-CALS-HR (calibration sample) is required. To issue certificates, calibration work must be undertaken by an Olympus’ calibration service technician.
*2 When using a 20X or higher objective.
*3 The optional DSX10-ILT is required.
| Objective | DSX10-SXLOB | DSX10-XLOB | UIS2 | |
| Objective lens | Maximum sample height | 50 mm | 115 mm | 145 mm |
| Maximum sample height (free angle observation) |
50 mm | |||
| Parfocal distance | 140 mm | 75 mm | 45 mm | |
| Lens attachment | Integrated with lens | Available | ||
| Total magnification | 20X – 1400X | 42X – 5600X | 23X*4 – 7000X | |
| Actual F.O.V. (μm) | 19,200 µｍ – 270 µｍ | 9,100 µｍ – 70 µｍ | 17,100 µｍ – 50 µｍ | |
| Adaptor | Diffusion adaptor (optional) | Available | Not Available | |
| Eliminate reflection adaptor (optional) | Available | Not Available | ||
| Lens attachment | Number of objectives that can be attached | Up to 1 piece (attachment is integrated with lens) |
Up to 2 pieces | |
| Objective lens case | Three lens attachments can be stored | |||
*4 Total (maximum) magnification when using MPLFLN1.25X
| Stage | DSX10-RMTS | DSX10-MTS | U-SIC4R2 |
| XY stage: motorized / manual | Motorized (with rotation function) | Motorized | Manual |
| XY stroke | Stroke priority mode: 100 mm × 100 mm Rotation priority mode: 50 mm × 50 mm |
100 mm × 100 mm | 100 mm × 105 mm |
| Rotation angle | Stroke priority mode : ±20° Rotation priority mode : ±90° |
Not available | |
| Display rotation angle | GUI | Not available | |
| Load-resistance | 5 kg (11 lb) | 1 kg (2.2 lb) | |
| Frame | DSX-UF | DSX-TF |
| Z-axis stroke | 50 mm (manual) | |
| Tilt observation | Not available | ±90° |
| Tilt angle display | Not available | GUI |
| Tilt angle method | Not available | Manual, fix / release handle |
| Measurement | Plane measurement |
| Profile measurement | |
| Step measurement | |
| Area/volume measurement | |
| Line roughness analysis | |
| Surface roughness analysis | |
| Caliper measurement (optional) | |
| Particle analysis (optional) |
| Display | 23-inch flat panel display |
| Resolution | 1920 (H) × 1080 (V) |
| System total | Upright frame system | Tilt frame system |
| Weight (frame, head, motorized stage, display, and console) | 43.7 kg (96.3 lb) | 46.7 kg (103 lb) |
| Power consumption | 100 – 120 V / 220 – 240 V, 1.1 / 0 .54 A, 50 / 60 Hz | |

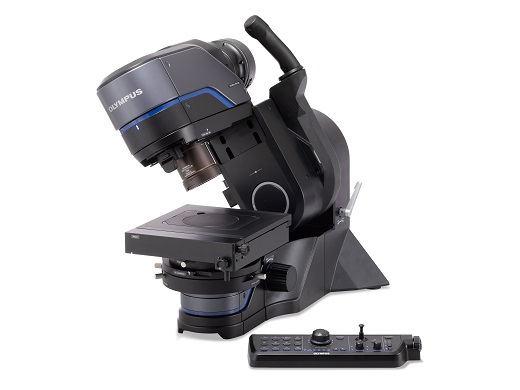

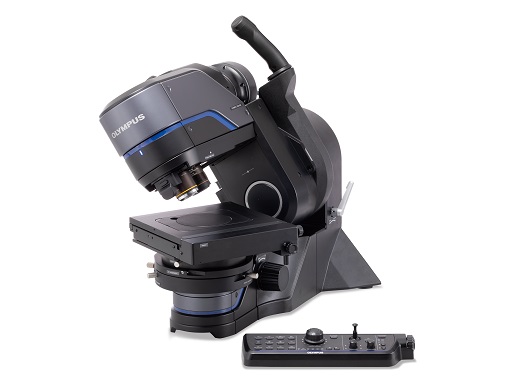

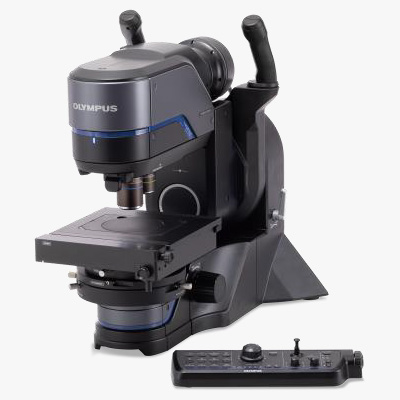

DSX1000 Tilt Model
Pengamatan Sampel dari Banyak Sudut
Rentang Pembesaran 20X hingga 7000X
- Ubah pembesaran secara mulus dari analisis tingkat tinggi ke pengamatan mendetail dengan satu klik
- Banyak pilihan lensa untuk menemukan perbesaran, resolusi, dan jarak kerja terbaik untuk sampel Anda

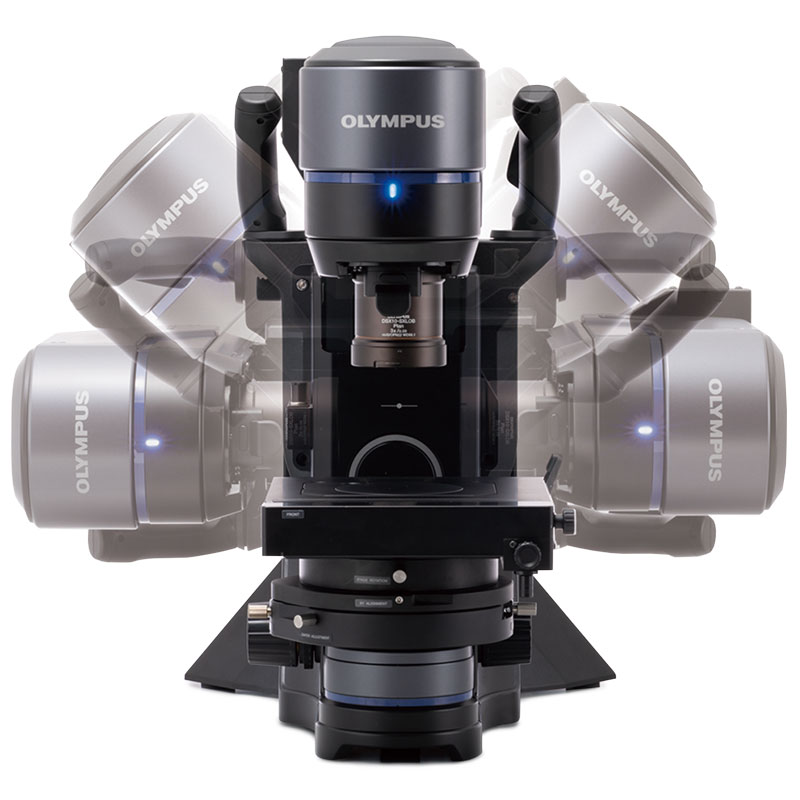

- Optik mempertahankan bidang visual saat Anda memiringkan kepala zoom, sehingga Anda dapat mengamati sampel dari berbagai sudut.
Pengantian Lensa Instan dan Menghemat Waktu
- Ubah pembesaran dengan cepat dan mudah.
- Ubah metode observasi dan iluminasi dengan satu klik.
- Semua metode observasi tersedia di semua pembesaran.
Konsol yang Mudah Digunakan
- Perbesar dan perkecil sampel Anda secara optik dengan memutar dial.
- Ambil gambar 2D atau 3D dengan mudah atau pindahkan bidang XYZ dengan satu klik.
- Beralih di antara 6 metode observasi yang berbeda hanya membutuhkan menekan satu tombol
* Untuk menjamin keakuratan XY, pekerjaan kalibrasi harus dilakukan oleh teknisi servis INTEC Instruments.
DSX1000 Tilt Model Specifications |
|
|
DSX10-SZH | DSX10-UZH | ||
| Optical System | Optical system | Telecentric optical system | ||
| Zoom ratio | 10X (motorized) | |||
| Zoom magnification method | Motorized | |||
| Calibration | Automatic | |||
| Lens attachment | Quick-switch, coded lens attachments automatically update magnification and visual field information | |||
| Maximum total magnification (on monitor) |
7000X | |||
| Working distance (W.D.) | 66.1 mm – 0.35 mm | |||
| Accuracy and repeatability (X-Y plane) | Accuracy*1 | ± 3% | ||
| Repeatability 3σn-1 | 2% | |||
| Repeatability (Z axis)*2 | Repeatabilty σn-1 | 1 μm | ||
| Camera | Image sensor | 1 / 1.2 inch, 2.35 million pixel color CMOS | ||
| Cooling | Peltier cooling | |||
| Frame rate | 60 fps (maximum) | |||
| Standard | 1200 × 1200 (1: 1) / 1600 × 1200 (4: 3) | |||
| 3 CMOS mode | Not available | 1200 × 1200 (1: 1) / 1600 × 1200 (4: 3) | ||
| 3 CMOS mode × pixel shift | Not available | 3600 × 3600 (1: 1) / 4800 × 3600 (4: 3) | ||
| Illumination | Color light source | LED | ||
| Lifetime | 60,000 h (design value) | |||
| Observation | BF (brightfield) | Standard | ||
| OBQ (oblique) | Standard | |||
| DF (darkfield) | Standard LED ring divided into four divisions |
|||
| MIX (brightfield+darkfield) | Standard Simultaneous observation of BF + DF |
|||
| PO (polarization) | Standard | |||
| DIC (differential interference) | Not available | Standard | ||
| Contrast up | Standard | |||
| Depth of focus up function | Not available | Standard | ||
| Transmitted lighting | Standard*3 | |||
| Focus | Focusing | Motorized | ||
| Stroke | 101 mm (motorized) | |||
*1 Calibration by Olympus or dealer service technician necessary. To guarantee the accuracy of XY, calibration with DSX-CALS-HR (calibration sample) is required. To issue certificates, calibration work must be undertaken by an Olympus’ calibration service technician.
*2 When using a 20X or higher objective.
*3 The optional DSX10-ILT is required.
| Objective | DSX10-SXLOB | DSX10-XLOB | UIS2 | |
| Objective lens | Maximum sample height | 50 mm | 115 mm | 145 mm |
| Maximum sample height (free angle observation) |
50 mm | |||
| Parfocal distance | 140 mm | 75 mm | 45 mm | |
| Lens attachment | Integrated with lens | Available | ||
| Total magnification | 20X – 1400X | 42X – 5600X | 23X*4 – 7000X | |
| Actual F.O.V. (μm) | 19,200 µｍ – 270 µｍ | 9,100 µｍ – 70 µｍ | 17,100 µｍ – 50 µｍ | |
| Adaptor | Diffusion adaptor (optional) | Available | Not Available | |
| Eliminate reflection adaptor (optional) | Available | Not Available | ||
| Lens attachment | Number of objectives that can be attached | Up to 1 piece (attachment is integrated with lens) |
Up to 2 pieces | |
| Objective lens case | Three lens attachments can be stored | |||
*4 Total (maximum) magnification when using MPLFLN1.25X
| Stage | DSX10-RMTS | DSX10-MTS | U-SIC4R2 |
| XY stage: motorized / manual | Motorized (with rotation function) | Motorized | Manual |
| XY stroke | Stroke priority mode: 100 mm × 100 mm Rotation priority mode: 50 mm × 50 mm |
100 mm × 100 mm | 100 mm × 105 mm |
| Rotation angle | Stroke priority mode : ±20° Rotation priority mode : ±90° |
Not available | |
| Display rotation angle | GUI | Not available | |
| Load-resistance | 5 kg (11 lb) | 1 kg (2.2 lb) | |
| Frame | DSX-UF | DSX-TF |
| Z-axis stroke | 50 mm (manual) | |
| Tilt observation | Not available | ±90° |
| Tilt angle display | Not available | GUI |
| Tilt angle method | Not available | Manual, fix / release handle |
| Measurement | Plane measurement |
| Profile measurement | |
| Step measurement | |
| Area/volume measurement | |
| Line roughness analysis | |
| Surface roughness analysis | |
| Caliper measurement (optional) | |
| Particle analysis (optional) |
| Display | 23-inch flat panel display |
| Resolution | 1920 (H) × 1080 (V) |
| System total | Upright frame system | Tilt frame system |
| Weight (frame, head, motorized stage, display, and console) | 43.7 kg (96.3 lb) | 46.7 kg (103 lb) |
| Power consumption | 100 – 120 V / 220 – 240 V, 1.1 / 0 .54 A, 50 / 60 Hz | |
