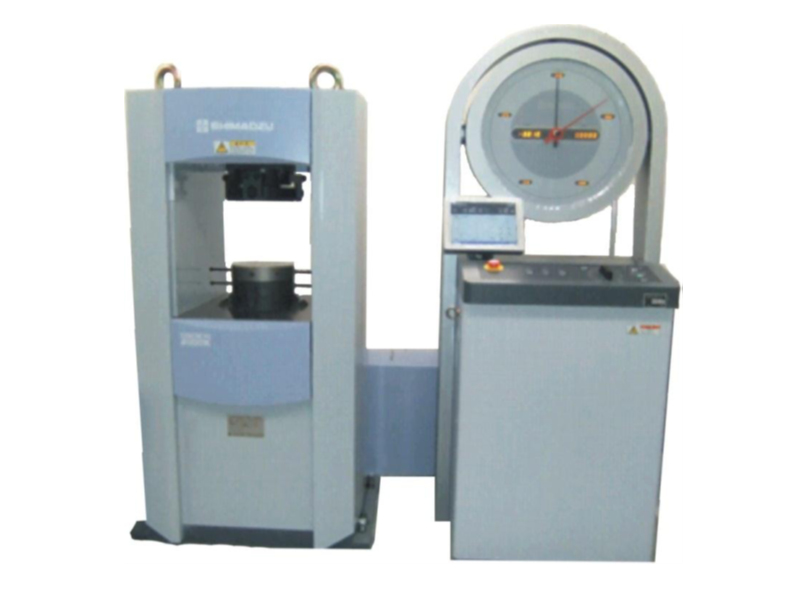

Loading unit | Maximum loading capacity | : | 3000 kN |
Compression test | : | Distance between the platens Max. 320 mm | |
Platen Upper φ220mm Lower φ220mm | |||
Efective distance between columns | : | 500 mm | |
Ram stroke | : | 100 mm | |
Loading rate | : | Max. 20 mm/min (60Hz) | |
Max. 16 mm/min (50Hz) | |||
(When the hydraulic fluid temperature is 20°C) | |||
Size | : | W 960 x D 730 x H 1890 | |
Power supply capacity 3-phase, 200/220 V, 50/60 Hz | : | Approx. 7 kVA | |
Hydraulic System | : | 1) Hydraulic system for the loading | |
2) Hydraulic fluid cooling unit (Optional) | |||
To operate this testing machine continuously for at least 30 minutes, the optional hydraulic fluid cooling unit is required. To continue hold control or an equivalent test for at least 30 minutes, the optional hydraulic fluid cooling unit is also required. | |||
Shatterproof cover for specimen | : | Size of the specimen φ100mm x H 200mm | |
Shatterproof cover for specimen is a consumable goods. Expiration date is given below. But when it has a hurt, recommend replacing a new cover immediately. Expiration date:The number: 20 explosive fracture of the specimens or 1 year (brief period) |
Force Measurement Display | Measuring method | : | A high-precision pressure cell to measure pressures inside the cylinder |
Force range | : | Rangeless | |
Precision of force | : | Within ±1.0% of indicated value (Within the range from 1 of the ratings to 1/250) | |
Automatic electrical force calibration unit | : | Provided | |
Automatic force zero-adjustment function | : | Provided | |
Display Resolution | Display Range Unit: % of the testing machine capacity) | : | ≦ 3.2 |
> 3.2 ≦ 18 |
|||
> 18 | |||
Display Resolution | : | 1/240,000 | |
1/60,000 | |||
1/12,000 | |||
Liquid crystal display (LCD touch panel) | 1) Type of force display | : | Digital LCD |
2) Test force display unit | : | SI system: N, kN kgf system: kgf, tf Pound system: lbf, kip |
|
: | A stress value is displayed according to the above systems of units. | ||
: | The maximum force point is displayed by operating the mode selector key. | ||
: | The break point is displayed by operating the mode selector key. | ||
Analog force indicator (Optional) | 1) Type of force display | : | Digital/analog display |
2) Force display unit | : | SI system: kN kgf system: tf Pound system: kip |
|
3) Display Resolution | : | Equivalent to 3.2.1 6) | |
4) Analog display | : | Displayed by full-scale of virtual force Virtual Range: 6 steps selection (x1, x2, x5,x10,x20,x50 or x1,x2,x4,x10,x20,x40) Scale plate diameter: 450 mm Minimum scale: 1/600 With a zero-position memory function |
|
5) Trace data display function | : | * Maximum force value display Function | |
A force value is displayed according to the systems of units described in the item 2). | |||
* The Maximum test force value is held and shown by the Maximum force pointer and the digital display. | |||
Stroke Measurement Display | 1) Measurement method | : | Measurement using optical encoder |
2) Ram stroke display | : | Digital LCD | |
4) Display resolution | : | 0.01 mm | |
Other Functions | 1) USB memory function | : | Inserting the USB memory to the testing machine allows loading the method files and saving the result files (This function requires the data processing software TRAPEZIUMX.) |
2) Speed display function | : | Displays the current stress, force speed, stroke speed and displacement speed. |
|
3) Specimen protection function | : | Automatically removes the load applying to the specimen before the test. |
|
4) Explosive fracture prevention function | : | Automatically removes the load applying to the specimen after specimen break detecting. Caution: This function is not always applied to all specimens. |
|
Safety Stop Functions | 1) Emergency stop switch | : | Provided at the front of the Control/Measuring unit. |
2) Overload limiter | : | Automatically stops the Testing Machine when a force value reaches "102% of the full-scale force". |
|
5) Ram stroke limiter | : | Automatically stops the Testing Machine when the ram stroke reaches the upper limit. |
|
6) Software limit detection | : | Parameters: Stroke/Force/Displacement The alarm display appears when reaching the specified limit value. |
|
7) Hydraulic pump motor overcurrent protecting function | : | Provided (for the loading unit and grips) | |
8) Main power supply electric leakage/overcurrent protecting function |
: | Provided | |
9) Automatic control stop function | : | Provided |
This machine provides the following performance and features: | |||
1) With the semi-auto-tuning function, the control parameters are automatically calculated and set during testing. It allows high precision testing without bothering to specify test methods. (This function has been confirmed to work properly in the stress control for the concrete specimens. For some special materials, manual adjustment of the control parameters may be required.) | |||
2) The force display is a large-sized digital LCD (10.4”). An analog indicator is also provided, bringing superior visibility of the change of force. | |||
3) The force measurement is based on the cylinder internal pressure measured by the high-precision pressure cell. This pressure cell provides quick response, enabling accurate measurement of the force applied to a specimen. Furthermore, thanks to rangeless measurement, no amplifier range setting is required. This allows data sampling with a suitable condition even for a specimen whose hardness is uncertain. | |||
4) The control unit can correspond to a high experimental method at once as equipping various control mode with a standard. As passing up to this time, the manual test to use a load control knob also is practicable. | |||
5) With the unit system switching function, the systems of kgf units and the systems of lbf units, as well as the SI system, can be used for measurement display or parameter setting. | |||
6) During a test, an S-S curve is displayed in real time. | |||
7) In contrast to the specified speed setting, the actual current speed is displayed on the screen. | |||
8) With the test condition file function, this Testing Machine improves test efficiency. (Up to 100 files) | |||
9) Dual external analog input functions and dual external analog output functions are provided. | |||
10) To perform a test safely, this Testing Machine provides the emergency stop switch, and the automatic stop function that stops the Testing Machine when control deviation becomes excessive. The key switch for power supply is also provided as standard equipment, helping security management. | |||
11) Various application testing equipment suited for extensive test purposes are optionally available. (Order the application testing equipment when required.) | |||
(1)The TRAPEZIUM (personal computer data processing software) can be connected. All operations including test condition | |||
setup, Testing Machine's measurement control and various data processing can be intensively performed from a personal | |||
computer. (2)When the DATALETTY (simplified data processing unit) is connected, statistical processing |
|||
(2)When the DATALETTY (simplified data processing unit) is connected, statistical processing and S-S curve printing are enabled. | |||
(3)The X-YTP recorder (providing 0 to 5 VDC Y signal) can be connected. | |||
(4)Various strain detectors such as many types of extensometers can be selected according to test purposes. |
1. Foundation work | |||
The foundation work for installation of this Testing Machine must be conducted by the user, according to the foundation work reference drawing presented by SHIMADZU Corporation. | |||
2. Power Supply Wiring Work | |||
Provide a distribution board on the wall of the room where this Testing Machine is to be installed, and provide a switch with the following capacity. The piping and wiring work is executed from the distribution panel to the machine installation shown in the foundation work reference drawings by the user. | |||
The above work must be conducted by the user. Power supply 3-phase 200-220V 60Hz/ 200V 50Hz approx. 7.0kVA Grounding Grounding resistance of 100 ohm or less. (NOTE: For using a personal computer, a power supply is additionally required.) |
|||
3. Plumbing | |||
To use the optional hydraulic fluid cooling unit, water supply and drainage plumbing must be conducted according to the following conditions, at the position shown in the foundation work reference drawing. Plumbing for water supply Pipe diameter: 1/2 inch (General-use water pipe with a stop valve) Required water supply rate: Approx. 10 litters/min. Water temperature: 30ºC or less Water pressure: 0.15 MPa or more Plumbing for drainage Pipe diameter: 3/4 inch |
|||
4. Environment conditions | |||
Test machines are generally factory-assembled. In principle the machine is delivered in a complete from and installed in site. | |||
Installation Environment | |||
1) Do not install the machine in an area where the temperature drastically fluctuates. Maintain a constant temperature within a range | |||
of +5℃ ~ +40℃. | |||
2) Do not install the machine in an area of high humidity. (Condensation should not occur.) | |||
3) Do not install the machine in a dusty area. | |||
4) Do not install the machine in an area subject to vibration from other machines. An amplitude of 10Hz, 5μm or less is allowable. | |||
5) Do not install the machine adjacent to equipment which may cause electric e the machine is equipped with a pressure cell of high | |||
sensitivity,induction. Sinc a load measuring amplifier, and a recorder, never install the machine near a high-frequency induction | |||
furnace. | |||
6) Do not install the machine in an area subject to corrosive gas, steam, or direct sunlight. |
Loading unit | Maximum loading capacity | : | 2000 kN |
Compression test | : | Distance between the platens Max. 320 mm | |
Platen Upper φ220mm Lower φ220mm | |||
Efective distance between columns | : | 400 mm | |
Ram stroke | : | 100 mm | |
Loading rate | : | Max. 20 mm/min (60Hz) | |
Max. 16 mm/min (50Hz) | |||
(When the hydraulic fluid temperature is 20°C) | |||
Size | : | W 860 x D 700 x H 1530 mm | |
Power supply capacity 3-phase, 200/220 V, 50/60 Hz | : | Approx. 4 kVA | |
Hydraulic System | : | 1) Hydraulic system for the loading | |
2) Hydraulic fluid cooling unit (Optional) | |||
To operate this testing machine continuously for at least 30 minutes, the optional hydraulic fluid cooling unit is required. To continue hold control or an equivalent test for at least 30 minutes, the optional hydraulic fluid cooling unit is also required. | |||
Shatterproof cover for specimen | : | Size of the specimen φ100mm x H 200mm | |
Shatterproof cover for specimen is a consumable goods. Expiration date is given below. But when it has a hurt, recommend replacing a new cover immediately. Expiration date:The number: 20 explosive fracture of the specimens or 1 year (brief period) |
Force Measurement Display | Measuring method | : | A high-precision pressure cell to measure pressures inside the cylinder |
Force range | : | Rangeless | |
Precision of force | : | Within ±1.0% of indicated value (Within the range from 1 of the ratings to 1/250) | |
Automatic electrical force calibration unit | : | Provided | |
Automatic force zero-adjustment function | : | Provided | |
Display Resolution | Display Range Unit: % of the testing machine capacity) | : | ≦ 3.2 |
> 3.2 ≦ 18 |
|||
> 18 | |||
Display Resolution | : | 1/240,000 | |
1/60,000 | |||
1/12,000 | |||
Liquid crystal display (LCD touch panel) | 1) Type of force display | : | Digital LCD |
2) Test force display unit | : | SI system: N, kN kgf system: kgf, tf Pound system: lbf, kip |
|
: | A stress value is displayed according to the above systems of units. | ||
: | The maximum force point is displayed by operating the mode selector key. | ||
: | The break point is displayed by operating the mode selector key. | ||
Analog force indicator (Optional) | 1) Type of force display | : | Digital/analog display |
2) Force display unit | : | SI system: kN kgf system: tf Pound system: kip |
|
3) Display Resolution | : | Equivalent to 3.2.1 6) | |
4) Analog display | : | Displayed by full-scale of virtual force Virtual Range: 6 steps selection (x1, x2, x5,x10,x20,x50 or x1,x2,x4,x10,x20,x40) Scale plate diameter: 450 mm Minimum scale: 1/600 With a zero-position memory function |
|
5) Trace data display function | : | * Maximum force value display Function | |
A force value is displayed according to the systems of units described in the item 2). | |||
* The Maximum test force value is held and shown by the Maximum force pointer and the digital display. | |||
Stroke Measurement Display | 1) Measurement method | : | Measurement using optical encoder |
2) Ram stroke display | : | Digital LCD | |
Other Functions | 1) USB memory function | : | Inserting the USB memory to the testing machine allows loading the method files and saving the result files (This function requires the data processing software TRAPEZIUMX.) |
2) Speed display function | : | Displays the current stress, force speed, stroke speed and displacement speed. |
|
3) Specimen protection function | : | Automatically removes the load applying to the specimen before the test. |
|
4) Explosive fracture prevention function | : | Automatically removes the load applying to the specimen after specimen break detecting. Caution: This function is not always applied to all specimens. |
|
Safety Stop Functions | 1) Emergency stop switch | : | Provided at the front of the Control/Measuring unit. |
2) Overload limiter | : | Automatically stops the Testing Machine when a force value reaches "102% of the full-scale force". |
|
5) Ram stroke limiter | : | Automatically stops the Testing Machine when the ram stroke reaches the upper limit. |
|
6) Software limit detection | : | Parameters: Stroke/Force/Displacement The alarm display appears when reaching the specified limit value. |
|
7) Hydraulic pump motor overcurrent protecting function | : | Provided (for the loading unit and grips) | |
8) Main power supply electric leakage/overcurrent protecting function |
: | Provided | |
9) Automatic control stop function | : | Provided |

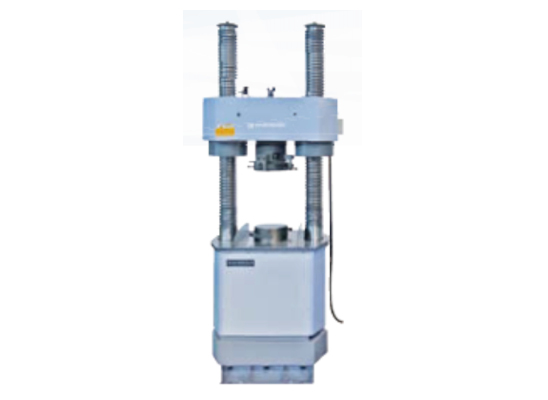

Loading unit | Maximum loading capacity | : | 2000 kN |
Compression test | : | Distance between the platens Max. 800 mm | |
Platen Upper φ220mm Lower φ220mm | |||
Efective distance between columns | : | 440 mm | |
Ram stroke | : | 150 mm | |
Loading rate | : | Max. 30 mm/min (60Hz) | |
Max. 25 mm/min (50Hz) | |||
(When the hydraulic fluid temperature is 20°C) | |||
Size | : | W 860 x D 620 x H 2250 | |
Power supply capacity 3-phase, 200/220 V, 50/60 Hz | : | Approx. 5 kVA | |
Crosshead speed | : | Approx. 250 mm/min (60Hz) | |
Approx. 210mm/min (50Hz) | |||
Hydraulic System | : | 1) Hydraulic system for the loading | |
2) Hydraulic fluid cooling unit (optional) | |||
To operate this testing machine continuosly for at least 30 minutes, the optional hydraulic fluid cooling is required. To continue hold control or an equivalent test for at least 30 minutes, the optional hydraulic fluid cooling unit is also required | |||
Shatterproof cover for specimen | : | Size of the specimen φ 100 mm x H 200 mm | |
Shatterproof cover is given below. But when it has a hurt, recommend replacing a new cover immediately. |
Force Measurement Display | Measuring method | : | A high-precision pressure cell to measure pressures inside the cylinder |
Force range | : | Range less | |
Precision of force | : | Within ±1.0% of indicated value (Within the range from 1 of the ratings to 1/250) | |
Automatic electrical force calibration unit | : | Provided | |
Automatic force zero-adjustment function | : | Provided | |
Display Resolution | Display Range Unit: % of the testing machine capacity) | : | ≦ 3.2 |
> 3.2 | |||
≦ 18 | |||
>18 | |||
Display Resolution | : | 1/200,000 | |
1/50,000 | |||
1/10,000 | |||
Liquid crystal display (LCD touch panel) | 1) Type of force display | : | Digital LCD |
2) Test force display unit | SI System; N, kN | ||
3) Trace data display function | Kgf System; kgf, tf | ||
Pound System; lbf, kip | |||
: | A stress value is displayed according to the above systems of units | ||
The maximum force point is displayed by operating the mode selector key | |||
The break point is displayed by operating the mode selector key | |||
Analog force indicator (Optional) | 1) Type of force display | : | Digital/analog display |
2) Force display unit | : | SI System; N, kN | |
3) Display Resolution | Kgf System; kgf, tf | ||
4) Analog display | Pound System; lbf, kip | ||
5) Trace data display function | Displayed by full-scale of virtual force | ||
Virtual range: 6 steps selection (x1, x2, x5, x10, x20, x50, or x1, x2, x4, x10, x20, x50) | |||
Scale plate diameter: 450 mm | |||
Minimum scale: 1/1000 | |||
with a zero-position memory function | |||
Stroke Measurement Display | 1) Measurement method | Measurement using optical encoder | |
2) Ram stroke display | Digital LCD | ||
Other Functions | 1) USB memory function | : | Inserting the USB memory to the testing machine allows loading the method files and saving the result files |
2) Speed display function | : | Display the curret stress, force speed, stroke speed and displacement speed | |
3) Specimen protection function | : | automatically removed the load applying to the specimen before the test | |
4) Explosive fracture prevention function | : | automatically removed the load applying to the specimen after specimen break detecting | |
Safety Stop Functions | 1) Emergency stop switch | : | Provided at the front of the control/measuring unit |
2) Overload limiter | : | automatically stops the Testing Machine when a force value reaches "102% of the full-scale force" | |
5) Ram stroke limiter | : | Automatically stops the Testing Machine when the ram stroke reach the upper limit | |
6) Software limit detection | : | Parameters: stroke/force/displacement | |
7) Hydraulic pump motor overcurrent protecting function | : | Provided | |
8) Main power supply electric leakage/overcurrent protecting function |
: | Provided | |
9) Automatic control stop function | : | Provided |
Loading unit | Maximum loading capacity | : | 3000 kN |
Compression test | : | Distance between the platens Max. 900 mm | |
Platen Upper φ220mm Lower φ220mm | |||
Efective distance between columns | : | 540 mm | |
Ram stroke | : | 150 mm | |
Loading rate | : | Max. 30 mm/min (60Hz) | |
Max. 25 mm/min (50Hz) | |||
(When the hydraulic fluid temperature is 20°C) | |||
Size | : | W 1070 x D 710 x H 2600 | |
Power supply capacity 3-phase, 200/220 V, 50/60 Hz | : | Approx. 7 kVA | |
Crosshead speed | : | Approx. 250 mm/min (60Hz) | |
Approx. 210mm/min (50Hz) | |||
Hydraulic System | : | 1) Hydraulic system for the loading | |
2) Hydraulic fluid cooling unit (optional) | |||
To operate this testing machine continuosly for at least 30 minutes, the optional hydraulic fluid cooling is required. To continue hold control or an equivalent test for at least 30 minutes, the optional hydraulic fluid cooling unit is also required | |||
Shatterproof cover for specimen | : | Size of the specimen φ 100 mm x H 200 mm | |
Shatterproof cover is given below. But when it has a hurt, recommend replacing a new cover immediately. |
Force Measurement Display | Measuring method | : | A high-precision pressure cell to measure pressures inside the cylinder |
Force range | : | Range less | |
Precision of force | : | Within ±1.0% of indicated value (Within the range from 1 of the ratings to 1/250) | |
Automatic electrical force calibration unit | : | Provided | |
Automatic force zero-adjustment function | : | Provided | |
Display Resolution | Display Range Unit: % of the testing machine capacity) | : | ≦ 3.2 |
> 3.2 | |||
≦ 18 | |||
>18 | |||
Display Resolution | : | 1/200,000 | |
1/50,000 | |||
1/10,000 | |||
Liquid crystal display (LCD touch panel) | 1) Type of force display | : | Digital LCD |
2) Test force display unit | SI System; N, kN | ||
3) Trace data display function | Kgf System; kgf, tf | ||
Pound System; lbf, kip | |||
: | A stress value is displayed according to the above systems of units | ||
The maximum force point is displayed by operating the mode selector key | |||
The break point is displayed by operating the mode selector key | |||
Analog force indicator (Optional) | 1) Type of force display | : | Digital/analog display |
2) Force display unit | : | SI System; N, kN | |
3) Display Resolution | Kgf System; kgf, tf | ||
4) Analog display | Pound System; lbf, kip | ||
5) Trace data display function | Displayed by full-scale of virtual force | ||
Virtual range: 6 steps selection (x1, x2, x5, x10, x20, x50, or x1, x2, x4, x10, x20, x50) | |||
Scale plate diameter: 450 mm | |||
Minimum scale: 1/1000 | |||
with a zero-position memory function | |||
Stroke Measurement Display | 1) Measurement method | Measurement using optical encoder | |
2) Ram stroke display | Digital LCD | ||
Other Functions | 1) USB memory function | : | Inserting the USB memory to the testing machine allows loading the method files and saving the result files |
2) Speed display function | : | Display the curret stress, force speed, stroke speed and displacement speed | |
3) Specimen protection function | : | automatically removed the load applying to the specimen before the test | |
4) Explosive fracture prevention function | : | automatically removed the load applying to the specimen after specimen break detecting | |
Safety Stop Functions | 1) Emergency stop switch | : | Provided at the front of the control/measuring unit |
2) Overload limiter | : | automatically stops the Testing Machine when a force value reaches "102% of the full-scale force" | |
5) Ram stroke limiter | : | Automatically stops the Testing Machine when the ram stroke reach the upper limit | |
6) Software limit detection | : | Parameters: stroke/force/displacement | |
7) Hydraulic pump motor overcurrent protecting function | : | Provided | |
8) Main power supply electric leakage/overcurrent protecting function |
: | Provided | |
9) Automatic control stop function | : | Provided |
Maximum loading capacity | : | 5000 kN | |
Compression test | : | Distance between the platens Max. 430 mm | |
Platen Upper φ220mm Lower φ220mm | |||
Loading speed | : | 0 to 25 mm/min |
