AbraPol-30
| c/n | : 06306146 |

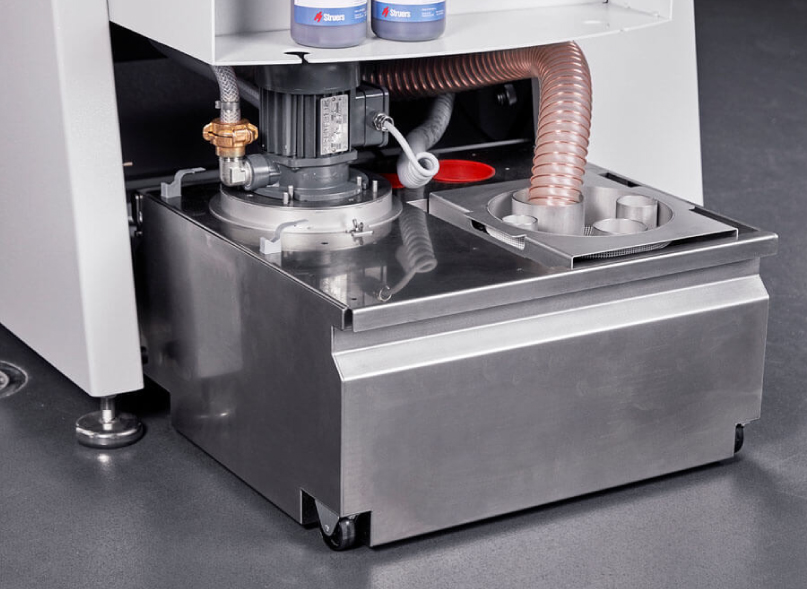

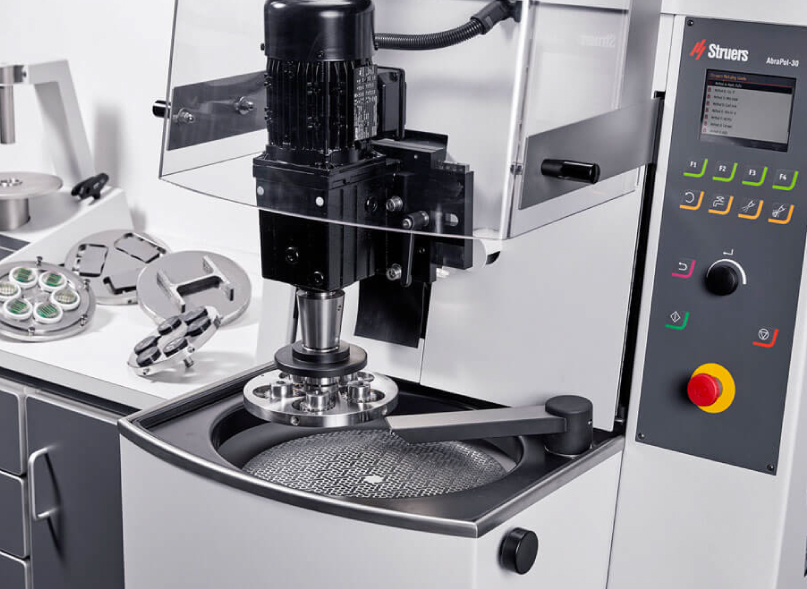

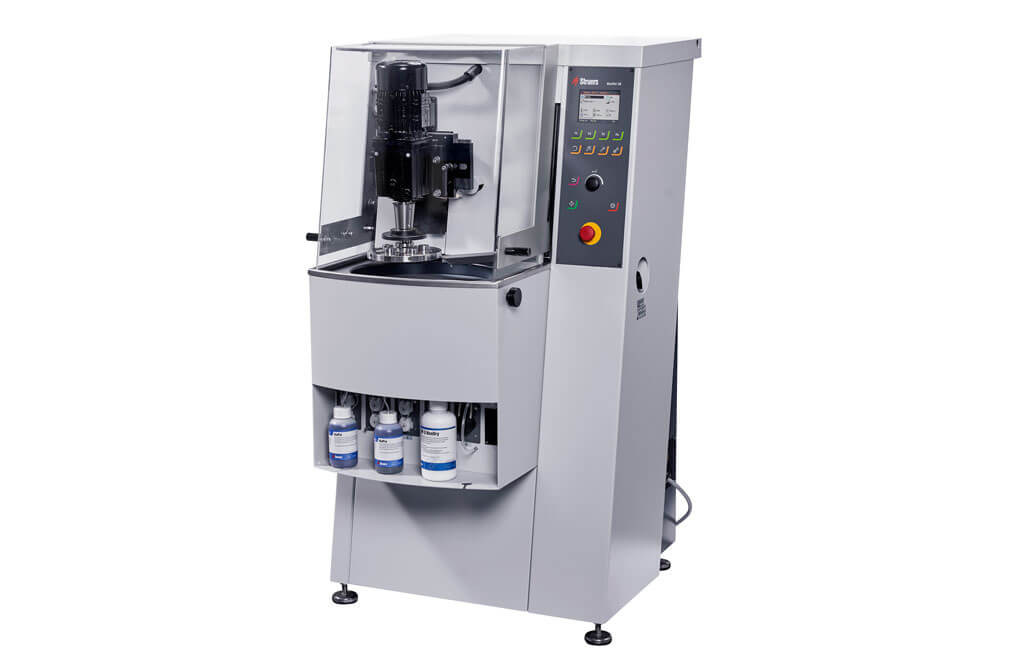

Advanced semi-automatic machine for grinding and polishing of specimens in specimen holders up to 200 mm/8” dia. Removal rate sensor and transparent safety cover included. Suspension/lubricant and oxide suspension pump units, recirculation cooling tank, pump and filter, grinding/polishing discs and specimen holders are available separately.
Technical data
| Disc | Diameter | : 300 mm / 12" or 350 mm / 14" |
| Speed | : 40 - 600 rpm, adjustable in steps of 10 rpm | |
| Rotational direction | : Counter-clockwise | |
| Motor power, continuous (S1) | : 2.2 kW | |
| Specimen holder | Speed | : 50 - 300 rpm, adjustable in steps of 10 rpm |
| Rotational direction | : Clockwise, Counter-clockwise | |
| Force | : 50 - 700 N | |
| Max. size sample holder | : 200 mm / 8" | |
| Positioning of specimen holder | X- direction | : 65 mm |
| Operation Modes | Semi automatic and manual preparation | |
| Process mode | Time | : 5 sec. - 10 min |
| Removal | : 0.05 - 5 mm | |
| Safety | Please refer to the Declaration of Conformity | |
| Noise level | At idle running, at a distance of 1.0 m / 39.4" from the machine | : 52 db (A) |
| Surrounding temperature | : 5 - 40 °C / 41 - 104 °F | |
| Humidity | : Non condensing 0 - 95 % RH | |
| Software and electronics | Controls | : Touch pad and turn/push knob |
| Memory | : FLASH-ROM / RAM / NV-RAM | |
| LC Display | : TFT-colour 320x240 dots with LED back light | |
| Supply | Voltage / frequency | : 3x200 - 240 50/60Hz, 3x380 - 480 50/60Hz |
| Power inlet | : 3 phase (3L + PE) | |
| Power, nominal load | : 3 kW | |
| Pressure for tap water | : 1 - 4 bar / 14.5-58 psi | |
| Flow for tap water | : min. 10 l/min (2.6 gpm) | |
| Water inlet diameter | : 3/4" | |
| Water outlet diameter | : 50 mm (2") | |
| Compressed air inlet diameter | : 6 mm (¼") | |
| Compressed air pressure | : 6 - 9,9 bar (w87-145 psi) | |
| Compressed air flow | : 30 l/min (6,6 gpm) | |
| Compressed air quality | : ISO 8573-1, class 3 | |
| Recirculation unit | Optional | |
| Pump for recirculation | Optional | |
| Drain | Diameter | : 50 mm / 2" |
| Exhaust | Diameter | : 50 mm (2") |
| Recommended capacity for exhaust system | : 1000 l/m (265 gpm) | |
Physical Specifications
| Dimensions and weight | Width | : 84 cm (33") |
| Depth | : 98 cm (39") | |
| Height closed | : 156 cm (62") | |
| Height open | : 187 cm (74") | |
| Weight | : 400 kg (882 lbs) | |
| Beacon | Optional | : Sound, Red/Yellow/ Green light |
AbraPol-30 with shift valve
| c/n | : 06306246 |
Advanced semi-automatic machine for grinding and polishing of specimens in specimen holders up to 200 mm/8” dia. Removal rate sensor, transparent safety cover and shift valve for recirculation or drain included. Suspension/lubricant and oxide suspension pump units, recirculation cooling tank, pump and filter, grinding/polishing discs and specimen holders are available separately.
Technical data
| Disc | Diameter | : 300 mm / 12" or 350 mm / 14" |
| Speed | : 40 - 600 rpm, adjustable in steps of 10 rpm | |
| Rotational direction | : Counter-clockwise | |
| Motor power, continuous (S1) | : 2.2 kW | |
| Specimen holder | Speed | : 50 - 300 rpm, adjustable in steps of 10 rpm |
| Rotational direction | : Clockwise, Counter-clockwise | |
| Force | : 50 - 700 N | |
| Max. size sample holder | : 200 mm / 8" | |
| Positioning of specimen holder | X- direction | : 65 mm |
| Operation Modes | Semi automatic and manual preparation | |
| Process mode | Time | : 5 sec. - 10 min |
| Removal | : 0.05 - 5 mm | |
| Safety | Please refer to the Declaration of Conformity | |
| Noise level | At idle running, at a distance of 1.0 m / 39.4" from the machine | : 52 db (A) |
| Surrounding temperature | : 5 - 40 °C / 41 - 104 °F | |
| Humidity | : Non condensing 0 - 95 % RH | |
| Software and electronics | Controls | : Touch pad and turn/push knob |
| Memory | : FLASH-ROM / RAM / NV-RAM | |
| LC Display | : TFT-colour 320x240 dots with LED back light | |
| Supply | Voltage / frequency | : 3x200 - 240 50/60Hz, 3x380 - 480 50/60Hz |
| Power inlet | : 3 phase (3L + PE) | |
| Power, nominal load | : 3 kW | |
| Pressure for tap water | : 1 - 4 bar / 14.5-58 psi | |
| Flow for tap water | : min. 10 l/min (2.6 gpm) | |
| Water inlet diameter | : 3/4" | |
| Water outlet diameter | : 50 mm (2") | |
| Compressed air inlet diameter | : 6 mm (¼") | |
| Compressed air pressure | : 6 - 9,9 bar (w87-145 psi) | |
| Compressed air flow | : 30 l/min (6,6 gpm) | |
| Compressed air quality | : ISO 8573-1, class 3 | |
| Recirculation unit | Optional | |
| Pump for recirculation | Optional | |
| Drain | Diameter | : 50 mm / 2" |
| Exhaust | Diameter | : 50 mm (2") |
| Recommended capacity for exhaust system | : 1000 l/m (265 gpm) | |
Physical Specifications
| Dimensions and weight | Width | : 84 cm (33") |
| Depth | : 98 cm (39") | |
| Height closed | : 156 cm (62") | |
| Height open | : 187 cm (74") | |
| Weight | : 400 kg (882 lbs) | |
| Beacon | Optional | : Sound, Red/Yellow/ Green light |
