SZX7
Produk / Evident Olympus / Stereo Microscope / SZX7
SZX7

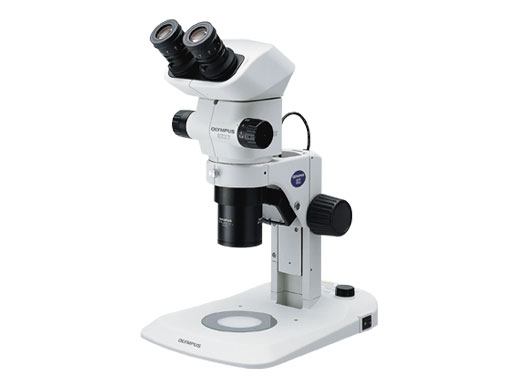

Mikroskop stereo SZX7 memiliki rasio zoom 7: 1, perlindungan pelepasan muatan elektrostatis terintegrasi, dan menggunakan sistem optik Galilea yang canggih untuk gambar yang cemerlang dan sangat terselesaikan. Fitur ergonomis termasuk kontrol mikroskop yang mudah diakses dan tabung mata yang dapat disesuaikan untuk tampilan yang nyaman dengan harga yang terjangkau.
| Stereomicroscope System SZX7 Specifications | ||||||
| Optical System | Galilean Optical System | |||||
| Total Magnification | 4.0x-336x*1 | |||||
| Zoom Body | Zoom Ratio | 7 (0.8x-5.6x) | ||||
| AS | Option | |||||
| Observation Tube | Binocular/Trinocular/Tilting Trinocular Observation Tube | |||||
| Extendable Eyepoint Adjuster | SZX2-EEPA | |||||
| Focus | Stand | |||||
| Objective Lens | Magnification | Type | N.A. | W.D. (mm) | Total Magnification *2 *3 | Field Diameter of View (mm)*2 *3 |
| 0.5x | Plan Achromat | 0.05 | 171 | 4x-28x | Ø55-Ø7.9 | |
| 0.75x | Plan Achromat | 0.075 | 116 | 6x-42x | Ø36.7-Ø5.2 | |
| 1x | Plan Apochromat | 0.1 | 81 | 8x-56x | Ø27.5-Ø3.9 | |
| Achromat | 0.1 | 90 | 8x-56x | Ø27.5-Ø3.9 | ||
| 1.25x | Plan Apochromat | 0.125 | 60 | 10x-70x | Ø22-Ø3.1 | |
| Achromat | 0.125 | 68 | 10x-70x | Ø22-Ø3.1 | ||
| 1.5x | Plan Achromat | 0.15 | 45.5 | 12x-84x | Ø18.3-Ø2.6 | |
| 2x | Plan Achromat | 0.2 | 33.5 | 16x-112x | Ø13.8-Ø2.0 | |
| Dimensions (W x D x H) | 194 mm x 253 mm x 403 mm | |||||
| Weight | 4.5 kg (in Standard Configularion) | |||||
| Remark | *1 total magnification range possible by combining an objective lens and eyepiece *2 in the case of using eyepiece 10x *3 SZX2-LTTR: intermediate magnification is 1.25X |
|||||
