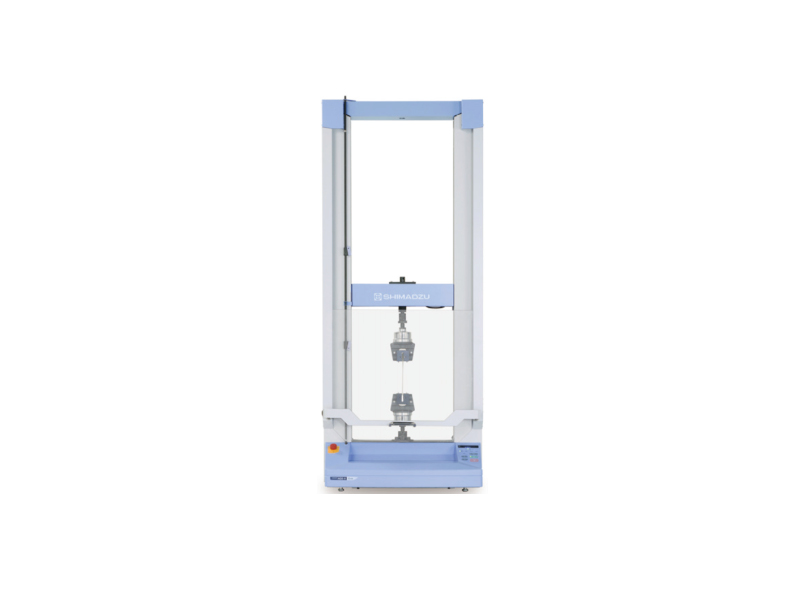

AGS-1N/2N/5NX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | — | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Sampling Speed | : | 1 ms max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | Load Cell (with CAL cable) | : | 1N / 2N / 5N | |
| Others | : | Power cable (2.5 m), power fuse, turning rod, cable clamps, instruction manual | ||
| Dimensions and Weight | : | Standard type: 653 mm (W) × 520 mm (D) × 1603 mm (H), Approx. 85 kg | ||
| 250 mm extension type: 653 mm (W) × 520 mm (D) × 1853 mm (H), Approx. 90 kg | ||||
| 500 mm extension type: 653 mm (W) × 520 mm (D) × 2103 mm (H), Approx. 95 kg | ||||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Power Consumption | : | 300W | ||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-10N/20N/50NX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | (965mm, SCG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Sampling Speed | : | 1 ms max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | Load Cell (with CAL cable) | : | 10N / 20N / 50N | |
| Others | : | Power cable (2.5 m), power fuse, turning rod, cable clamps, instruction manual | ||
| Dimensions and Weight | : | Standard type: 653 mm (W) × 520 mm (D) × 1603 mm (H), Approx. 85 kg | ||
| 250 mm extension type: 653 mm (W) × 520 mm (D) × 1853 mm (H), Approx. 90 kg | ||||
| 500 mm extension type: 653 mm (W) × 520 mm (D) × 2103 mm (H), Approx. 95 kg | ||||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Power Consumption | : | 300W | ||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-100NX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | (940mm, SCG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Sampling Speed | : | 1 ms max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | Load Cell (with CAL cable) | : | 100N | |
| Others | : | Power cable (2.5 m), power fuse, turning rod, cable clamps, instruction manual | ||
| Dimensions and Weight | : | Standard type: 653 mm (W) × 520 mm (D) × 1603 mm (H), Approx. 85 kg | ||
| 250 mm extension type: 653 mm (W) × 520 mm (D) × 1853 mm (H), Approx. 90 kg | ||||
| 500 mm extension type: 653 mm (W) × 520 mm (D) × 2103 mm (H), Approx. 95 kg | ||||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Power Consumption | : | 300W | ||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-500NX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | (935mm, SCG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Sampling Speed | : | 1 ms max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | Load Cell (with CAL cable) | : | 500N | |
| Others | : | Power cable (2.5 m), power fuse, turning rod, cable clamps, instruction manual | ||
| Dimensions and Weight | : | Standard type: 653 mm (W) × 520 mm (D) × 1603 mm (H), Approx. 85 kg | ||
| 250 mm extension type: 653 mm (W) × 520 mm (D) × 1853 mm (H), Approx. 90 kg | ||||
| 500 mm extension type: 653 mm (W) × 520 mm (D) × 2103 mm (H), Approx. 95 kg | ||||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Power Consumption | : | 300W | ||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-1kNX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | (930mm, SCG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Sampling Speed | : | 1 ms max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | Load Cell (with CAL cable) | : | 1kN | |
| Others | : | Power cable (2.5 m), power fuse, turning rod, cable clamps, instruction manual | ||
| Dimensions and Weight | : | Standard type: 653 mm (W) × 520 mm (D) × 1603 mm (H), Approx. 85 kg | ||
| 250 mm extension type: 653 mm (W) × 520 mm (D) × 1853 mm (H), Approx. 90 kg | ||||
| 500 mm extension type: 653 mm (W) × 520 mm (D) × 2103 mm (H), Approx. 95 kg | ||||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Power Consumption | : | 300W | ||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-5kNX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | 780mm, MWG 885mm, SCG |
||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Sampling Speed | : | 1 ms max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | Load Cell (with CAL cable) | : | 5kN | |
| Others | : | Power cable (2.5 m), power fuse, turning rod, cable clamps, instruction manual | ||
| Dimensions and Weight | : | Standard type: 653 mm (W) × 520 mm (D) × 1603 mm (H), Approx. 85 kg | ||
| 250 mm extension type: 653 mm (W) × 520 mm (D) × 1853 mm (H), Approx. 90 kg | ||||
| 500 mm extension type: 653 mm (W) × 520 mm (D) × 2103 mm (H), Approx. 95 kg | ||||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Power Consumption | : | 300W | ||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-10kNX (Table-top)
Specifications
| Loading Method | : | Direct high-precision constant speed strain control method via | ||
| non-backlash ball screw drive | ||||
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1000 mm/min (stepless) | |
| Max. Return Speed | : | 1500 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | 1200 mm (760mm, MWG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Data Capture Rate | : | 1000 Hz max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | : | Load cell (with CAL cable), Power cable (2.5 m), turning rod, cable clamps, | ||
| instruction manual | ||||
| Dimensions | : | W653 × D520 × H1603 mm | ||
| Weight | : | 85 kg | ||
| Power Requirements | : | Single phase 100/120/220/240 V AC (switching type) 50/60 Hz 1.2 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-20kNX (Table-top)
Specifications
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 1600 mm/min (stepless) | |
| Max. Return Speed | : | 2200 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | 1250 mm (765 mm, MWG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Data Capture Rate | : | 1000 Hz max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | : | Load Cell (with CAL cable), Power cable (5 m), turning rod, cable clamps, | ||
| instruction manual | ||||
| Dimensions | : | W718 × D641 × H1633 mm | ||
| Weight | : | 235 kg | ||
| Power Requirements | : | Single phase AC 200–230 50/60 Hz 4.0 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
AGS-50kNX (Table-top)
Specifications
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 800 mm/min (stepless) | |
| Max. Return Speed | : | 1100 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | 1210 mm (745 mm, MWG) | ||
| Effective Test Width | : | 425mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Data Capture Rate | : | 1000 Hz max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | : | Load Cell (with CAL cable), Power cable (5 m), turning rod, cable clamps, | ||
| instruction manual | ||||
| Dimensions | : | W718 × D641 × H1633 mm | ||
| Weight | : | 260 kg | ||
| Power Requirements | : | Single phase AC 200–230 50/60 Hz 4.0 kVA | ||
| Supply voltage fluctuations within ±10% of the set value. D-class (100 Ω max.) | ||||
| grounding resistance. | ||||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||

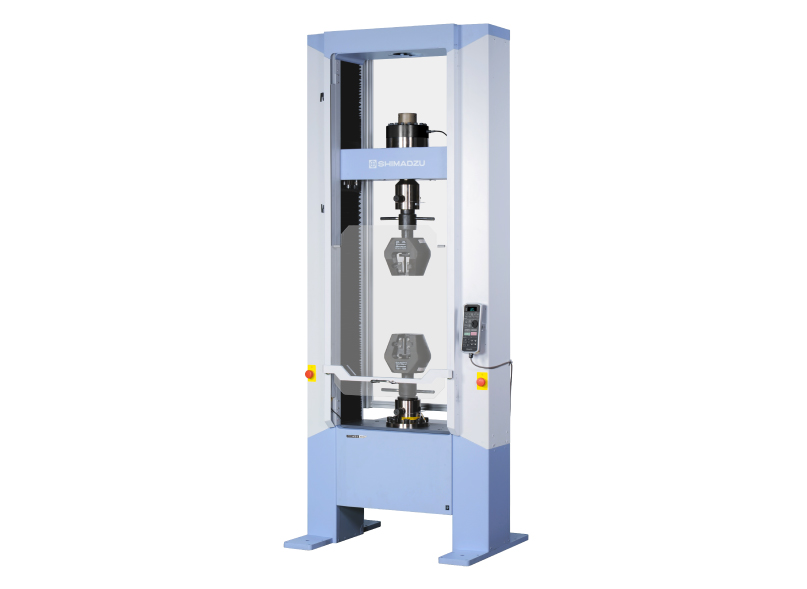

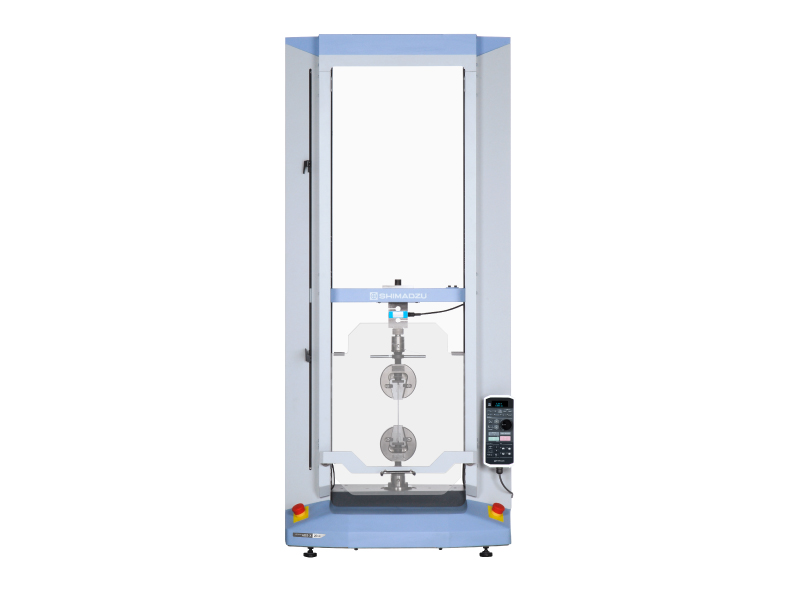

AGS-100kNX (Floor-top)
Specifications
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 800 mm/min (stepless) | |
| Max. Return Speed | : | 1100 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | To load cell capacity across entire speed range | ||
| Crosshead – Table Distance (Tensile stroke) *3 | : | 1255 mm (745 mm, MWG) | ||
| Effective Test Width | : | 600 mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Data Capture Rate | : | 1000 Hz max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | : | Load Cell (with CAL cable), Power cable (5 m), turning rod, cable clamps, | ||
| instruction manual | ||||
| Dimensions | : | W945 × D725 × H2164 mm | ||
| Weight | : | 525 kg | ||
| Power Requirements | : | 400 V model: Three phases AC 380–440 V 50/60 Hz 4.5 kVA | ||
| 200 V model: Three phases AC 200–230 V 50/60 Hz 6.5 kVA | ||||
| Supply voltage fluctuations within ±10% of the set value. | ||||
| 400 V model: C-class (10 Ω max.) grounding resistance. 200 V model: D-class (100 Ω max.) grounding resistance. |
||||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||

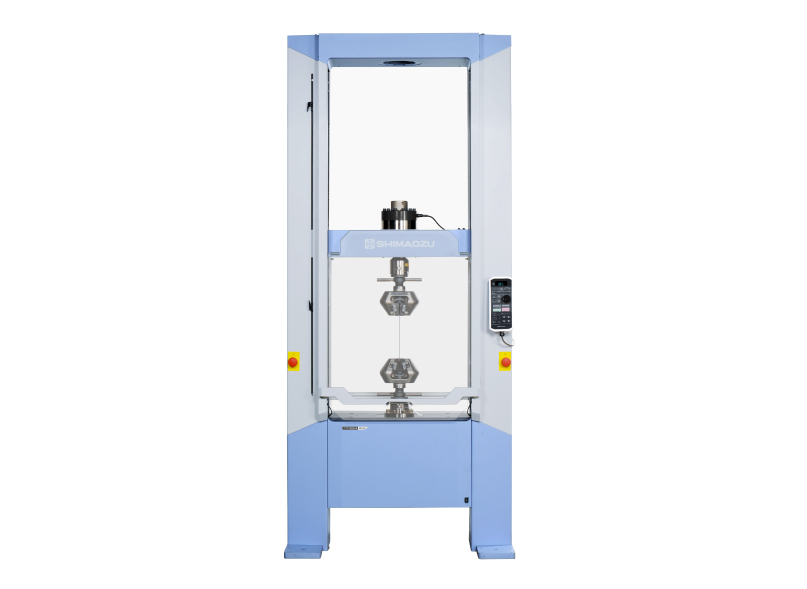

AGS-300kNX (Floor-top)
Specifications
| Force Measurement | Accuracy | High-Precision Type (1/500, ±0.5%) |
: | Within ±0.5% indicated test force (at 1/250 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, and ASTM E4, JIS B7721 Class 0.5.*1 |
| Standard-Precision Type (1/500, ±1%) |
: | Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, and ASTM E4, JIS B7721 Class 1. *1 |
||
| Calibration | : | Automatic test force calibration: select tensile, compression, or tensile | ||
| and compression | ||||
| Crosshead | Speed Range | : | 0.001 to 500 mm/min (stepless) | |
| Max. Return Speed | : | 550 mm/min | ||
| Crosshead Speed Accuracy *2 | : | ±0.1% | ||
| Crosshead Speed and Permitted Test Force | : | 0.001–200 kN: 0.001–500 mm/min (entire speed range) | ||
| 200–300 kN: 0.001–400 mm/min | ||||
| Crosshead – Table Distance (Tensile stroke) *3 | : | 1475 mm (635 mm, MWG) | ||
| Effective Test Width | : | 600 mm | ||
| Crosshead Position Detection | Measurement Method | : | Optical encoder | |
| Display Method | : | Digital display (display resolution: 0.001 mm) | ||
| Positional Accuracy | : | ±0.1% indicated value or ±0.01 mm, whichever is larger | ||
| Data Capture Rate | : | 1000 Hz max. *4 | ||
| Test Method Files | : | 40 files (PC link: 20 files, standalone controller: 20 files) | ||
| Standard Functions | : | • Automatic reading of load cell characteristic values | ||
| • Test force display function, Stress display function- Stroke display | ||||
| function, Position display function | ||||
| • External analog output (2 channels) | ||||
| • External analog input (2 channels) *4 | ||||
| • External digital input (2 channels) *4 | ||||
| • Analog recorder (option) output | ||||
| • Dataletty (option) output *5 | ||||
| • Automatic test force / stress control (Autotuning) | ||||
| • Automatic strain control (Autotuning) *4 | ||||
| • Test force auto-zeroing | ||||
| • Test force auto-calibration | ||||
| • Break detection, auto-return | ||||
| • Load cell overload detection | ||||
| • Touch-load detection function | ||||
| Accessories | : | Load Cell (with CAL cable), Power cable (5 m), turning rod, cable clamps, | ||
| instruction manual | ||||
| Dimensions | : | W945 × D725 × H2414 mm | ||
| Weight | : | 675 kg | ||
| Power Requirements | : | 400 V model: Three phases AC 380–440 V 50/60 Hz 5.5 kVA | ||
| 200 V model: Three phases AC 200–230 V 50/60 Hz 7.5 kVA | ||||
| Supply voltage fluctuations within ±10% of the set value. | ||||
| 400 V model: C-class (10 Ω max.) grounding resistance. 200 V model: D-class (100 Ω max.) grounding resistance. |
||||
| Operating Environment | : | Temperature: 5 °C to 40 °C Humidity: 20% to 80% (no condensation) | ||
| Floor vibrations: frequency 10 Hz max., amplitude 5 μm max. | ||||
