Accutom
Produk / Struers Metallography / Cutting Machine / Accutom
Accutom-10
| c/n | : 06286127 |
Precision cut-off and grinding machine.
With 75 - 150 mm dia. Cut-off wheel with variable speed 300 - 3000 rpm
Specifications
| Specimen holder rotation and oscilation | : Yes | |
| Automatic rotation of specimen holder | : No | |
| Motor rotation speed | : 300 - 3000 rpm (adjustable in steps of 50 rpm) | |
| Grinding | : Feed speed: 0.5 - 7.5 mm/s (adjustable in steps of 0.5 mm/s) | |
| Cutting | : Feed speed: 0.005 - 3 mm/s (adjustable in steps of 0.005 mm/s) | |
| Positioning Speed | X | : 10 mm/s |
| Y | : 13 mm/s | |
| Positioning Range | X Direction | : 60 mm (Precision 0.005 mm) |
| Y Direction | : 110 mm (Precision 0.1 mm) | |
| Cutting Capacity | Cut-off wheel size | : 75 - 150 mm / 3 - 6" dia. |
| Arbor Size | : 12.7 mm / 0.5" | |
| Length of cut-off specimen | : 40 mm / 195 mm for 25 mm dia. | |
| Length of workpiece to be clamped | : 250 mm | |
| Workpiece width and height | : 50 x 130 mm | |
| Workpiece cross section | : 54 mm without rotation / 108 mm with rotation | |
| Grinding Capacity | Cup Wheel | : 100 - 150 mm / 4 - 6" dia. Arbor size: 12.7 mm |
| Sample | : 95 x 95 mm / 3.7 x 3.7" | |
| Power | Nominal Load | : 370 W |
| Current, max | : 10 A | |
| Voltage | : 200 240 V / 50 - 60 Hz | |
| Dimensions and Weight | Height, Cover closed | : 440 mm / 17.3" |
| Height, Cover open | : 1065 mm / 42" | |
| Width | : 644 mm / 25.4" | |
| Depth | : 720 mm / 28.3" | |
| Depth, with plug | : 784 mm / 30.9" | |
| Weight | : 68 kg | |
| Software and Electronics | Controls | : Touchpad and turn/push knob |
| Memory | : FLASH-ROM / RAM / NV-RAM | |
| LC Display | : TFT-color 320 x 240 dots with LED Backlight | |
| Noise Level | : 60 dBA, at idle running, at a distance 1.0 m (39.4") | |
| Surrounding Temperature | : 5 - 40 °C / 41 - 104 °F | |
| Humidity | : 0 - 95% RH non condensing | |
| Safety | : Please refer to the Declaration of Conformity | |
| Recirculation cooling unit | Contents | 4.75 l (1.25 gallon) |
| Flow | 1.6 l/min. (0.4 gallon/min) | |

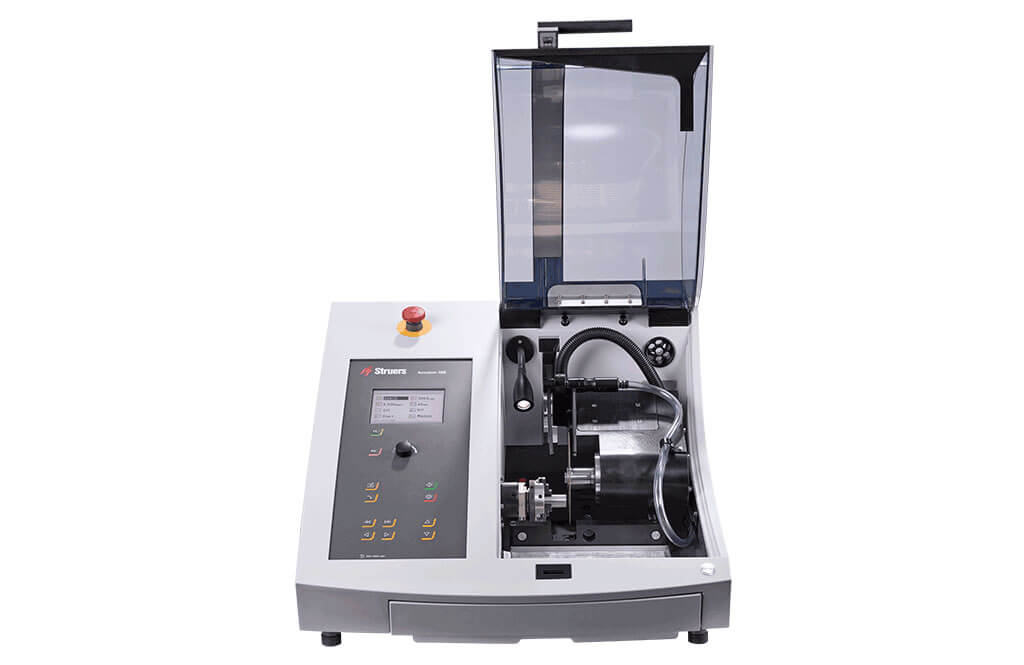

Accutom-100
| c/n | : 06176127 |
Precision cut-off and grinding machine.
With 75 - 150 mm dia. Cut-off wheel with variable speed 300 - 5000 rpm
Specifications
| Specimen holder rotation and oscilation | : Yes | |
| Automatic rotation of specimen holder | : Yes | |
| Motor rotation speed | : 300 - 5000 rpm (adjustable in steps of 50 rpm) | |
| Grinding | : Feed speed: 0.5 - 7.5 mm/s (adjustable in steps of 0.5 mm/s) | |
| Cutting | : Feed speed: 0.005 - 3 mm/s (adjustable in steps of 0.005 mm/s) | |
| Positioning Speed | X | : 10 mm/s |
| Y | : 13 mm/s | |
| Positioning Range | X Direction | : 60 mm (Precision 0.005 mm) |
| Y Direction | : 110 mm (Precision 0.1 mm) | |
| Cutting Capacity | Cut-off wheel size | : 75 - 150 mm / 3 - 6" dia. |
| Arbor Size | : 12.7 mm / 0.5" | |
| Length of cut-off specimen | : 40 mm / 195 mm for 25 mm dia. | |
| Length of workpiece to be clamped | : 250 mm | |
| Workpiece width and height | : 50 x 130 mm | |
| Workpiece cross section | : 54 mm without rotation / 108 mm with rotation | |
| Grinding Capacity | Cup Wheel | : 100 - 150 mm / 4 - 6" dia. Arbor size: 12.7 mm |
| Sample | : 95 x 95 mm / 3.7 x 3.7" | |
| Power | Nominal Load | : 370 W |
| Current, max | : 10 A | |
| Voltage | : 200 240 V / 50 - 60 Hz | |
| Dimensions and Weight | Height, Cover closed | : 440 mm / 17.3" |
| Height, Cover open | : 1065 mm / 42" | |
| Width | : 644 mm / 25.4" | |
| Depth | : 720 mm / 28.3" | |
| Depth, with plug | : 784 mm / 30.9" | |
| Weight | : 68 kg | |

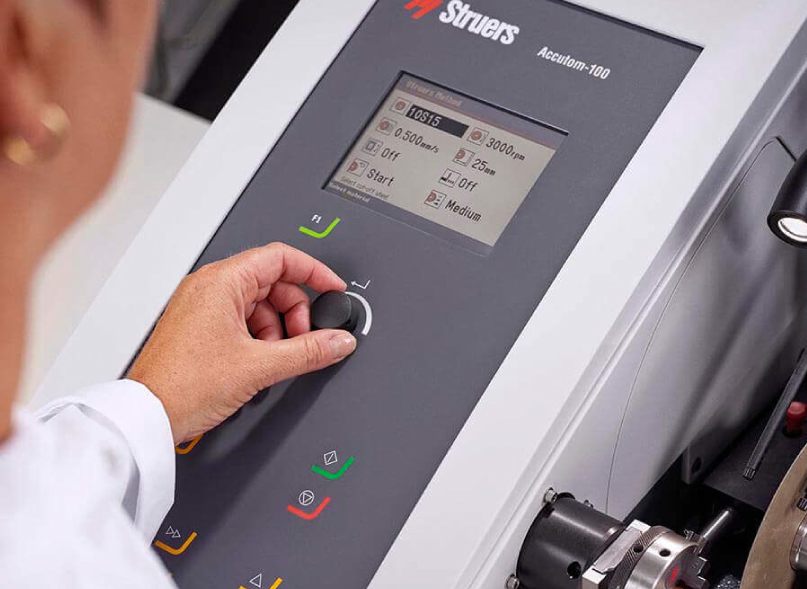

| Software and Electronics | Controls | : Touchpad and turn/push knob |
| Memory | : FLASH-ROM / RAM / NV-RAM | |
| LC Display | : TFT-color 320 x 240 dots with LED Backlight | |
| Noise Level | : 60 dBA, at idle running, at a distance 1.0 m (39.4") | |
| Surrounding Temperature | : 5 - 40 °C / 41 - 104 °F | |
| Humidity | : 0 - 95% RH non condensing | |
| Safety | : Please refer to the Declaration of Conformity | |
| Recirculation cooling unit | Contents | 4.75 l (1.25 gallon) |
| Flow | 1.6 l/min. (0.4 gallon/min) | |
