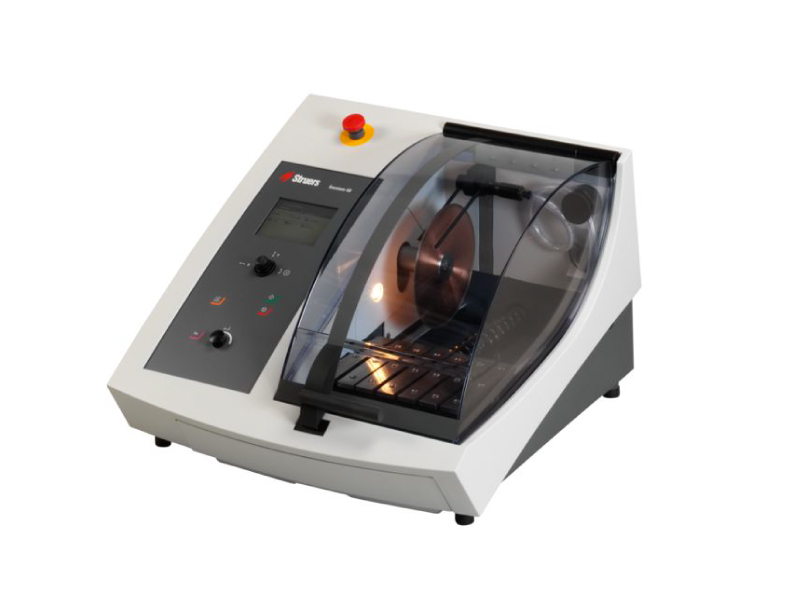

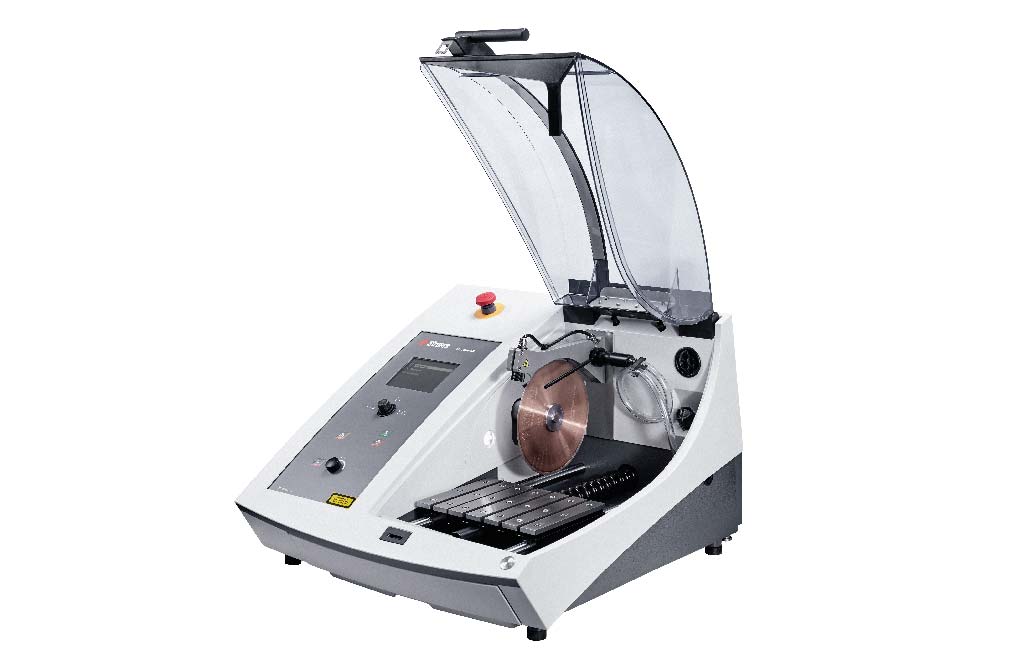

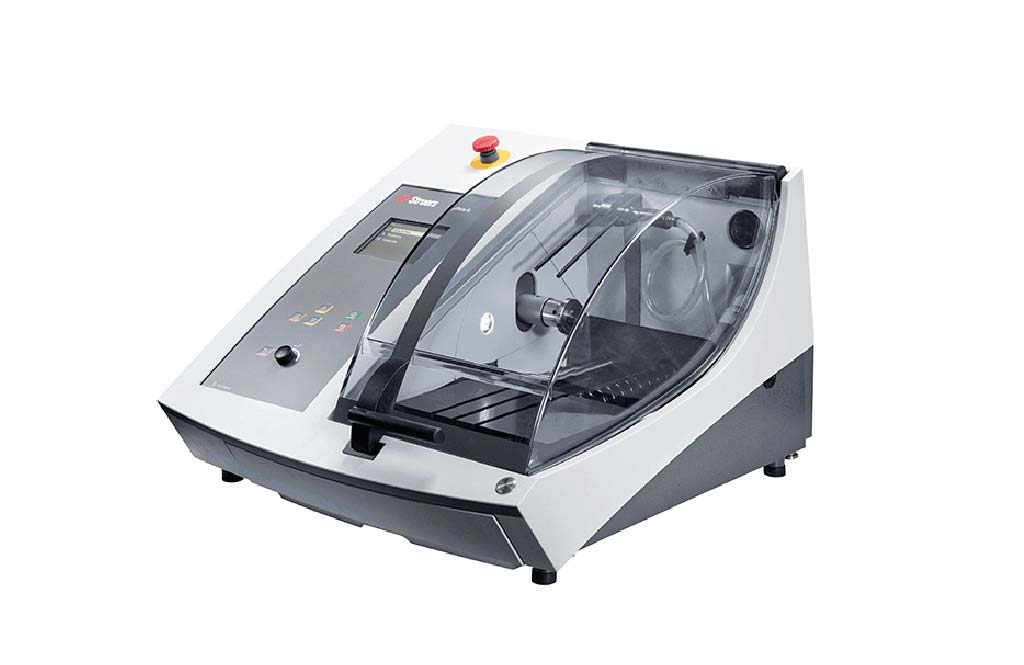

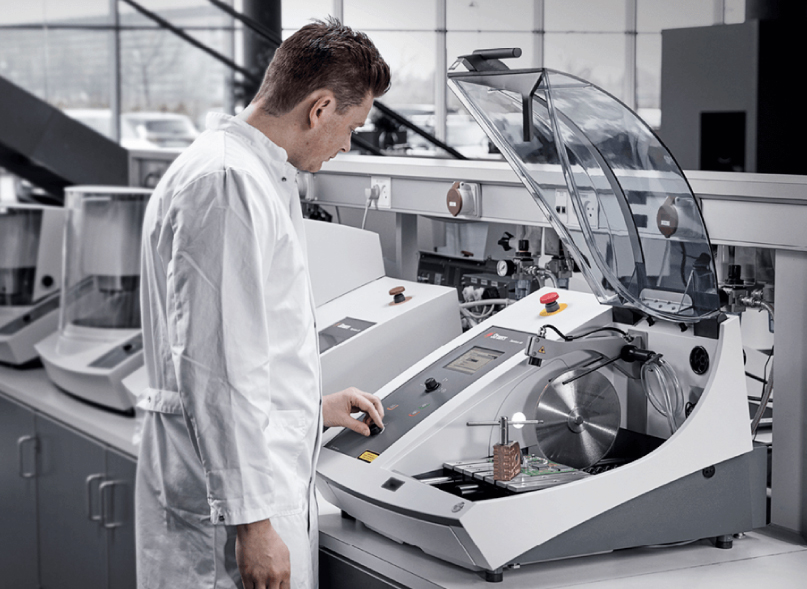

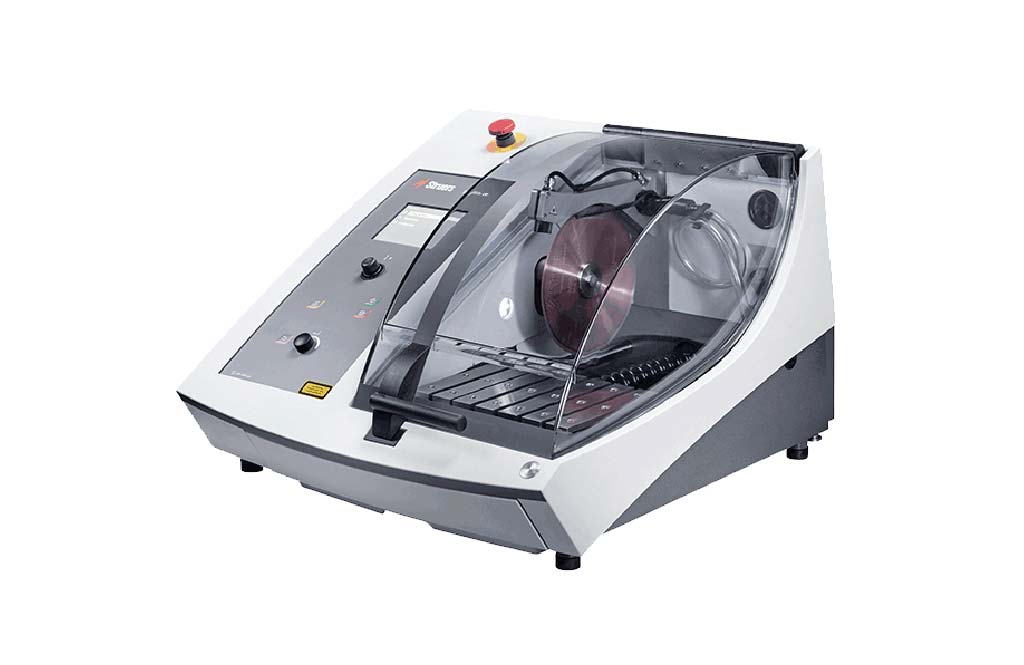

Secotom

Produk / Struers Metallography / Cutting Machine / Secotom

Struers Metallography

Cutting Machine Mounting Machine Grinding/Polishing Machine Electrolytic Preparation Non Destructive Test Hardness Tester Others Consumable

Secotom-6

Secotom-20

Secotom-60

Secotom-6

c/n : 06856127

Automatic cut-off machine for Ø200 mm (8") cut-off wheel.

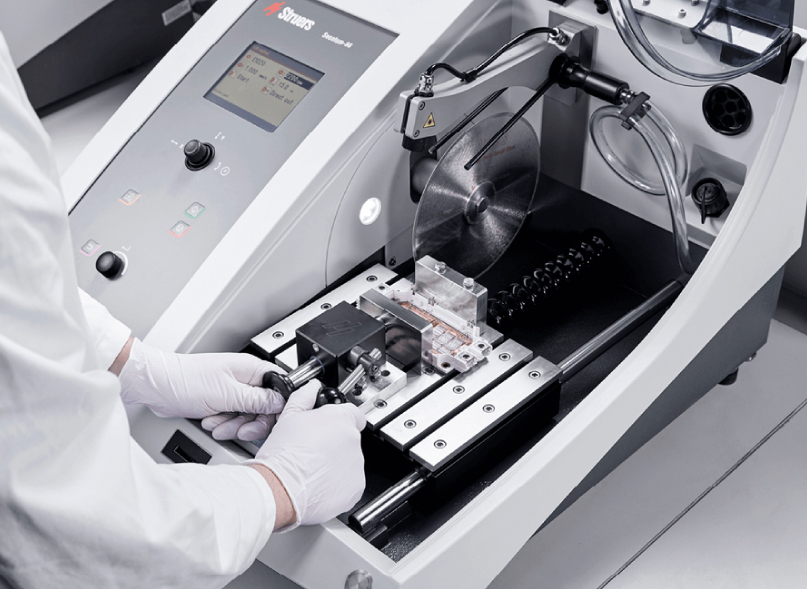

Cutting table with 8 mm T-slots.



Specifications

Cutting Table Feed Speed : 0.005 -3.0 mm/s / 0.3 - 7"/min (in steps of 0.005 mm)
Width : 253 mm / 10"
Length : 180 mm / 7.1"
Cutting Length : 0 -200 mm / 0 - 7.9" (in steps of 0.1 mm)
T-slots : 8.0 mm T-slots table unit
Cut-off Wheel Cut-off wheel size : 75 - 203 mm / 3 - 8" dia.
Arbor Size : 12.7 mm / 0.5" and 22 mm / 0.86"
Rotational speed : 1000 - 3000 rpm (in steps of 100 rpm)
Cutting Capacity : 42 mm dia. (1.7" dia), 42 x 170 mm (1.7" x 6.7")
Height Adjustment : None
Optional Stands X-table, Automatic : No
X-Stand, Manual : No
Rotary Stand : No
Functions OptiFeed : No
Methods : 1
Database : No
Laser   : No
Motor Power   : 0.8 kW
Controls   : Touchpad and turn/push knob
Recirculation Cooling Tank   : 4.7 l / 1.25 gallon
LC Display   : TFT-color 320x440 dots with LED Backlight
Noise Level   : LpA = 66 dB(A)
Surrounding Temperature   : 5 - 40 °C / 41 - 104 °F
Humidity   : >85% Relative Humidity
Supply Voltage / Frequency : 200 - 240 V / 50 - 60 Hz
Power, idle : 13 W
Current, max : 11.7 A
Safety : In compliance with all relevant EU directives
Exhaust : 50 mm / 2" dia.
Dimensions and Weight Height, Guard closed : 440 mm / 17.3"
Height, Guard open : 1055 mm / 41.5"
Width : 640 mm / 25.4"
Depth, with plug : 780 mm / 27.6"
Weight : 67 kg / 148 lbs

Secotom-20

c/n : 06856227

Automatic cut-off machine for Ø200 mm (8") cut-off wheel.
Cutting table with 8 mm T-slots.



Specifications

Cutting Table Feed Speed : 0.005 -3.0 mm/s / 0.3 - 7"/min (in steps of 0.005 mm)
Width : 258 mm / 10.2"
Length : 184 mm / 7.2"
Cutting Length : 0 -200 mm / 0 - 7.9" (in steps of 0.1 mm)
T-slots

: 8.0 mm T-slots with exchangeable T-slots plates (7 pcs)
Cut-off Wheel Cut-off wheel size : 75 - 203 mm / 3 - 8" dia.
Arbor Size : 12.7 mm / 0.5" and 22 mm / 0.86"
Rotational speed : 300 - 5000 rpm (in steps of 100 rpm)
Cutting Capacity : 70 mm dia. (2.8" dia), 165 x 50 mm (6.5" x 2")
Height Adjustment : 40 mm / 1.6" Manual
Optional Stands X-table, Automatic : No
X-Stand, Manual : Yes, Optional
Rotary Stand : Yes, Optional
Functions OptiFeed : Yes
Methods : 3
Database : No
Laser   : Yes
Motor Power   : 0.8 kW
Controls   : Touchpad, Joystick, and turn/push knob
Recirculation Cooling Tank   : 4.7 l / 1.25 gallon
LC Display   : TFT-color 320x440 dots with LED Backlight
Noise Level   : LpA = 66 dB(A)
Surrounding Temperature   : 5 - 40 °C / 41 - 104 °F
Humidity   : >85% Relative Humidity
Supply Voltage / Frequency : 200 - 240 V / 50 - 60 Hz
Power, idle : 13 W
Current, max : 11.7 A
Safety : In compliance with all relevant EU directives
Exhaust : 50 mm / 2" dia.
Dimensions and Weight Height, Guard closed : 440 mm / 17.3"
Height, Guard open : 1055 mm / 41.5"
Width : 640 mm / 25.4"
Depth, with plug : 780 mm / 27.6"
Weight : 73 kg / 161 lbs

Secotom-60

c/n : 06856327

Automatic cut-off machine for Ø200 mm (8") cut-off wheel.
Cutting table with 8 mm T-slots.



Specifications

Cutting Table Feed Speed : 0.005 -3.0 mm/s / 0.3 - 7"/min (in steps of 0.005 mm)
Width : 258 mm / 10.2"
Length : 184 mm / 7.2"
Cutting Length : 0 -200 mm / 0 - 7.9" (in steps of 0.1 mm)
T-slots : 8.0 mm T-slots with exchangeable T-slots plates (7 pcs)
Cut-off Wheel Cut-off wheel size : 75 - 203 mm / 3 - 8" dia.
Arbor Size : 12.7 mm / 0.5" and 22 mm / 0.86"
Rotational speed : 300 - 5000 rpm (in steps of 100 rpm)
Cutting Capacity : 70 mm dia. (2.8" dia), 165 x 50 mm (6.5" x 2")
Height Adjustment : 40 mm / 1.6" Automatic
Optional Stands X-table, Automatic : Yes, Optional
X-Stand, Manual : Yes, Optional
Rotary Stand : Yes, Optional
Functions OptiFeed : Yes
Methods : 10
Database : Yes
Laser   : Yes
Motor Power   : 1.1 kW
Controls   : Touchpad, Joystick, and turn/push knob
Recirculation Cooling Tank   : 4.7 l / 1.25 gallon
LC Display   : TFT-color 320x440 dots with LED Backlight
Noise Level   : LpA = 66 dB(A)
Surrounding Temperature   : 5 - 40 °C / 41 - 104 °F
Humidity   : >85% Relative Humidity
Supply Voltage / Frequency : 200 - 240 V / 50 - 60 Hz
Power, idle : 13 W
Current, max : 14.8 A
Safety : In compliance with all relevant EU directives
Exhaust : 50 mm / 2" dia.
Dimensions and Weight Height, Guard closed : 440 mm / 17.3"
Height, Guard open : 1055 mm / 41.5"
Width : 640 mm / 25.4"
Depth, with plug : 780 mm / 27.6"
Weight : 77 kg / 170 lbs
