DUH-211-211S
Produk / Shimadzu Material Testing Machine / Hardness Testing / DUH-211-211S

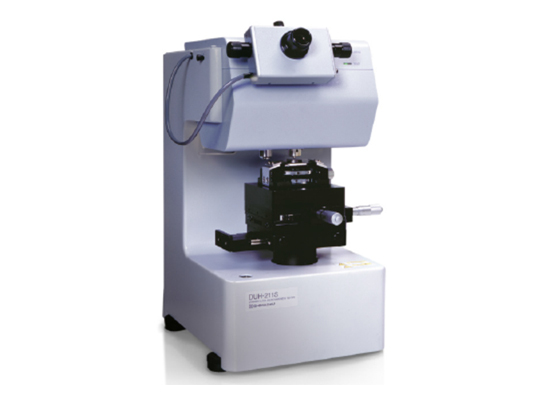

DUH-211
Specifications
| Loading Unit | Loading Method | : | Electromagnetic coil |
| Test Force Range | : | Full scale of 0.1 to 1,961 mN | |
| Test Force Accuracy | : | ±19.6 μN or ±1% of displayed test force, whichever is greater | |
| Minimum Measurement Increment | : | 0.196 μN (for a test force not exceeding 1.96 mN) | |
| Displacement Measurement Unit |
Measurement Method | : | Differential transformer |
| Measurement Range | : | 0 to 10 μm | |
| Minimum Measurement Increment | : | 0.0001 μm | |
| Linearity | : | ±2% of full scale (20 μm) | |
| Indenter | Type | : | Triangular pyramid indenter with tip angle of 115° (Vickers indenter and Knoop indenter are available as options.) |
| Tip Radius | : | 0.1 μm max. | |
| Optical Monitor | Total Magnication (microscope) | : | ×500 |
| Objective Lens | : | ×50 (Up to 2 lenses can be attached.) | |
| Eyepiece | : | ×10 | |
| Lighting Method | : | Reected illumination | |
| Light Source (lamp) | : | LED: 3 W, 3 V | |
| Light-Path Switching | : | Observation or photograph (selectable) | |
| Micrometer | Collimation Method | : | Direct connection between encoder and control handle; synchronized movement of two indexes |
| Detector | : | Optical encoder | |
| Effective Measurement Range | : | 200 μm (with ×50 objective lens) | |
| Minimum Measurement Increment | : | 0.01 μm/pulse | |
| Specimen Stage | Vertical Distance | : | Approx. 60 mm |
| Area | : | Approx. 125 (W) × 125 (L) mm | |
| Stage Movement Range | : | 25 mm in both X and Y directions | |
| Specimen Holder | : | Specimen dimensions (i.e., 8 (thickness) × 30 (width) mm) when thin-type attachment (type 3) is used | |
| Test Modes | : | Load–Hold Test | |
| Load–Unload Test | |||
| Cyclic Test | |||
| Required PC | OS | : | Windows® 7 (32/64 bit edition) |
| Specications | CPU | : | 1 GHz min. |
| Disk Drives | : | CD-ROM drive | |
| Display Resolution | : | 1024 × 768 min. | |
| Expansion Bus | : | PCI Express ×1, 2 slots min. more than one ×1 slot is reguired (or slot size ×2 or more) | |
| Utilities | Power Supply | : | Single phase, AC 100–115 V ± 10%, AC 230 V ± 10% (Ground resistance 100 ª max.) |
| Power Consumption | : | Approx. 100 W (not including power consumption of PC) | |
| Grounding | : | The ground terminal on 3-prong connectors must be properly grounded with grounding resistance at 100 ª or less. | |
| Temperature | : | Recommended temperature: 23±1°C | |
| Allowable range: 10°C to 35°C | |||
| Vibration | : | Horizontal vibration: 0.017 Gal max. (at 10 Hz or more) | |
| 0.01 μm max. (at less than 10 Hz) | |||
| Vertical vibration: 0 .010 Gal max. (at 10 Hz or more) | |||
| 0.005 μm max. (at less than 10 Hz) | |||
| Humidity | : | 80% max. (no condensation) | |
| Dimensions and Weight | External Dimensions | : | Tester: Approx. 355 (W) × 405 (D) × 530 (H) mm |
| Control unit: Approx. 315 (W) × 375 (D) × 110 (H) mm | |||
| Weight | : | Tester: Approx. 60 kg | |
| Control unit: Approx. 5 kg |

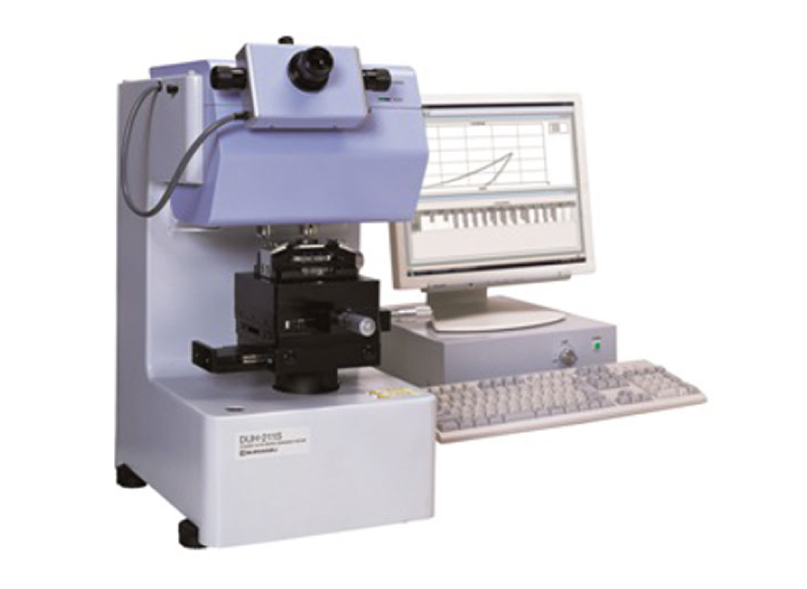

DUH-211S
Specifications
| Loading Unit | Loading Method | : | Electromagnetic coil |
| Test Force Range | : | Full scale of 0.1 to 1,961 mN | |
| Test Force Accuracy | : | ±19.6 μN or ±1% of displayed test force, whichever is greater | |
| Minimum Measurement Increment | : | 0.196 μN (for a test force not exceeding 1.96 mN) | |
| Displacement Measurement Unit |
Measurement Method | : | Differential transformer |
| Measurement Range | : | 0 to 10 μm | |
| Minimum Measurement Increment | : | 0.0001 μm | |
| Linearity | : | ±2% of full scale (20 μm) | |
| Indenter | Type | : | Triangular pyramid indenter with tip angle of 115° (Vickers indenter and Knoop indenter are available as options.) |
| Tip Radius | : | 0.1 μm max. | |
| Optical Monitor | Total Magnication (microscope) | : | ×500 |
| Objective Lens | : | ×50 (Up to 2 lenses can be attached.) | |
| Eyepiece | : | ×10 | |
| Lighting Method | : | Reected illumination | |
| Light Source (lamp) | : | LED: 3 W, 3 V | |
| Light-Path Switching | : | Observation or photograph (selectable) | |
| Micrometer | Collimation Method | : | Direct connection between encoder and control handle; synchronized movement of two indexes |
| Detector | : | Optical encoder | |
| Effective Measurement Range | : | 200 μm (with ×50 objective lens) | |
| Minimum Measurement Increment | : | 0.01 μm/pulse | |
| Specimen Stage | Vertical Distance | : | Approx. 60 mm |
| Area | : | Approx. 125 (W) × 125 (L) mm | |
| Stage Movement Range | : | 25 mm in both X and Y directions | |
| Specimen Holder | : | Specimen dimensions (i.e., 8 (thickness) × 30 (width) mm) when thin-type attachment (type 3) is used | |
| Test Modes | : | Load–Hold Test | |
| Load–Unload Test | |||
| Cyclic Test | |||
| Depth Setting Test | |||
| Depth Setting Load–Unload Test | |||
| Step Load Test | |||
| Step Load-Unload Test | |||
| Required PC | OS | : | Windows® 7 (32/64 bit edition) |
| Specications | CPU | : | 1 GHz min. |
| Disk Drives | : | CD-ROM drive | |
| Display Resolution | : | 1024 × 768 min. | |
| Expansion Bus | : | PCI Express ×1, 2 slots min. more than one ×1 slot is reguired (or slot size ×2 or more) | |
| Utilities | Power Supply | : | Single phase, AC 100–115 V ± 10%, AC 230 V ± 10% (Ground resistance 100 ª max.) |
| Power Consumption | : | Approx. 100 W (not including power consumption of PC) | |
| Grounding | : | The ground terminal on 3-prong connectors must be properly grounded with grounding resistance at 100 ª or less. | |
| Temperature | : | Recommended temperature: 23±1°C | |
| Allowable range: 10°C to 35°C | |||
| Vibration | : | Horizontal vibration: 0.017 Gal max. (at 10 Hz or more) | |
| 0.01 μm max. (at less than 10 Hz) | |||
| Vertical vibration: 0 .010 Gal max. (at 10 Hz or more) | |||
| 0.005 μm max. (at less than 10 Hz) | |||
| Humidity | : | 80% max. (no condensation) | |
| Dimensions and Weight | External Dimensions | : | Tester: Approx. 355 (W) × 405 (D) × 530 (H) mm |
| Control unit: Approx. 315 (W) × 375 (D) × 110 (H) mm | |||
| Weight | : | Tester: Approx. 60 kg | |
| Control unit: Approx. 5 kg |
