SMX-225CT
Produk / Shimadzu Non Destructive Testing / CT System / SMX-225CT

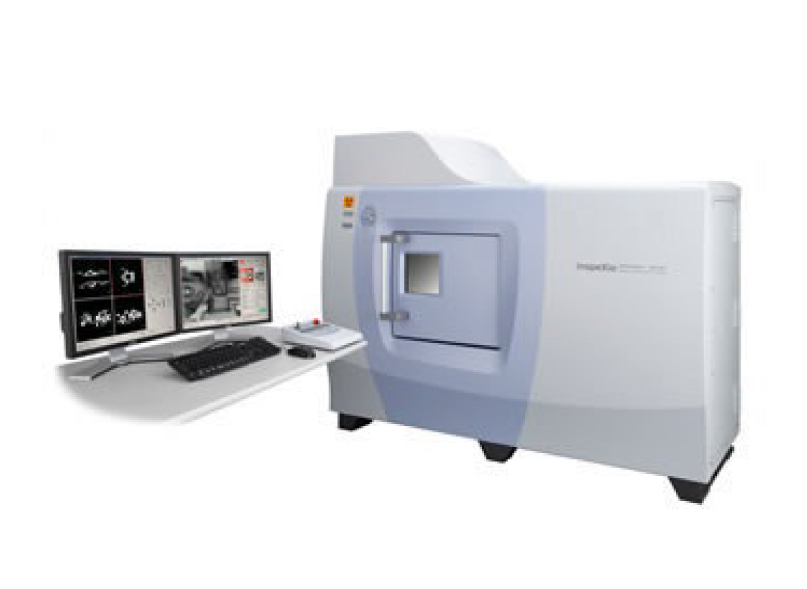

inspeXio SMX-225CT FPD
Specifications
| X-Ray Generator | Rated Power | : | 135 W | |
| Max. Tube Voltage | : | 225 kV | ||
| Max. Tube Current | : | 1000 μA | ||
| X-Ray Detector | : | Flat panel detector | ||
| X-Ray Detector Size | : | 8 inch | ||
| X-Ray Detector Shades of Gray | : | 14-bit = 16,384 shades of gray | ||
| Max. Input Resolution (for offset scan) | : | Approx. 1,800,000 pixels | ||

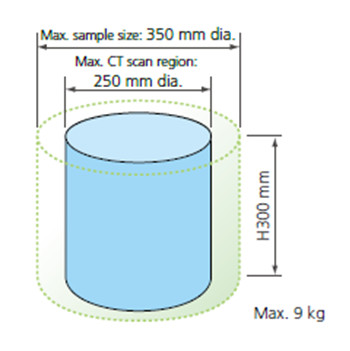

| Max. Sample Size and Weight, and Max. CT-Scan Region | : |
|
||
| Max. CT Image Size | Two-Dimensional CT | : | 4,096 × 4,096 | |
| Cone-Beam CT | : | 2,048 × 2,048 | ||
| High-Performance Computing System |
Version | : | HPC inspeXio | |
| For 512 × 512 pixel CT images | : | 5 to 10 sec after completing data acquisition | ||
| For 1,024 × 1,024 pixel CT images | : | Approx. 540 sec after completing data acquisition | ||
| Scan Support Functions |
Positioning via an exterior camera | : | Yes | |
| 3D CT Scan Region Display Function | : | Yes | ||
| Fully Automatic CT Scanning | : | No | ||
| CT Stage Max. Stroke |
SRD Axis*1 | : | 690 mm | |
| SDD Axis*2 | : | Switchable between 4 levels (400, 600, 800, 1000) |
||
| CT-Z Axis | : | 300 mm | ||
| Scan Modes | : | Normal scan, half scan, offset scan, FS scan, 2DCT, CBCT | ||
| CT Data Acquisition Time | : | Any value from 10 sec to 30 min | ||
| Shield Box Size and Mass | : | W2,170 × D1,350 × H1,857 mm, approx. 3,100 kg | ||
| Specialized Desk Size and Mass | : | W1,200 × D700 × H1,270 mm, approx. 50 kg | ||
| Power Requirements | Main Unit | : | 200 V AC ±10 %, 50/60 Hz, 3 kVA | |
| Control Computer | : | 100 V AC ±10 %, 50/60 Hz, 1 kVA | ||
| Ground | : | Type-D ground (100 ohm max. ground resistance) | ||
| External Leakage Dose | : | 1 μSv/h max. | ||
