Detil Produk

X-Ray Generator	:	Sealed tube type, Rated power: 20 W
		Max. tube voltage: 100 kV
		Max. tube current: 200 μA
X-Ray Detector	:	Image intensifier
Max. Stroke of CT Stage	:	SOD axis (1) : 540 mm SID axis (2) : Can be switched between 4 levels 200, 300, 500, and 700 mm Z axis: 150 mm
Max. Sample Size	:	180 mm dia. × H250 mm, 4 kg max.
Max. CT Scan Area (FOV)	:	90 mm dia. (for 2DCT: 115 mm dia.)
Scanning Methods	:	Normal scan, half scan, offset scan, FS scan (3) ,2DCT (4) /CBCT (*5)
CT Data Acquisition Time	:	Any value from 10 sec to 30 min
CT Image Sizes	:	512 × 512, 1024 × 1024, 2048 × 2048, 4096 × 4096
Dimensions and Weight of Shield Box	:	W1,613 × D841 × H1,450 mm, approx. 1,200 kg
Dimensions and Weight of Dedicated Desk	:	W1,200 × D700 × H1,270 mm, approx. 50 kg
Power Requirements	:	Main unit: 100 V AC ±10 %, 50/60 Hz, 1 kVA Control computer: 100 V AC ±10 %, 50/60 Hz, 1 kVA Class D grounding (max. ground resistance of 100 Ω)
X-Ray Leakage Rate	:	1 μSv/h max.

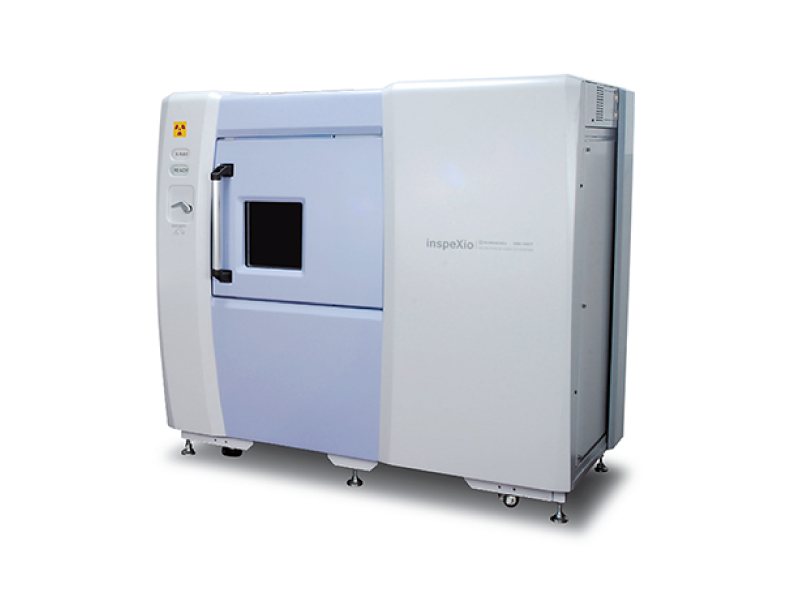

SMX-100CT
