Consumables Hot Mounting
| Descriptions | Part No. | Contents | ||||||||||
| ClaroFast | Clear transparent acrylic hot mounting resin. Thermoplastic. | 40100055 | 1 kg | |||||||||
| 40100054 | 7.5 kg | |||||||||||
| 40100053 | 25 kg | |||||||||||
| CitoFast | For soft materials or to reduce process time especially as backing material for LevoFast or DuroFast. | 40100068 | 1 kg | |||||||||
| 40100069 | 7.5 kg | |||||||||||
| ConduFast | Acrylic hot mounting resin with iron filler. Thermoplastic. | 40100039 | 1 kg | |||||||||
| DuroFast | Black epoxy hot mounting resin with mineral filler, for edge-retention and planeness of hard materials. Thermosetting. | 40100044 | 1 kg | |||||||||
| 40100045 | 7.5 kg | |||||||||||
| LevoFast | Light yellow melamine hot mounting resin with mineral and glass filler. Thermosetting. | 40100057 | 1 kg | |||||||||
| 40100058 | 7.5 kg | |||||||||||
| PolyFast | Black bakelite hot mounting resin with carbon filler. Thermosetting. | 40100036 | 1 kg | |||||||||
| 40100037 | 7.5 kg | |||||||||||
| MultiFast Black | Black bakelite hot mounting resin with wood filler. Thermosetting. | 40100064 | 2.5 kg | |||||||||
| 40100065 | 7.5 kg | |||||||||||
| 40100066 | 25 kg | |||||||||||
| 40100067 | 75 kg | |||||||||||
| MultiFast Green | Green bakelite hot mounting resin with wood filler. Thermosetting. | 40100078 | 2.5 kg | |||||||||
| 40100079 | 7.5 kg | |||||||||||
| 40100080 | 25 kg | |||||||||||
| 40100081 | 75 kg | |||||||||||
| MultiFast Red | Red bakelite hot mounting resin with wood filler. Thermosetting. | 40100074 | 2.5 kg | |||||||||
| 40100075 | 7.5 kg | |||||||||||
| 40100076 | 25 kg | |||||||||||
| 40100077 | 75 kg | |||||||||||
| AntiStick | Mould release agent. Stearate powder in applicator. | 40300043 | 8 g | |||||||||
Consumables Cold Mounting
| Descriptions | Part No. | Contents | ||||||||||
| ProntoFix | ||||||||||||
| ProntoFix Kit | Epoxy cold mounting system for mounting and preparing within the same day. Curing at room temperature. No shrinkage, especially suited for vacuum impregnation. Transparent. 1 l resin, 275 ml hardener and required consumables | 40200108*** | Kit | |||||||||
| ProntoFix Resin | To be mixed with ProntoFix Hardener. 1 l resin corresponds to 275 ml hardener. If curing time with the ProntoFix Hardener is too long the ProntoFix Accelerator can be added. 1.3 l Resin corresponds to 275 ml hardener plus 70 ml accelerator. | 40200109 | 1 L | |||||||||
| ProntoFix Hardener | To be mixed with ProntoFix Resin. 500 ml hardener corresponds to 1.8 l resin. | 40200110*** | 500 ml | |||||||||
| ProntoFix Accelerator | To be mixed with ProntoFix Resin and ProntoFix Hardener. To accelerate the ProntoFix system if curing time with the ProntoFix Hardener is too long. 70 ml accelerator must be mixed with 275 ml ProntoFix Hardener. The mixture corresponds to 1.3 l ProntoFix Resin. Empty bottle for premixing Hardener and Accelerator is available. | 40200111*** | 70 ml | |||||||||
| EpoFix | ||||||||||||
| EpoFix Kit | Epoxy cold mounting system curing at room temperature in about 12 hours, with no shrinkage, especially suited for vacuum impregnation. Transparent. 1 l resin, 130 ml hardener and required consumables | 40200029*** | Kit | |||||||||
| EpoFix Resin | To be mixed with EpoFix Hardener. 1 l resin corresponds to 130 ml hardener. | 40200030 | 1 L | |||||||||
| EpoFix Hardener | To be mixed with EpoFix Resin. 500 ml hardener corresponds to 4 l resin. | 40200031*** | 500 ml | |||||||||
| SpeciFix | ||||||||||||
| SpeciFix-40 Kit | Epoxy cold mounting system curing at elevated temperature (40-60 °C) in about 3.5 hours, with very low shrinkage, suitable for vacuum impregnation. Transparent. 1 l resin, 500 ml curing agent and required consumables | 40200049*** | Kit | |||||||||
| SpeciFix Resin | To be mixed with SpeciFix-40 Curing Agent. 1 l resin corresponds to 500 ml SpeciFix-40 Curing Agent. | 40200051 | 1 L | |||||||||
| SpeciFix-40 Curing Agent | To be mixed with SpeciFix Resin. 1 l curing agent corresponds to 2 l resin. | 40200053*** | 1 L | |||||||||
| CaldoFix | ||||||||||||
| CaldoFix-2 Kit | Epoxy cold mounting system, curing within 1½ hours when heated to 75 °C / 167 °F. Very low shrinkage, suitable for vacuum impregnation. Transparent. 1 l resin, 325 ml hardener and required consumables | 40200084*** | Kit | |||||||||
| CaldoFix-2 Resin | be mixed with CaldoFix-2 Hardener. 1 l resin corresponds to 325 ml hardener. | 40200085 | 1 L | |||||||||
| CaldoFix-2 Hardener | To be mixed with CaldoFix-2 Resin. 500 ml hardener corresponds to 1.5 liter resin. | 40200086*** | 500 ml | |||||||||
| ClaroCit | ||||||||||||
| ClaroCit Kit | Acrylic cold mounting system for universal use. Provides extremely clear, transparent mounts (especially when cured under pressure). 800 g powder, 500 ml liquid and required consumables | 40200072*** | Kit | |||||||||
| ClaroCit Powder | To be mixed with ClaroCit liquid. 3 kg powder corresponds to 1.9 l liquid. | 40200074 | 3 kg | |||||||||
| ClaroCit Liquid | To be mixed with ClaroCit Powder. 1 l liquid corresponds to 1.6 kg powder. | 40200073*** | 1 L | |||||||||
| DuroCit | ||||||||||||
| DuroCit-3 Kit | Acrylic cold mounting system with mineral filler. For excellent edge-retention. 570 g powder, 300 ml liquid I, 150 ml liquid II and required consumables | 40200095*** | Kit | |||||||||
| DuroCit Powder | To be mixed with DuroCit Liquid I and II. 3 kg Powder corresponds to 1.6 l Liquid I and 0.8 l Liquid II | 40200081 | 3 kg | |||||||||
| DuroCit-3 Liquid I | To be mixed with DuroCit Powder and DuroCit-3 Liquid II. 1 l Liquid I corresponds to 1.9 kg powder and 0.5 l Liquid II. | 40200096*** | 1 L | |||||||||
| DuroCit-3 Liquid II | To be mixed with DuroCit Powder and DuroCit-3 Liquid I. 1 l Liquid II corresponds to 3.8 kg powder and 2 l Liquid I. | 40200097*** | 1 L | |||||||||
| LevoCit | ||||||||||||

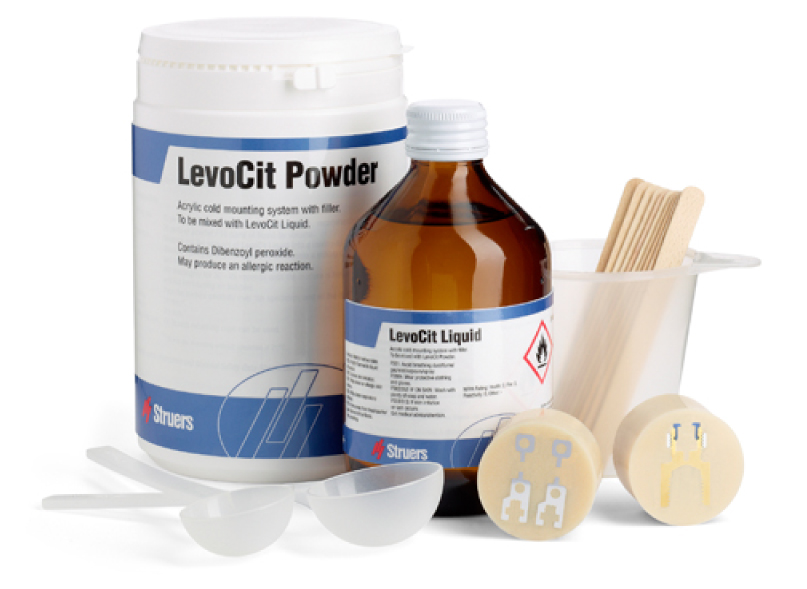

| LevoCit Kit | Acrylic cold mounting resin with filler optimised for non-ferrous and soft ferrous metals. 600 g powder, 300 ml liquid and required consumables | 40200092*** | Kit | |||||||||
| LevoCit Powder | To be mixed with LevoCit Liquid. 3 kg powder corresponds to 1.5 l Liquid. | 40200093 | 3 kg | |||||||||
| LevoCit Liquid | To be mixed with LevoCit Powder. 1 l liquid corresponds to 2 kg powder. | 40200094*** | 1 L | |||||||||
| VersoCit-2 | ||||||||||||
| VersoCit-2 Kit | Acrylic cold mounting system for routine examination of soft to medium hard materials. 750 g powder, 500 ml liquid and required consumables | 40200089 | Kit | |||||||||
| VersoCit-2 Powder | To be mixed with VersoCit-2 Liquid. 3 kg powder corresponds to 2 l liquid. | 40200090 | 3 kg | |||||||||
| VersoCit-2 Liquid | To be mixed with VersoCit-2 Powder. 1 l liquid corresponds to 1.5 kg powder. | 40200091 | 1 L | |||||||||
| ViaFix | ||||||||||||
| ViaFix Kit | Acrylic cold mounting system for filling of microvias and pores. The clearest mount is obtained by using a pressure chamber. 570 g powder, 500 ml liquid and required consumables | 40200067*** | Kit | |||||||||
| ViaFix Powder | To be mixed with ViaFix Liquid. 2.5 kg powder corresponds to 2.3 l liquid. | 40200068 | 2.5 kg | |||||||||
| ViaFix Liquid | To be mixed with ViaFix Powder. 1 l liquid corresponds to 1.1 kg powder. | 40200069*** | 1 L | |||||||||
Cold Mounting Accessories
| Descriptions | Part No. | Contents | ||||||||||
| Fixiform | ||||||||||||
| 25 mm / 1" dia. 10 pcs. | Two part polypropylene mounting cup for all Struers cold mounting materials. | 40300085 | Pack | |||||||||
| 30 mm dia. 10 pcs. | 40300086 | Pack | ||||||||||
| 1¼" dia. 10 pcs. | 40300087 | Pack | ||||||||||
| 1½" dia. 10 pcs. | 40300088 | Pack | ||||||||||
| 40 mm dia. 10 pcs. | 40300089 | Pack | ||||||||||
| 50 mm / 2" dia. 10 pcs. | 40300090 | Pack | ||||||||||
| Flexiform | ||||||||||||
| 25 mm dia. 5 pcs. | Flexible silicone rubber mounting cup for ClaroCit, DuroCit, VersoCit-2, LevoCit and ViaFix. | 40300018 | Pack | |||||||||
| 30 mm dia. 5 pcs. | 40300019 | Pack | ||||||||||
| 1¼" dia. 5 pcs. | 40300020 | Pack | ||||||||||
| 1½" dia. 5 pcs. | 40300021 | Pack | ||||||||||
| 40 mm dia. 5 pcs. | 40300092 | Pack | ||||||||||
| Flexiform | ||||||||||||
| 68 x 37 x 35 mm. 3 pcs. | Silicone rubber mounting cup for mounting to be used especially with acrylic cold mounting resins with which it can be reused many times. It can also be used with epoxy resins. Mounts fit to specimen holder MAXDI, 02606920. | 40300082 | Pack | |||||||||
| 90 x 50 x 35 mm. 3 pcs. | Silicone rubber mounting cup for mounting to be used especially with acrylic cold mounting resins with which it can be reused many times. It can also be used with epoxy resins. Mounts fit to specimen holder MAXOT, 02606922. | 40300083 | Pack | |||||||||
| 120 x 60 x 45 mm. 2 pcs. | Silicone rubber mounting cup for mounting to be used especially with acrylic cold mounting resins with which it can be can be reused many times. It can also be used with epoxy resins. | 40300084 | Pack | |||||||||
| Seriform | ||||||||||||
| 25 mm dia. 10 pcs. | Two parts polypropylene mounting cup with parallel sides for ClaroCit, VersoCit-2 and ViaFix. | 40300007 | Pack | |||||||||
| 30 mm dia. 10 pcs. | 40300008 | Pack | ||||||||||
| 40 mm dia. 5 pcs. | 40300009 | Pack | ||||||||||
Others
| Descriptions | Part No. | Contents | ||||||||||
| Flangeform | Mounting cup with flange. For AccuStop 30. 30 mm dia. 3 pcs. | 40300012 | Pack | |||||||||
| PCB-Coupon Mould | Mould for mounting PCB-coupons. Consists of a hard part and a soft part (40300024). 1 pcs. | 40300023 | Pack | |||||||||
| Mould for mounting PCB-coupons. Replacement soft part for 40300023. 1 pcs. | 40300024 | Pack | ||||||||||
| MultiClips | Multiple plastic clip for holding up to 5 small and thin specimens when mounting. 50 pcs. | 40300027 | Pack | |||||||||
| Fixation Clips | Metal spring clip for holding small and thin specimens when mounting. 6 mm dia. 100 pcs. | 40300026 | Pack | |||||||||
| Metal spring clip for holding small and thin specimens when mounting. 9 mm dia. 100 pcs. | 40300025 | Pack | ||||||||||
| Taper Section Angle, Aluminum | Aluminum angle for mounting of taper sections. 50pcs | 40300070 | Pack | |||||||||
| Taper Section Angle, Copper | Copper angle for mounting of taper sections. 50 pcs. | 40300071 | Pack | |||||||||
| Taper Section Angle, Steel | Steel angle for mounting of taper sections. 50 pcs. | 40300069 | Pack | |||||||||
| ProntoFix Empty Bottle | Empty bottle for premixing ProntoFix Hardener and ProntoFix Accelerator. 1 bottle 500 ml, 1 label | 40300091 | Pcs | |||||||||
| Consumables Kit | Disposable consumables for CitoVac. 100 dispensing tubes and one chamber protector | 40300080 | Pack | |||||||||
| Consumables for Epovac | 80 polyethylene tubes, 80 mixing cups, 80 stirrers and 2 rubber plugs | 40300030 | Pack | |||||||||
| For mixing of cold mounting systems. | 400 mixing cups and 400 stirrers | 40300032 | Pack | |||||||||
| Mixer for mixing of Epoxy | For optimal mixing of cold mounting epoxies. 1 mixer and 1 disposable propeller | 05696101 | Set | |||||||||
| Disposable Propeller | To be used with Struers Mixer (05696101). 20 pcs. | 40300072 | Pack | |||||||||
| AcryDye | Dye for colouring of acrylic cold mounting resins: ClaroCit, DuroCit, VersoCit-2 and ViaFix. Set with 20 ml of each red, blue and yellow dye | 40300081 | ||||||||||
| Disposable Syringes | Syringes for measuring of epoxy resins and hardeners. 5 ml. 100 pcs. | 40300047 | Pack | |||||||||
| Syringes for measuring of epoxy resins and hardeners. 10 ml. 100 pcs. | 40300048 | Pack | ||||||||||
| Syringes for measuring of epoxy resins and hardeners. 20 ml. 50 pcs. | 40300049 | Pack | ||||||||||
| EpoDye | Fluorescent dye for use with EpoFix, ProntoFix, SpeciFix, CaldoFix, ClaroCit and ViaFix. Special filters for microscope required.Mixing ratio: Epoxy resin: 1 LEpoDye: 5 g.20 g | 40300002 | Pack | |||||||||
| Silicone Oil | Silicone release agent. 100 ml | 40300076 | Pack | |||||||||
